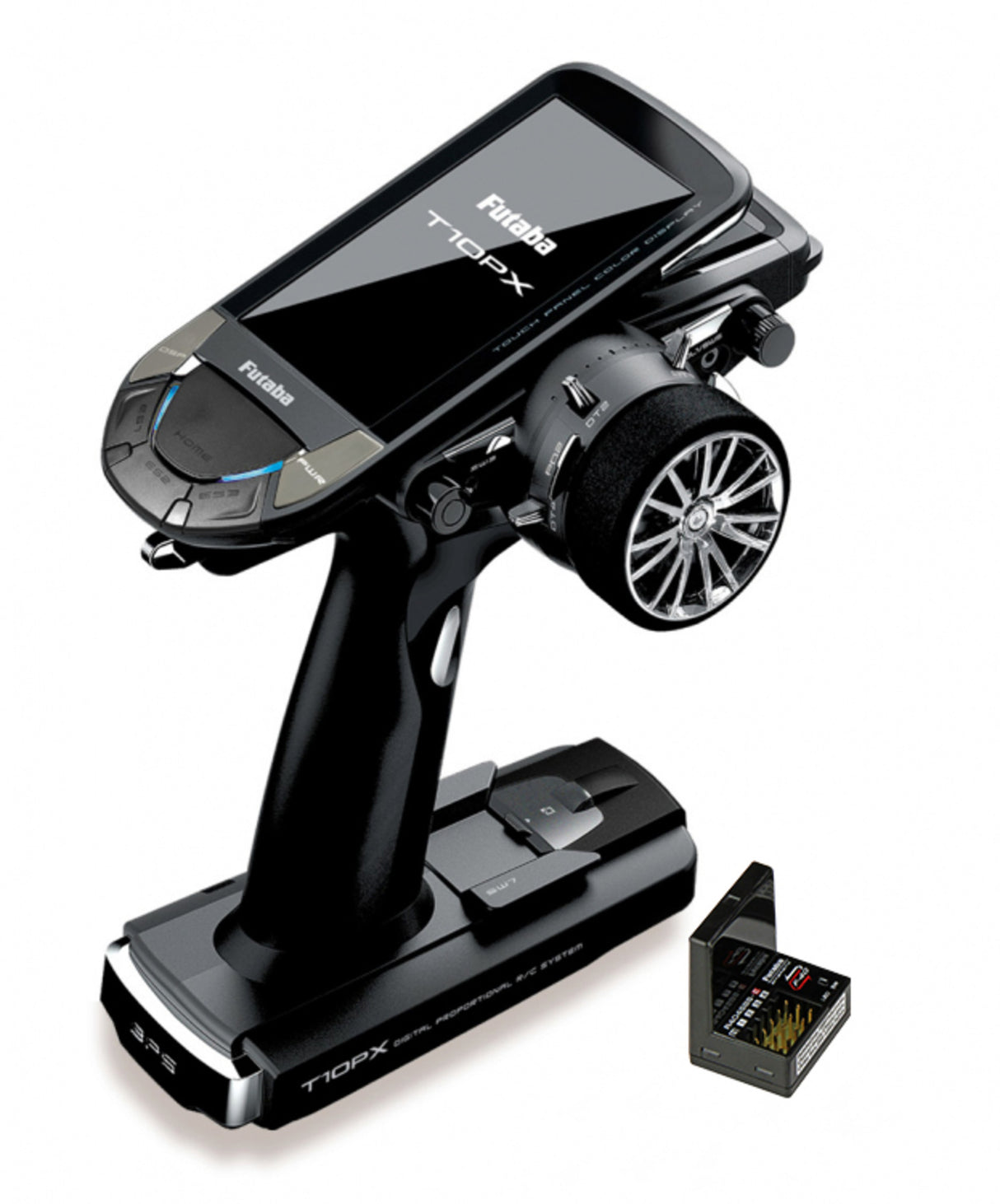

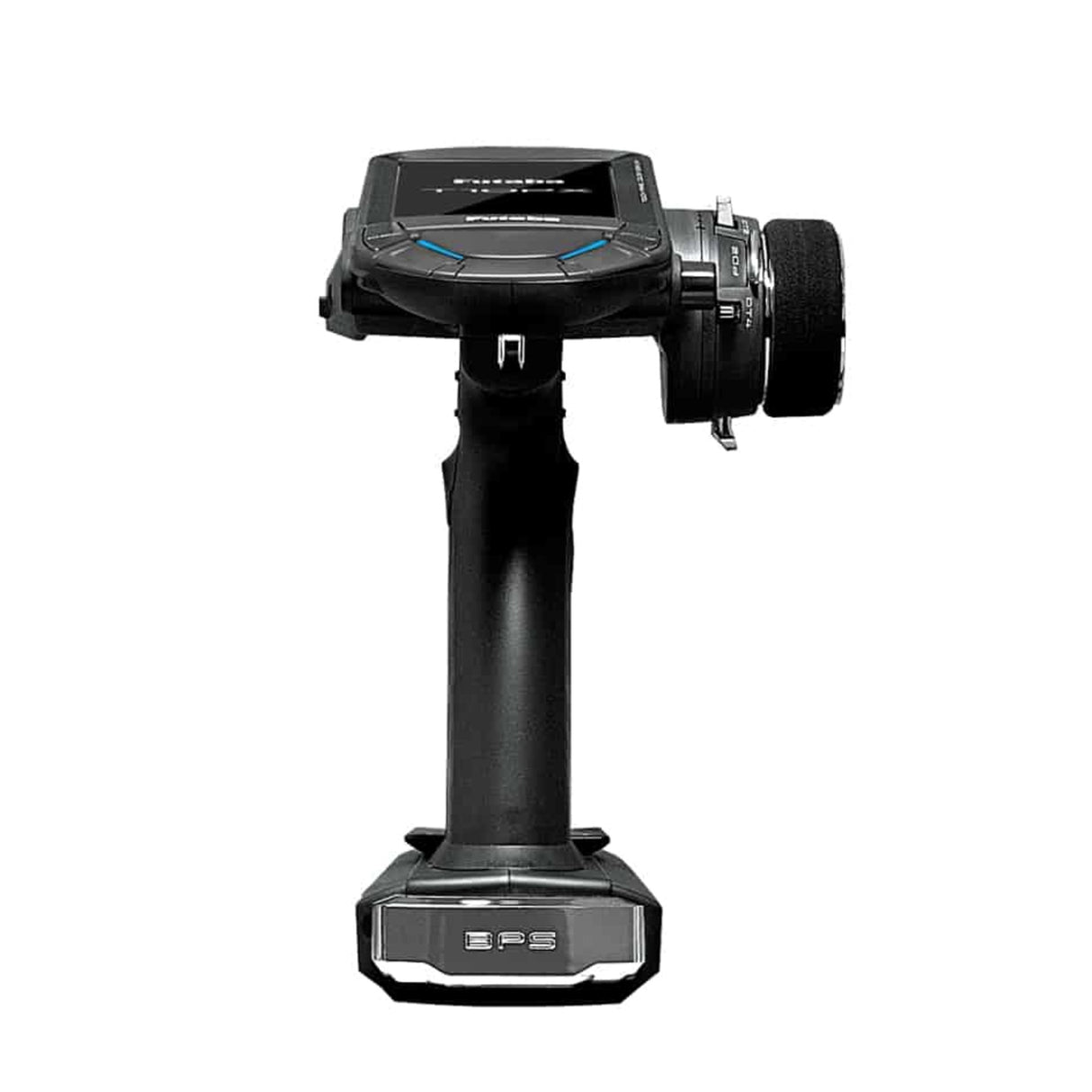

T10PX 10-Channel Surface Radio with R404SBSE Rx

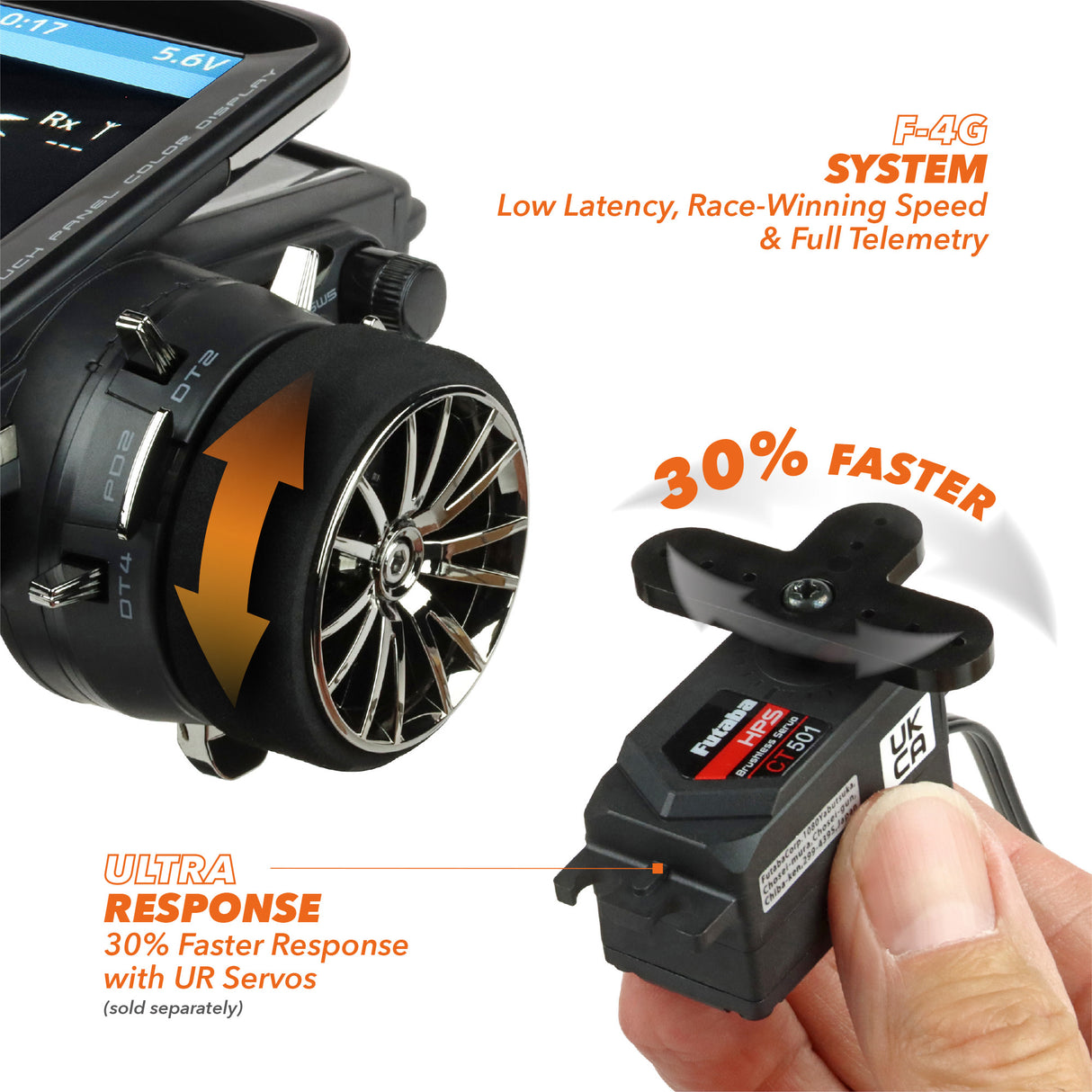

This top of the range competition steerwheel set has no less than 10 channels, expandable 40 model memories, full colour TFT-LCD wide angle touchscreen and a whole lot more. It includes S-FHSS, T-FHSS, T-FHSS SR, Mini-Z and Futaba's new F-4G ultra fast response transmission modes and is supplied with an R404SBS F-4G telemetry receiver.

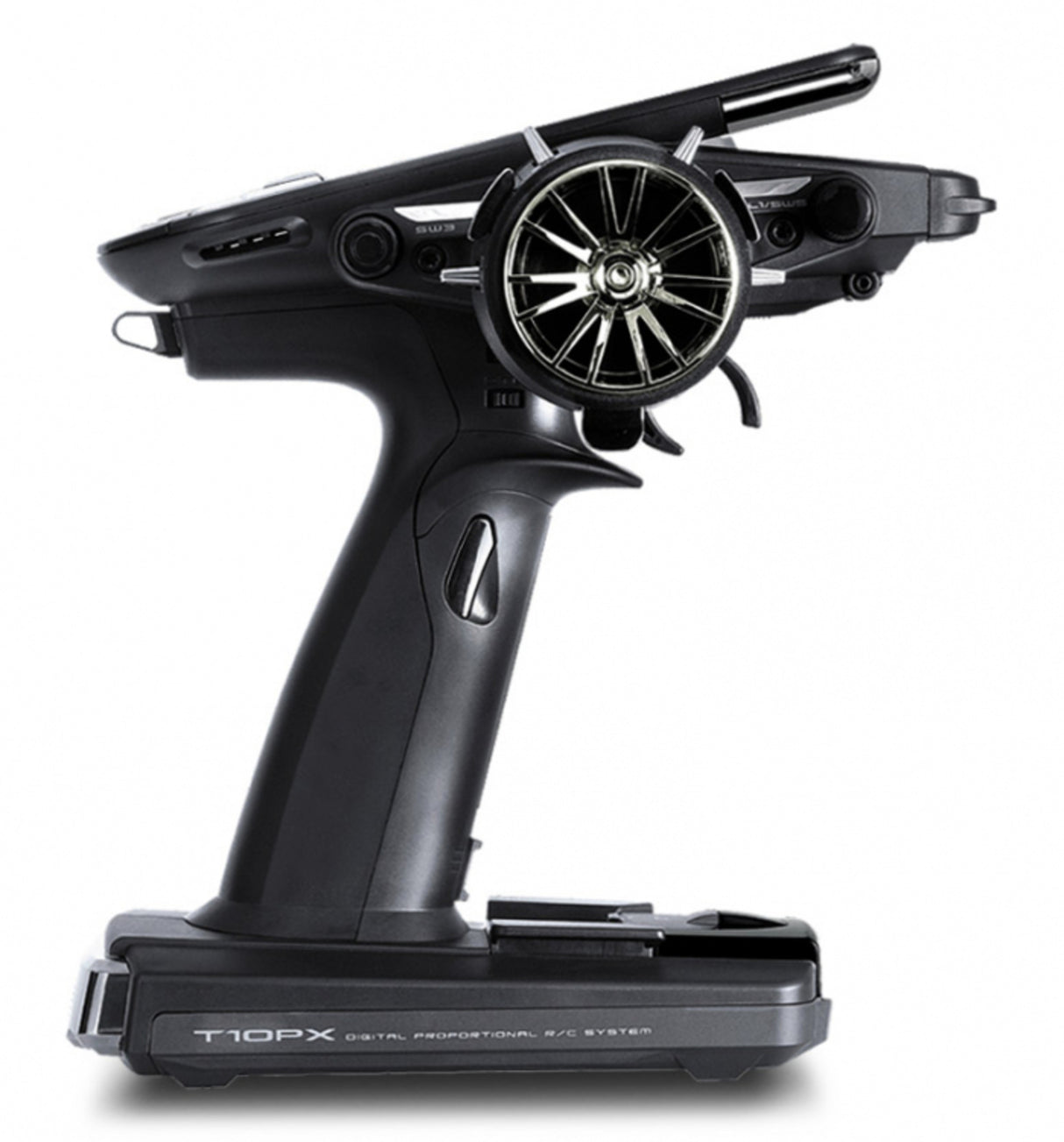

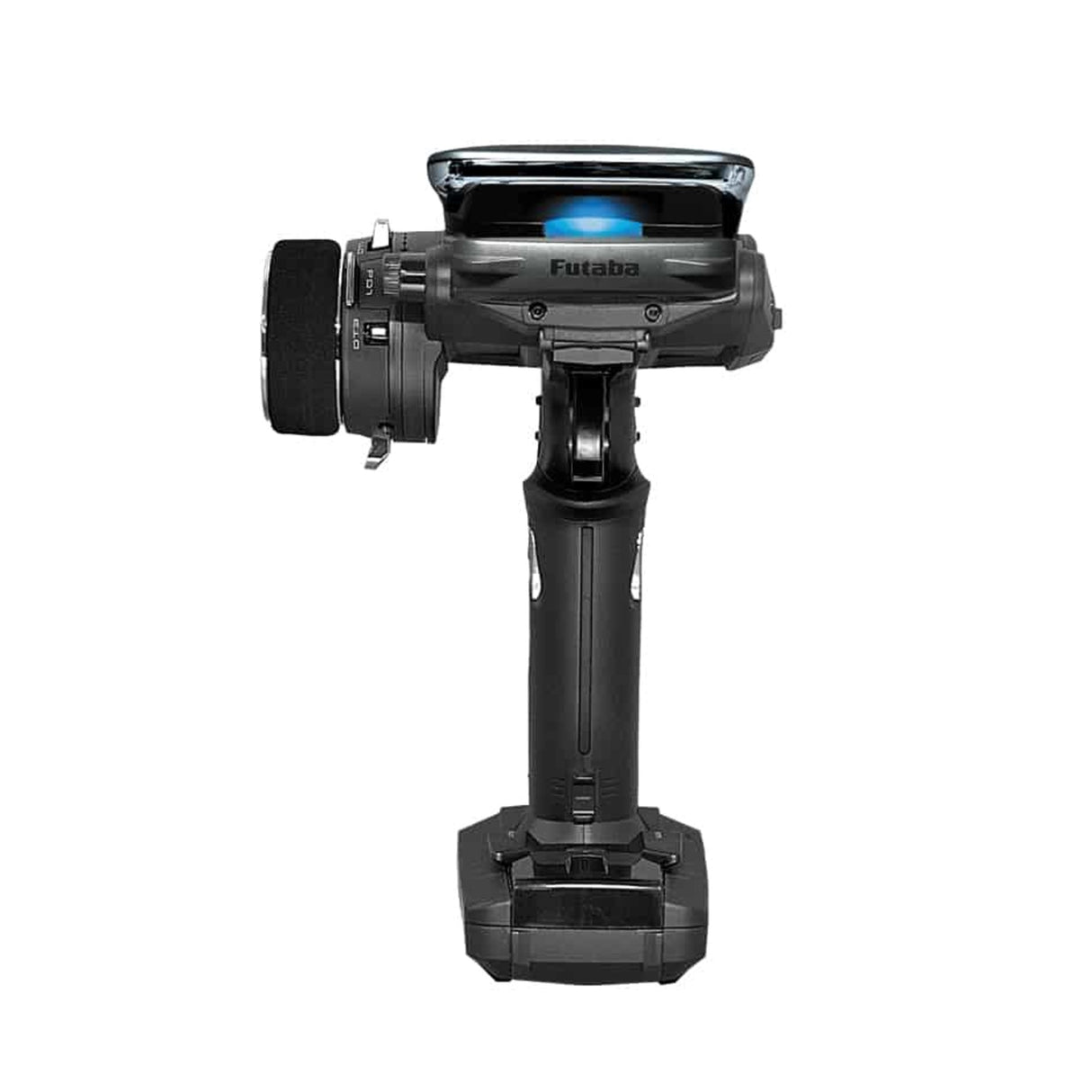

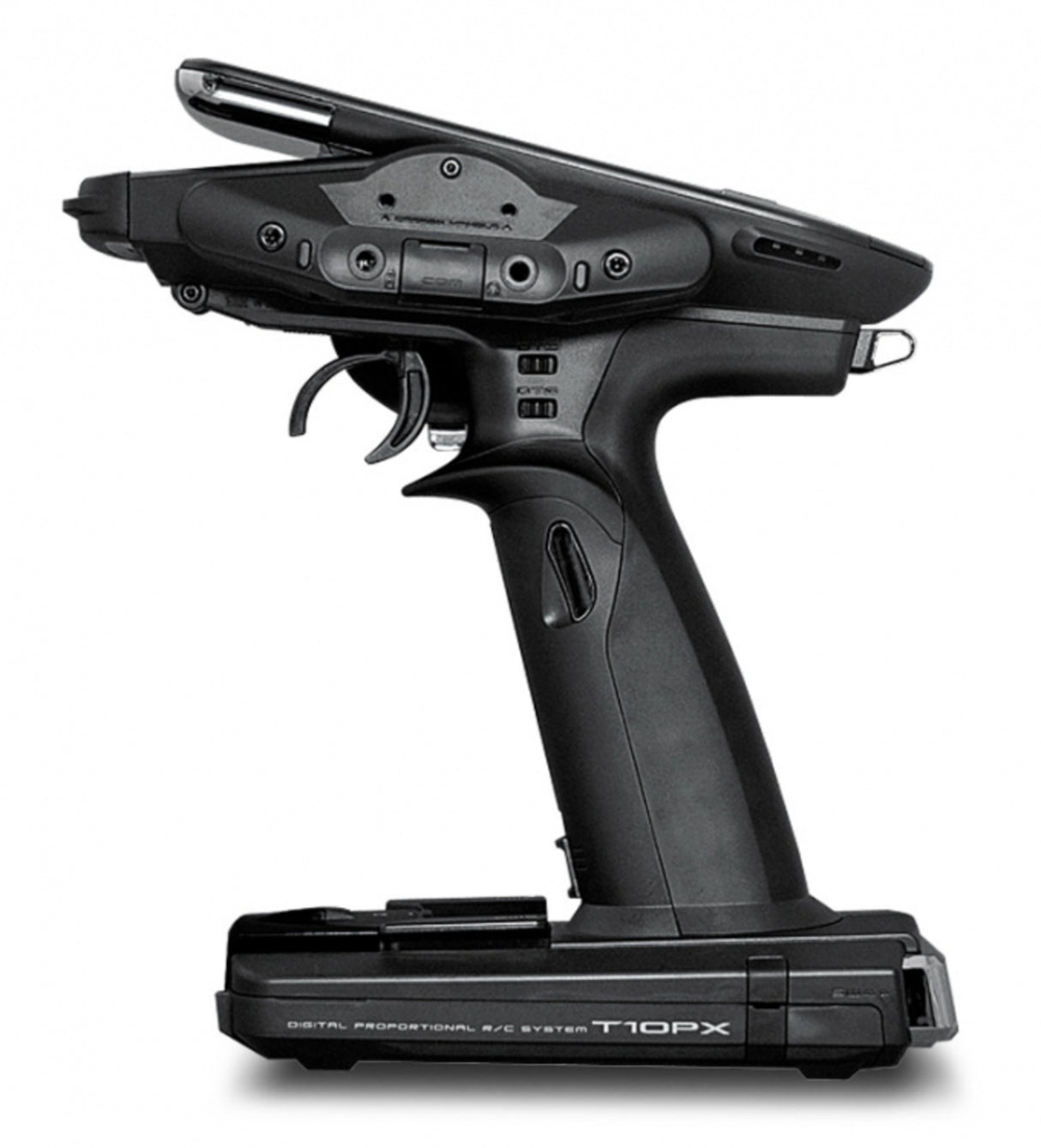

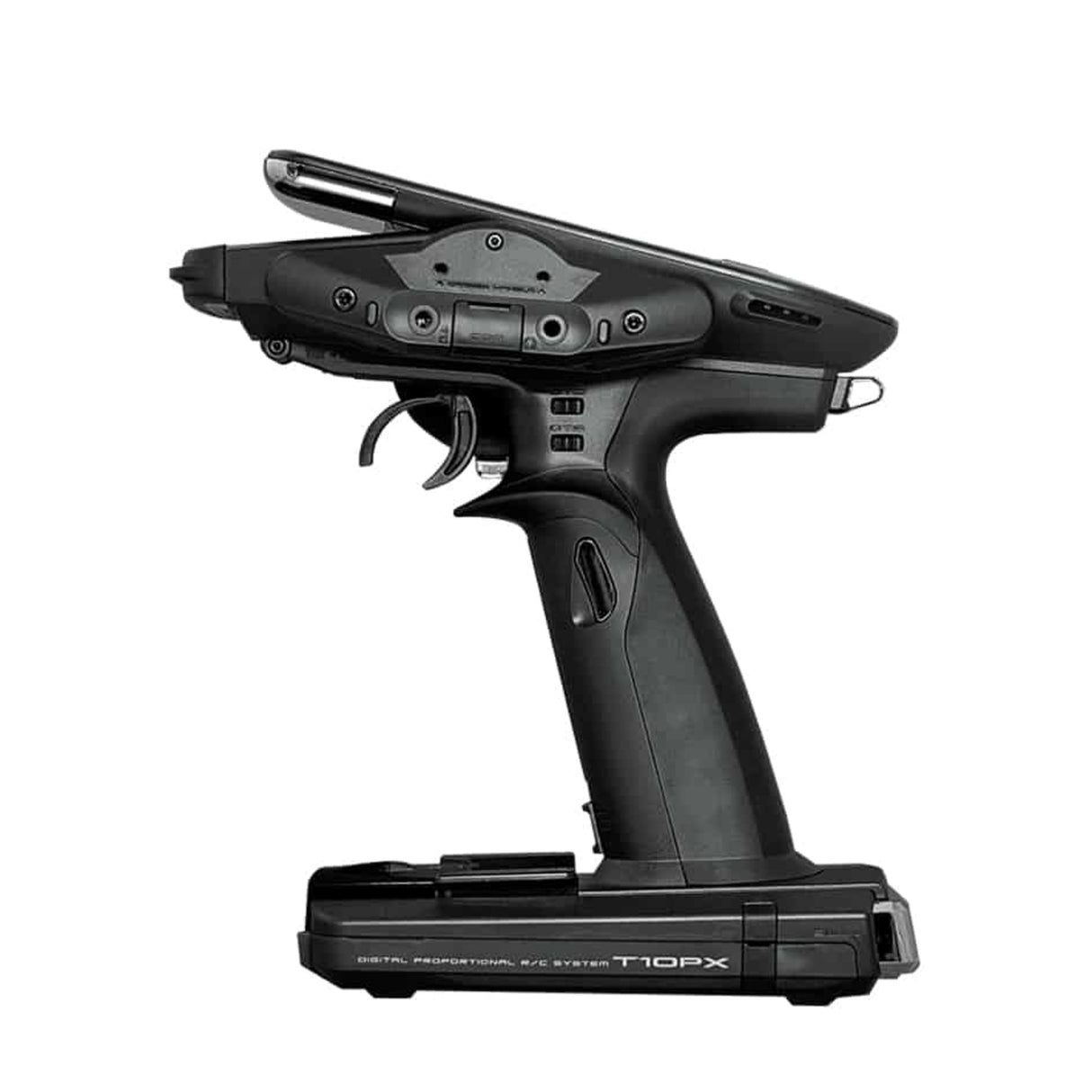

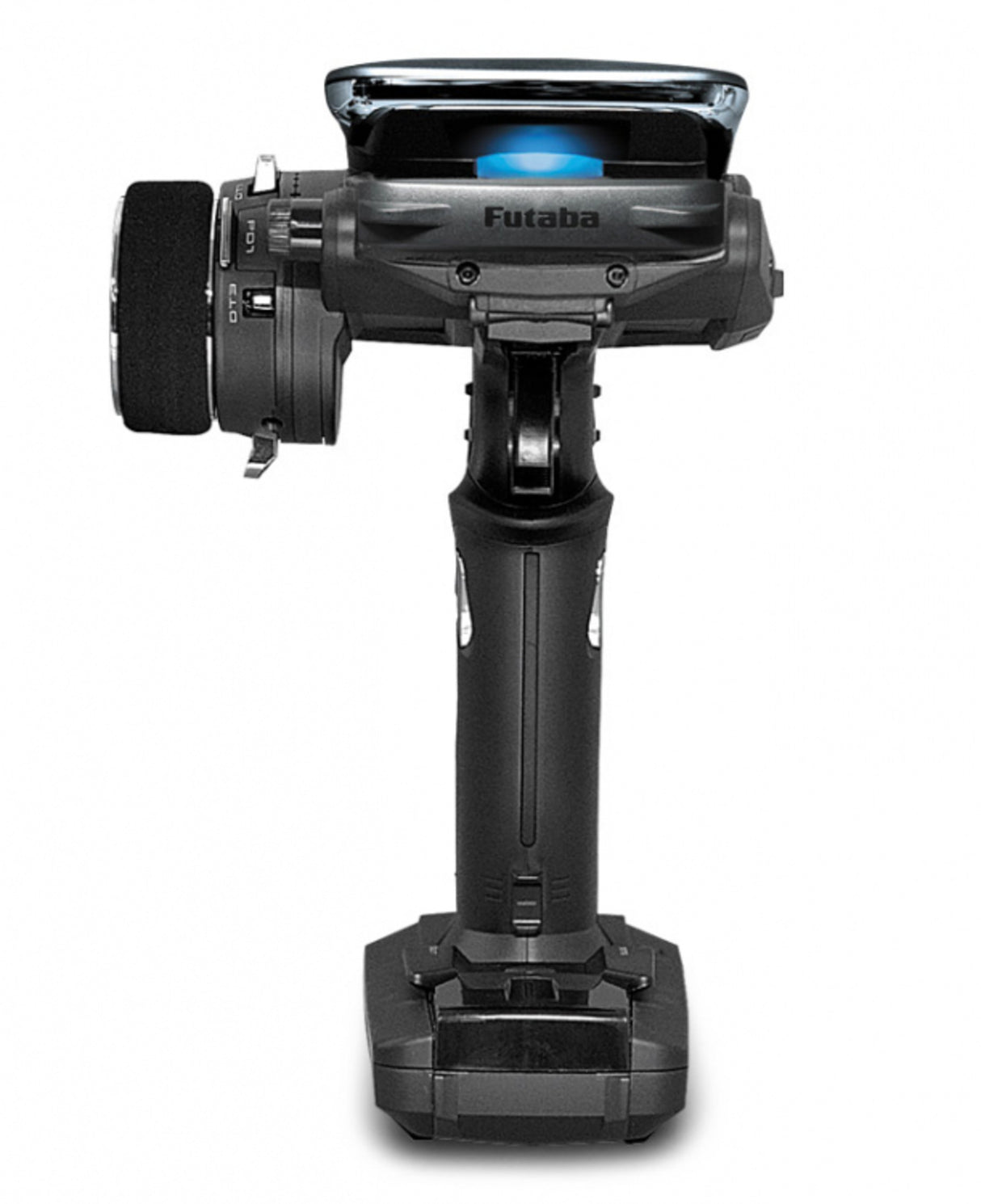

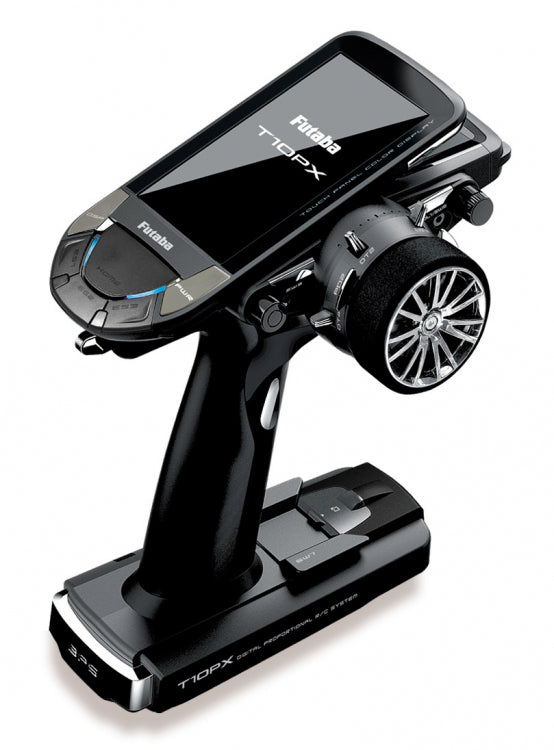

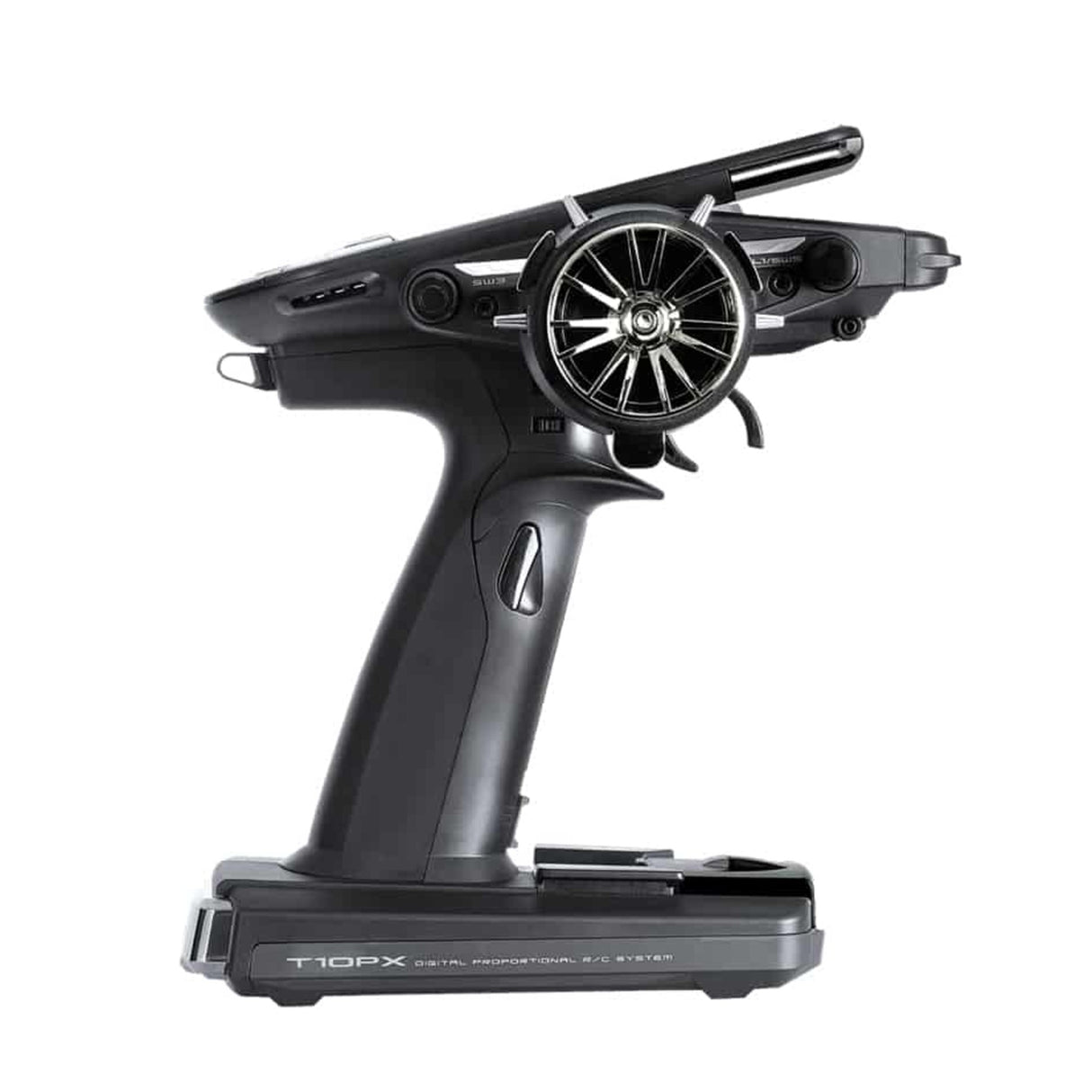

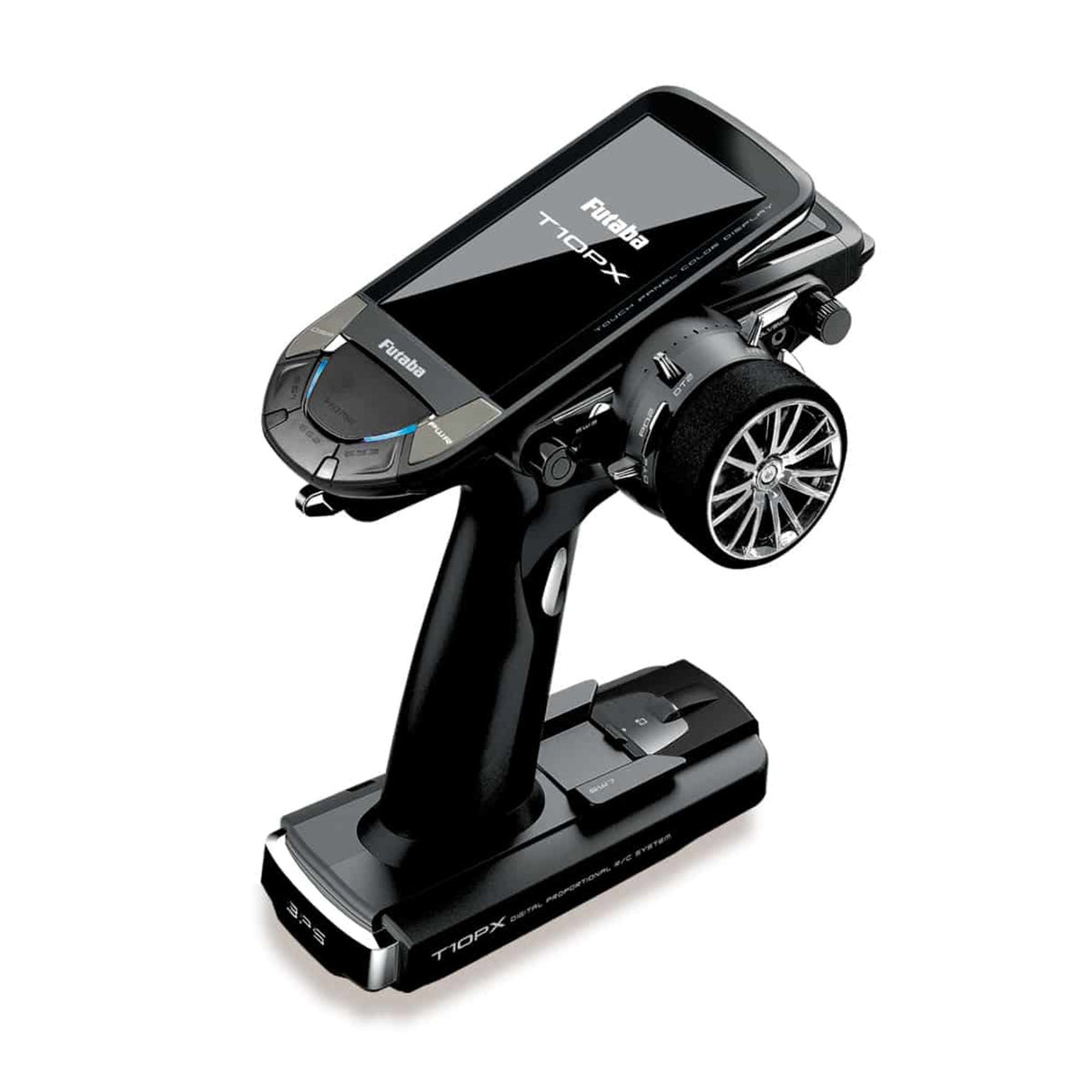

10PX Transmitter – Super Response Digital Proportional RC System

10PX Transmitter Specs

Wheel System, 10 Channels (F-4G System), 4 Channels with TFHSS-SR system

Transmitting Frequencies:
2.4 GHz band/ -Transmitting RF poweroutput: 100mW EIRP

Protocols:
T-FHSS-SR/T-FHSS/S/F-4G

Power Requirement:
LiPo – NLF2F2000B (7.4 V)
LiFe –FT2F1700BV2 (6.6 V

Current Drain:
350 mA or less (When the T-FHSS, Vibration off,back lighting on)

Transmitting Antenna:
1/2λ dipole

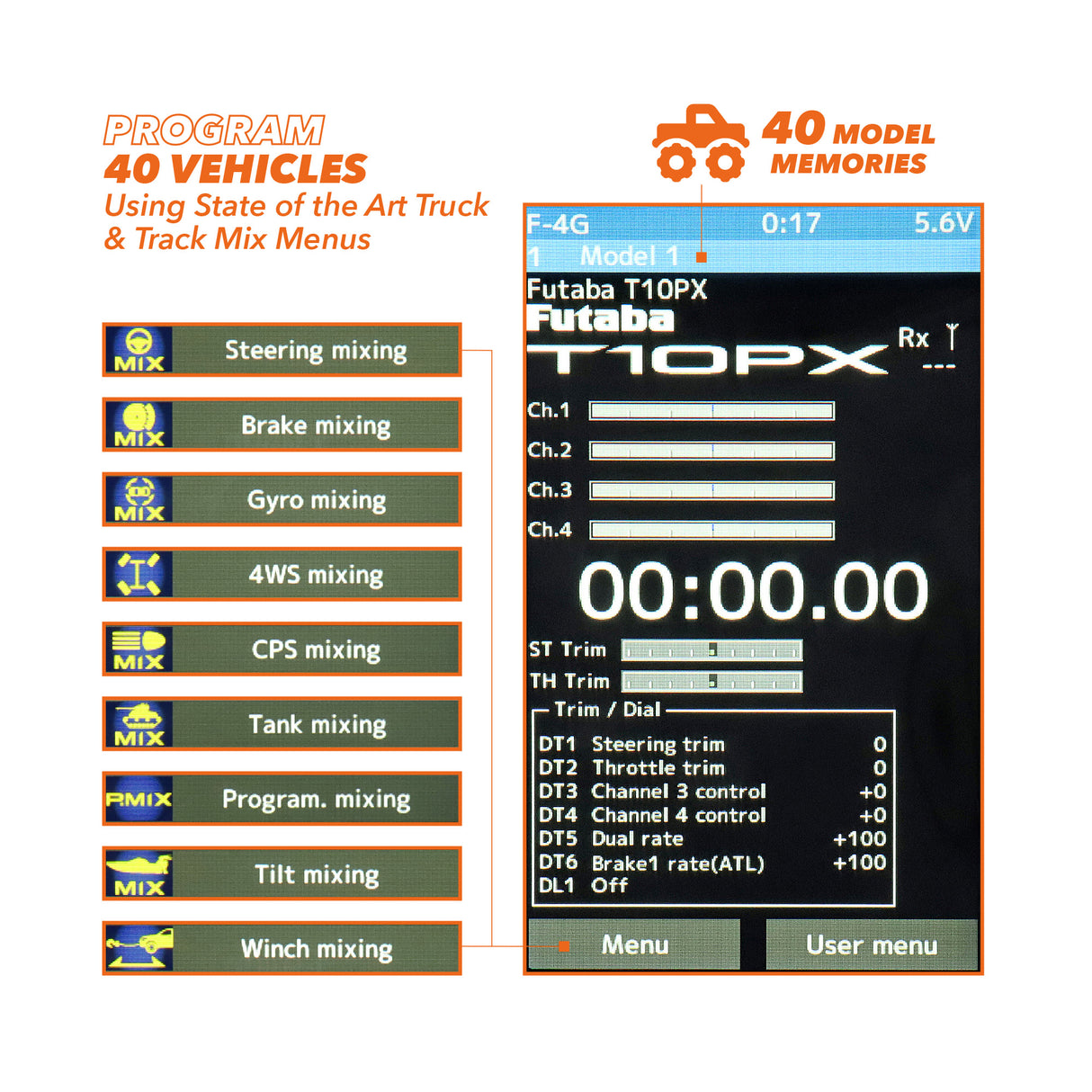

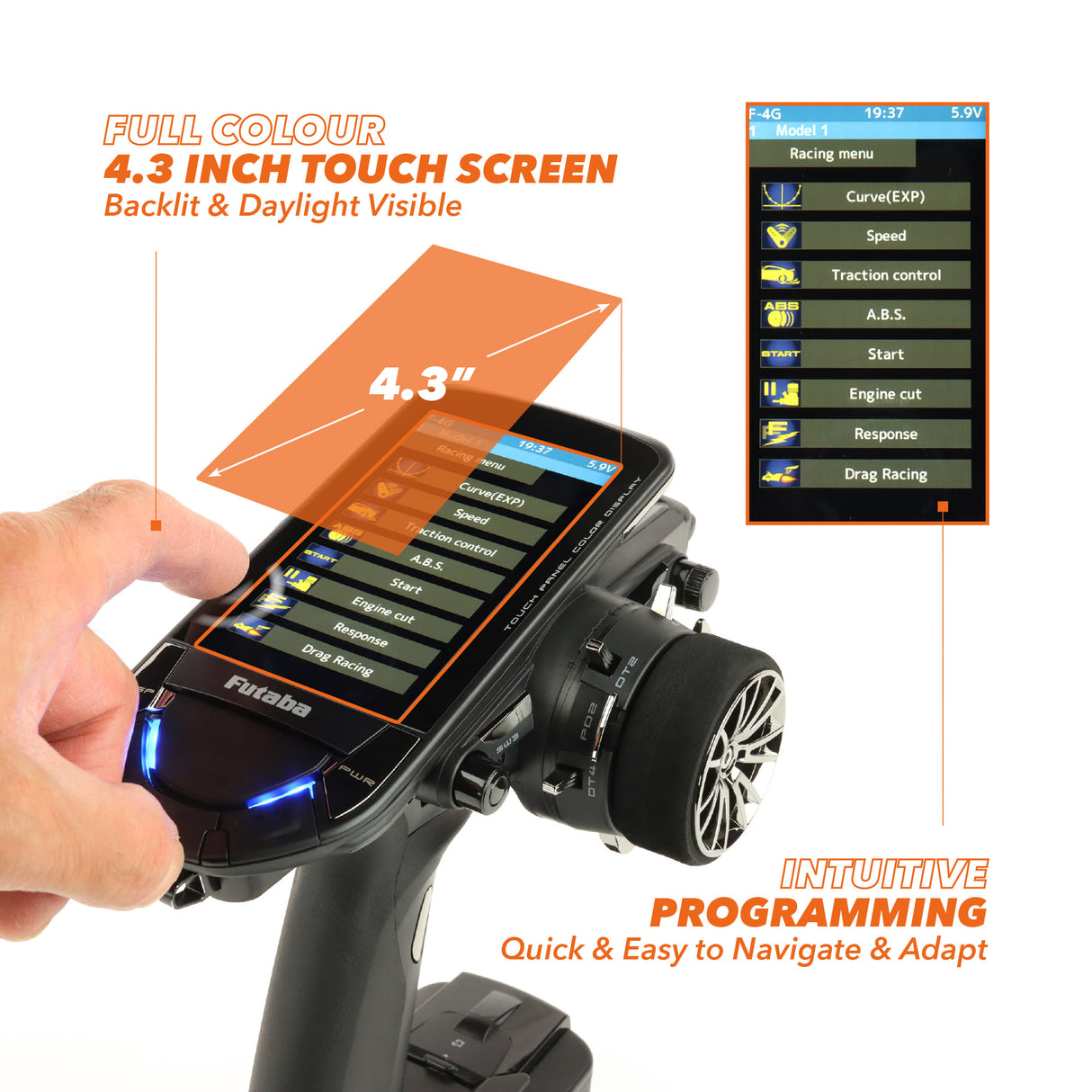

4.3 Inch Backlit Colour TFT Liquid Crystal Touch Panel*
*Whenyou turn on your 10PX, bright dots may appear on your screen display. Your displaycontains an extremely large number of TFT and is manufactured using high-precisiontechnology. Any bright dots that may appear on your display are intrinsic of the TFTmanufacturing technology.

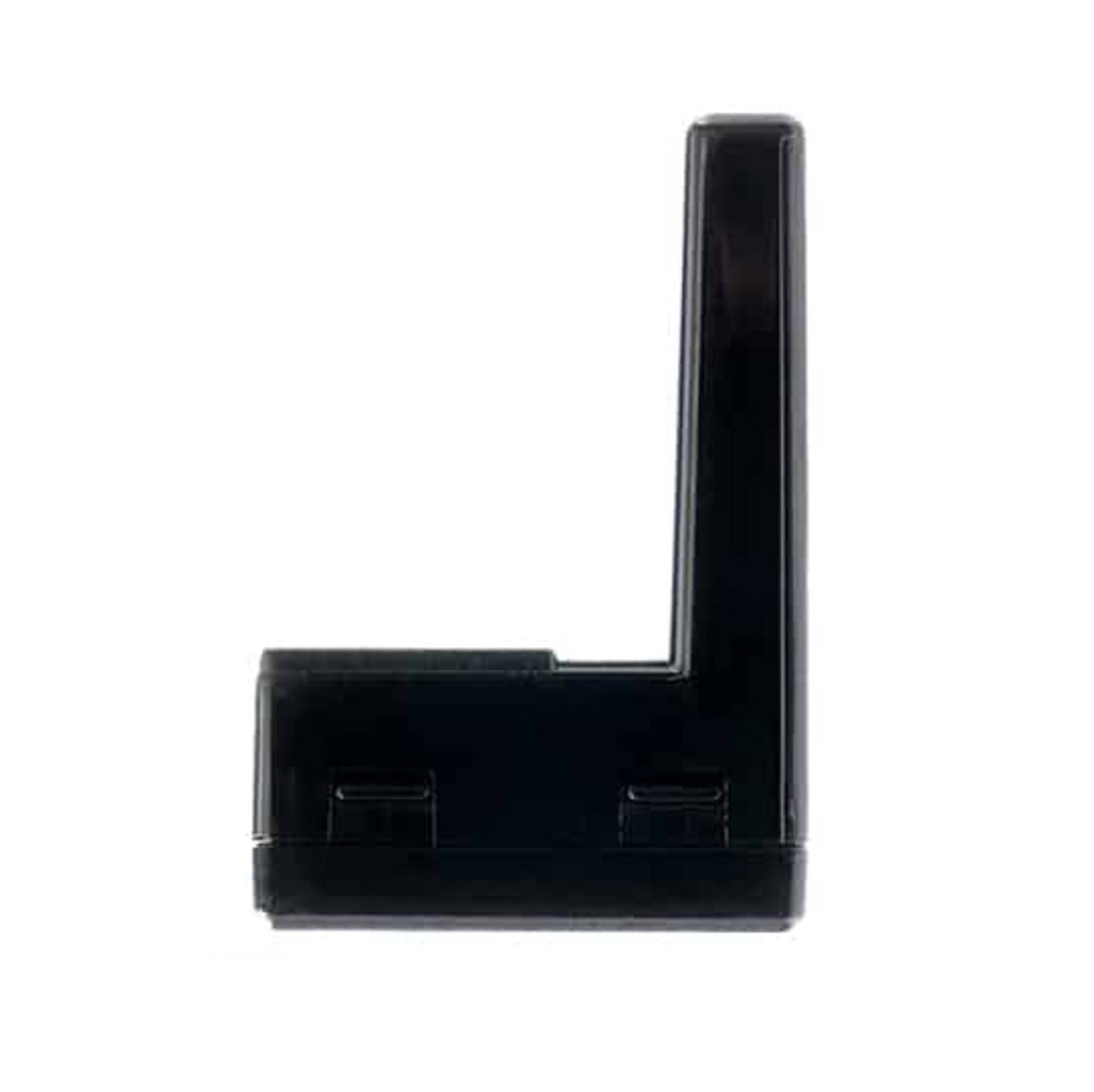

Reciever Specs

R404SBS

F-4G

Size:
1.00 x 0.81 x 0.42 inch
25.5 x 20.7 x 10.6 mm

Weight:
5.7 g
0.2 oz.

Operating Voltage:
DC 3.7 - 8.4V

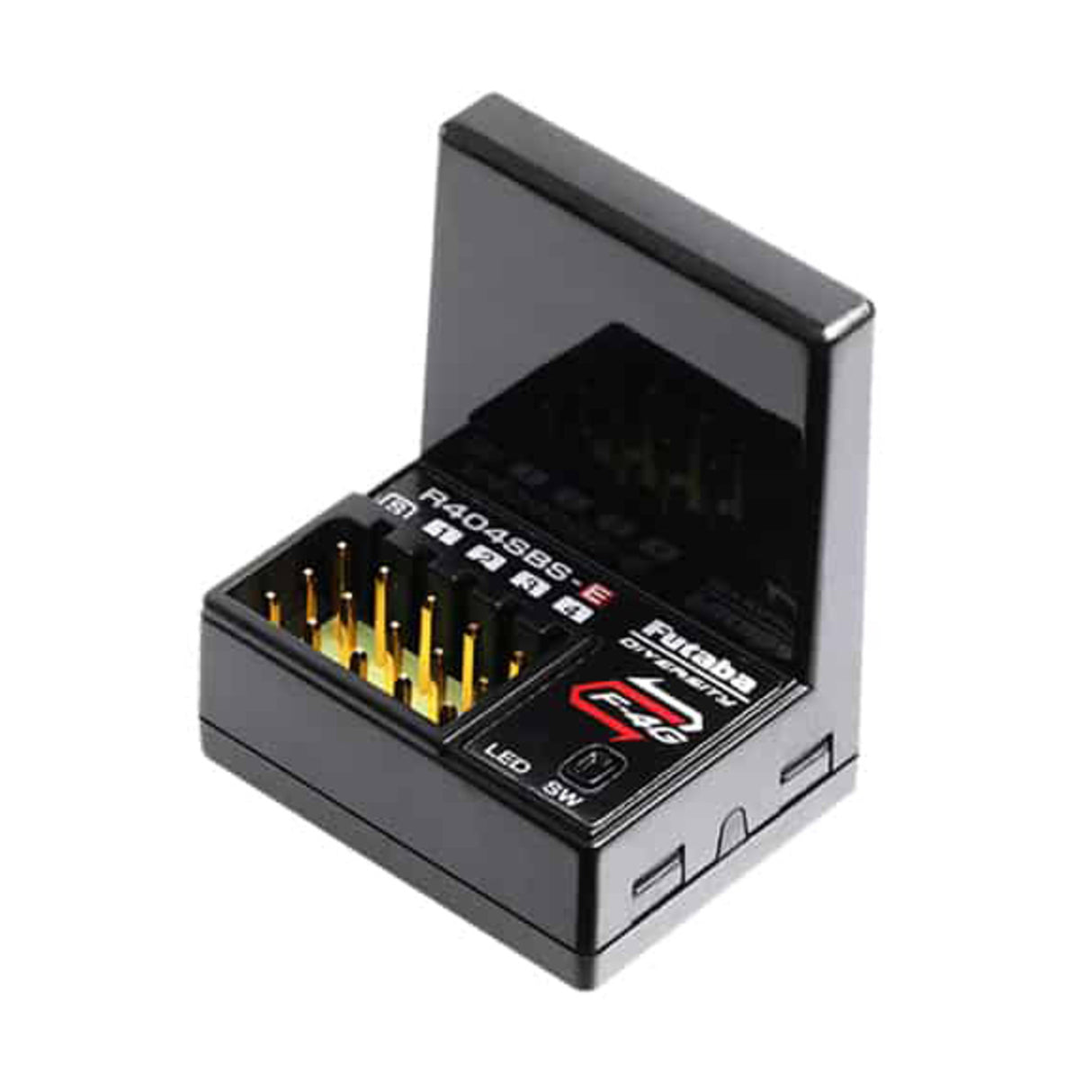

R404SBS-E

F-4G

Size:
1.00 x 0.81 x 0.42 inch
25.5 x 20.7 x 10.6 mm

Weight:
5.7 g
0.2 oz.

Operating Voltage:
DC 3.7-7.4V

Contents

• 1x T10PX Transmitter
• 1x R404SBS-E Receiver
• 1x Dry Battery Holder
• Wheel Offset Adapter Two Size (APA) Mounting Screws
• 1x Wheel Adapter (32 deg.)
• 1x Wheel Angle Spacer (5 deg)
• 1x Large Diameter Steering Wheel
• 1x Trigger Guard (Lx1/Rx1)
• 1x Grip Rubber
• 2x Blind Paddle
• 1x Hex Wrench
• 1x Short Manual
