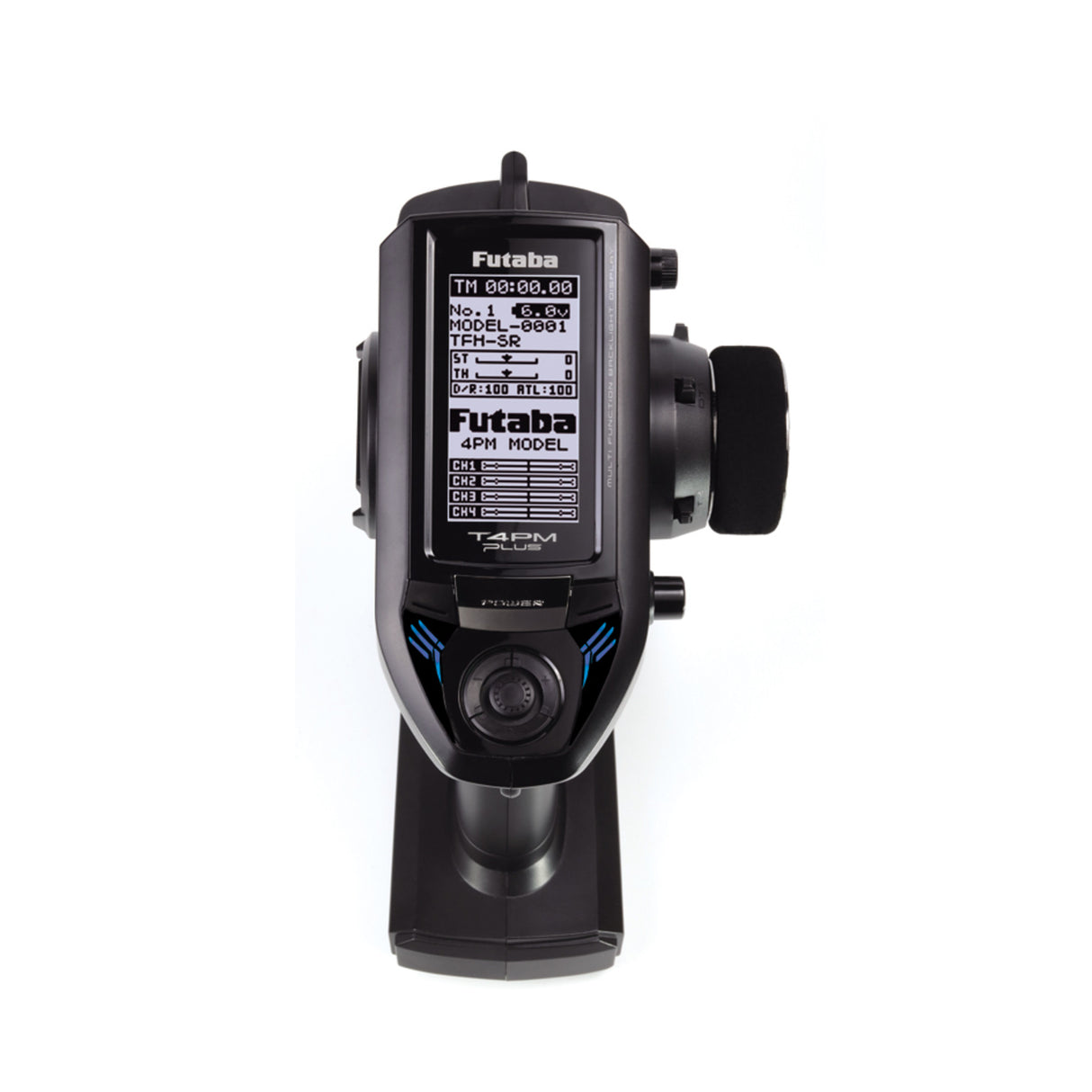

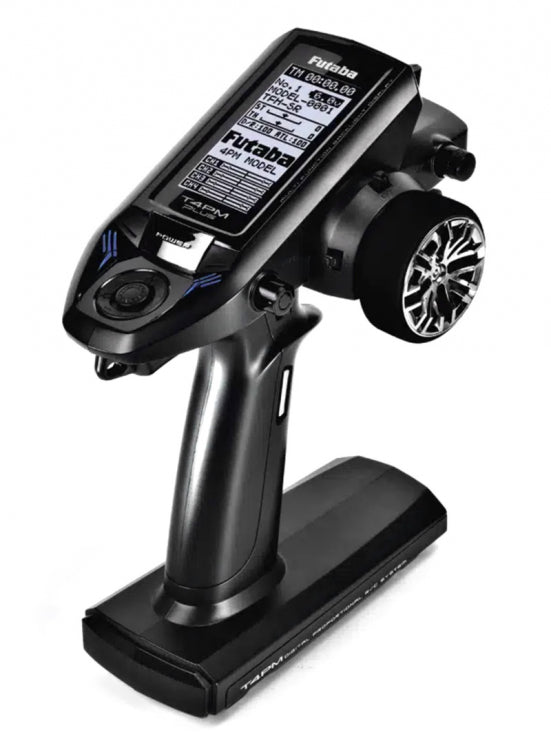

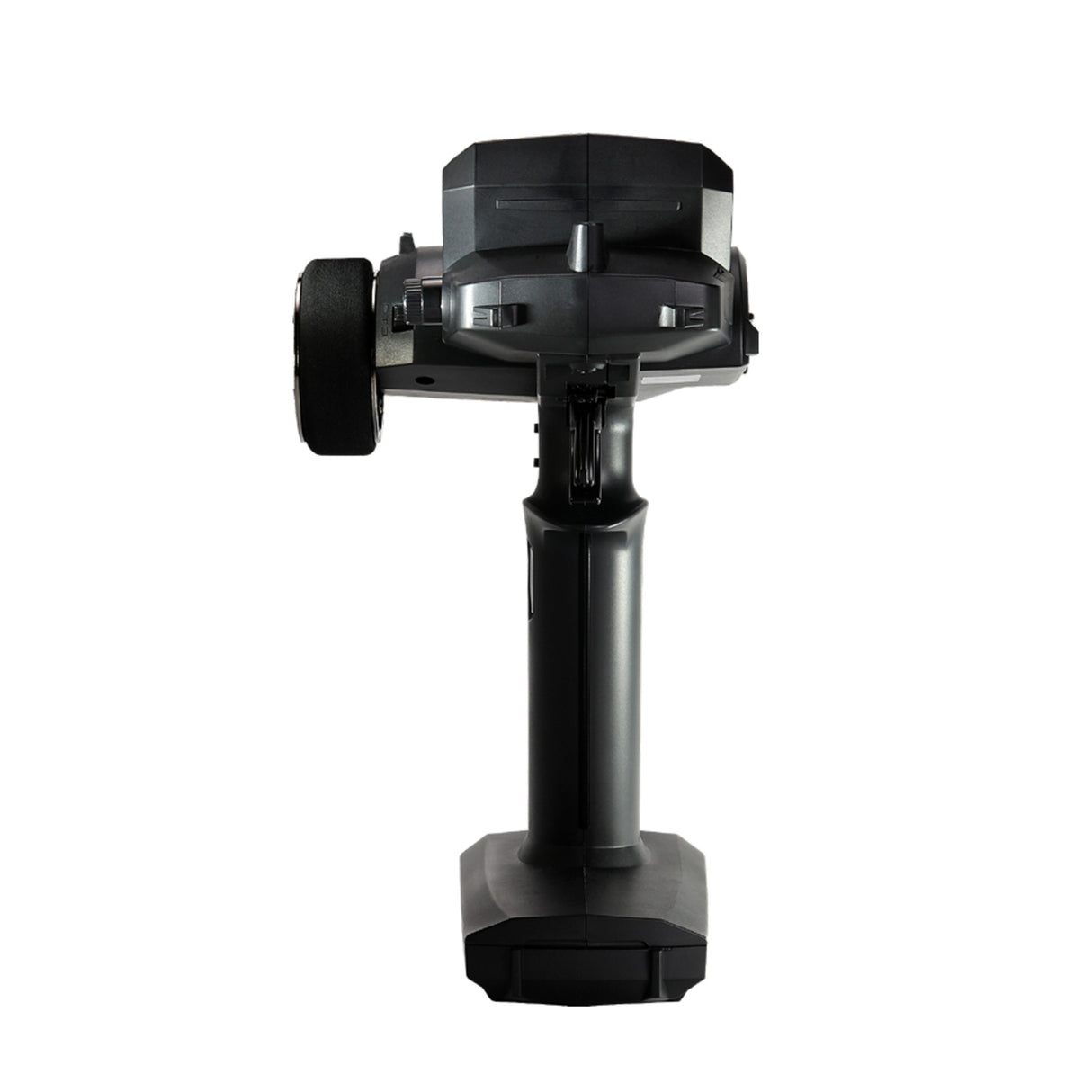

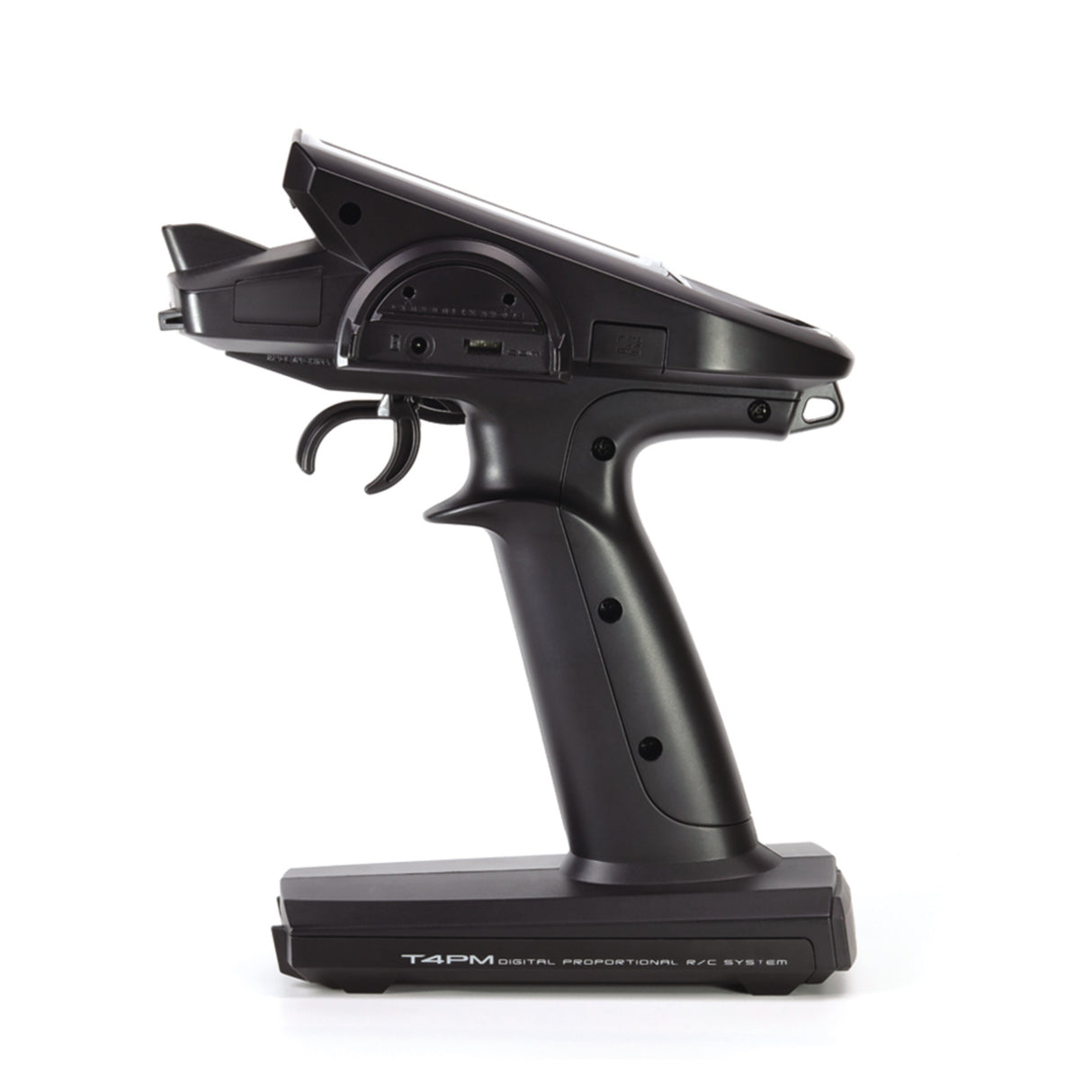

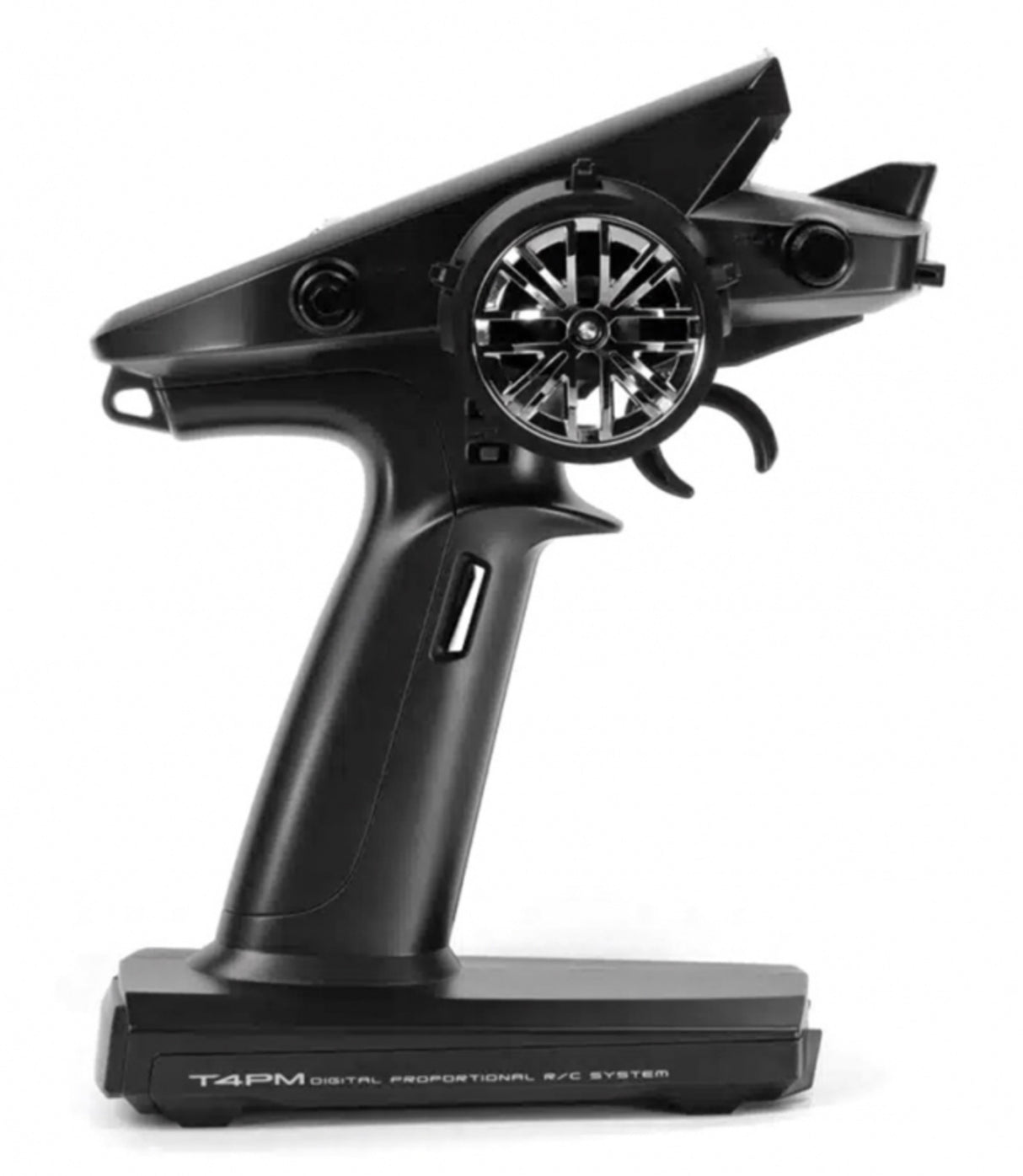

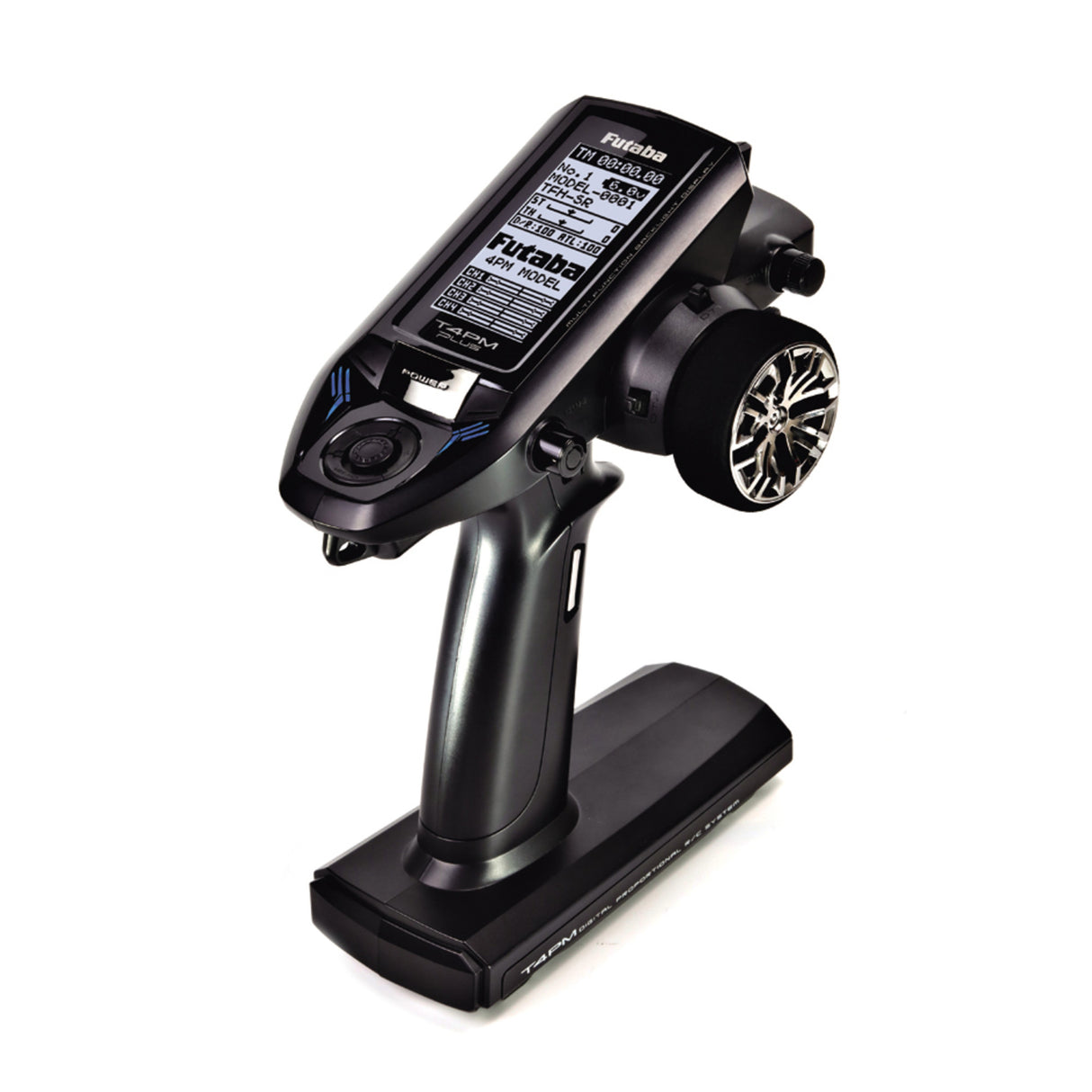

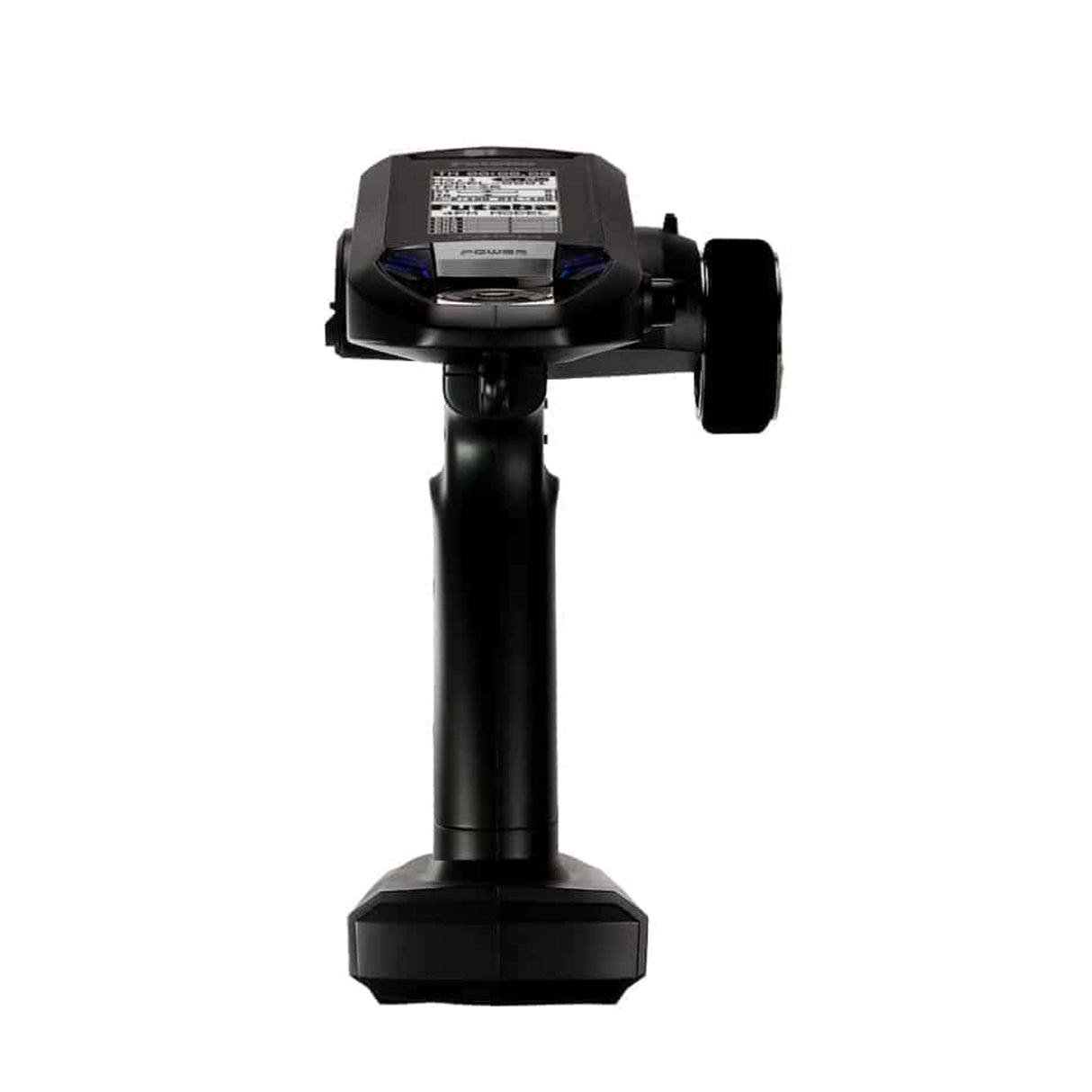

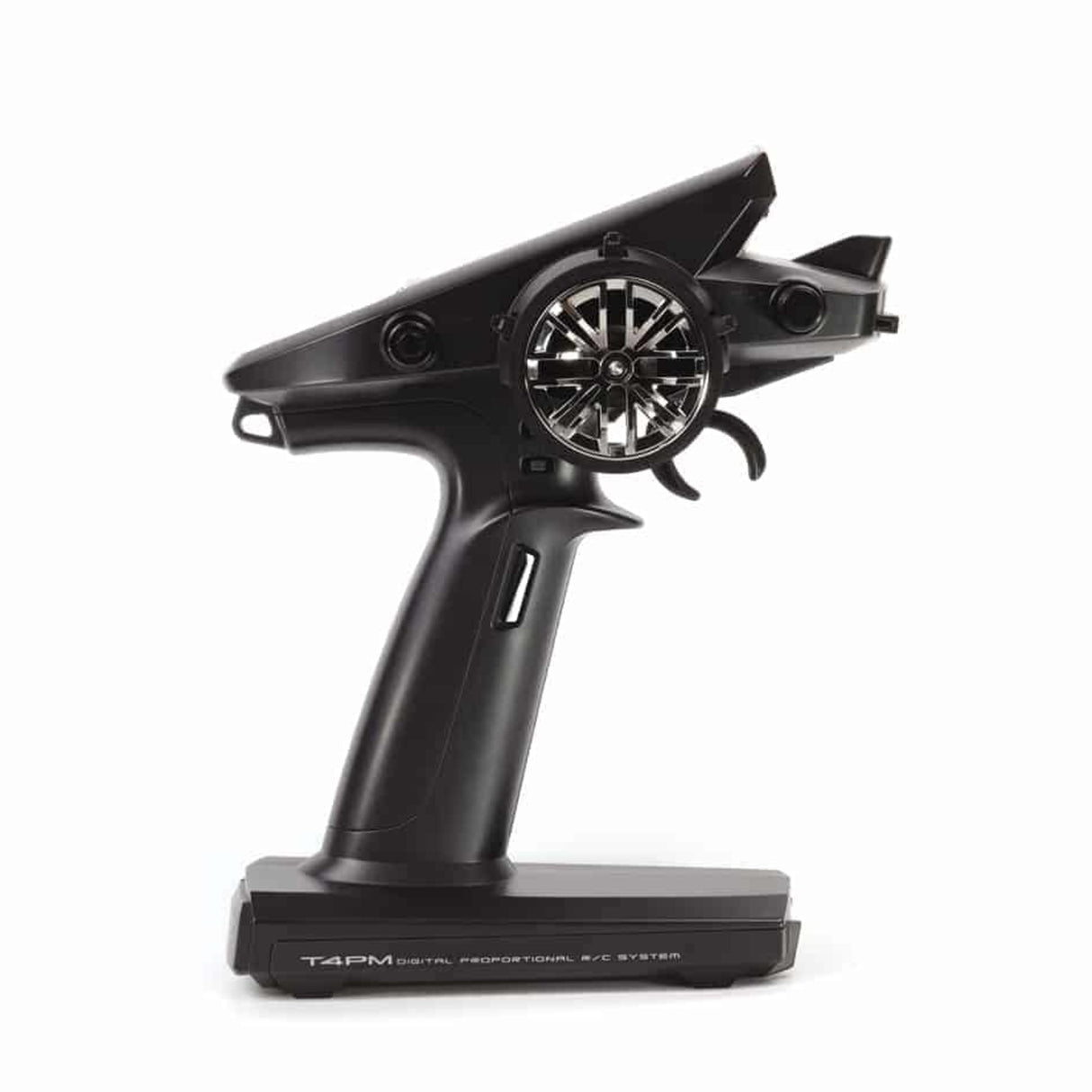

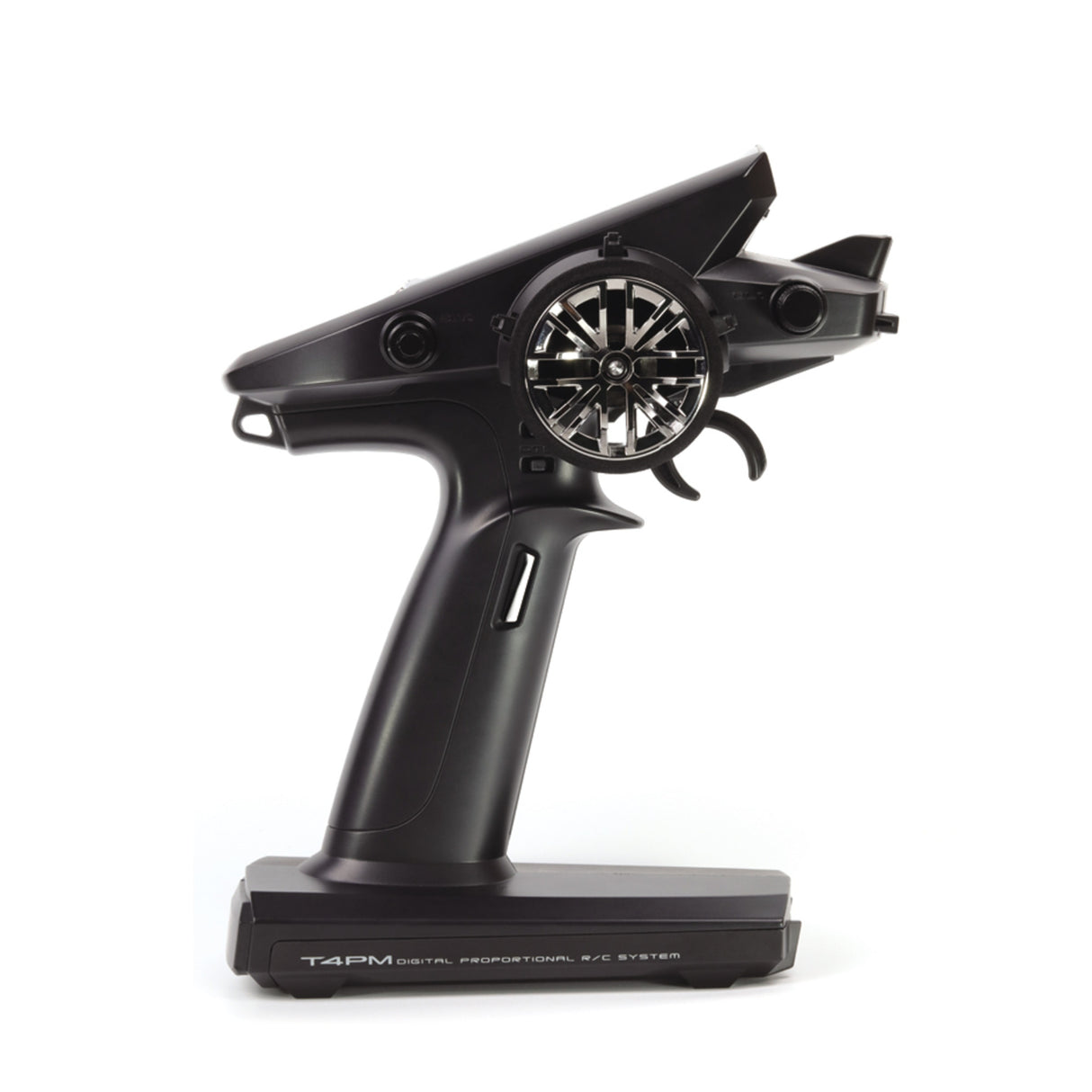

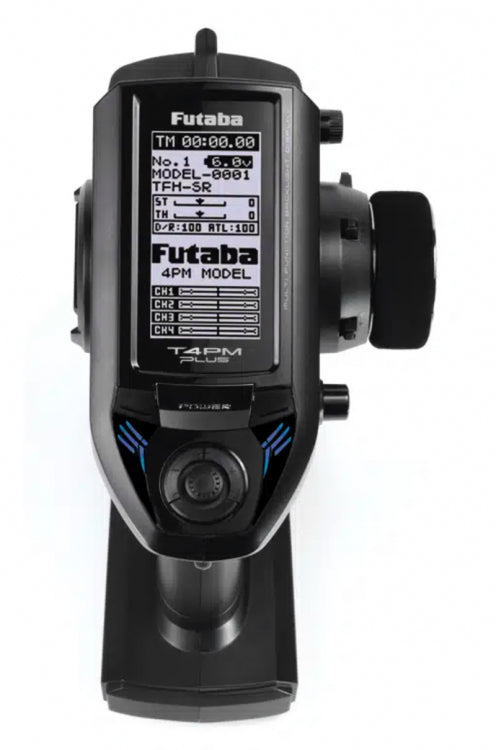

T4PM Plus 4-Channel Surface Radio with R304SB-E Rx

Mid-high range surface steerwheel set has been developed for car and boat competition use, with 4 channels, an LCD display screen, 40 model memory and telemetry, as well as a vast range of advanced features. It incorporates S-FHSS, T-FHSS and T-FHSS SR transmission modes as well as being compatible with Kyosho's Mini-Z module. It is supplied complete with an R304SB-E 4-channel T-FHSS receiver.

4PM Plus Transmitter – Super Response Digital Proportional RC System

Your T4PM+ includes the following components:

• T4PM+ Transmitter
• R304SB/E OR R334SBS OR NO receiver
• Dry Battery Holder
• Mini Screwdriver

Transmitter Specs

T-FHSS SR/T-FHSS/S-FHSS System, Wheel Type, 4 Channels

Communication Method:
Bidirectional protocol

Maximum Operating Range:
100m (Except the MINIT system) (Optimum condition)

For Safety:
F/S, B-F/S, ID

Transmitter Frequency:
2.4 GHz band

RF Power Output:
100mW EIRP

Power Requirement:
(Dry Cell Battery) Penlight x3 (4.5V)

Current Drain:
150 mA or less

Transmission Antenna:
1/2λ di-pole

Receiver Specs

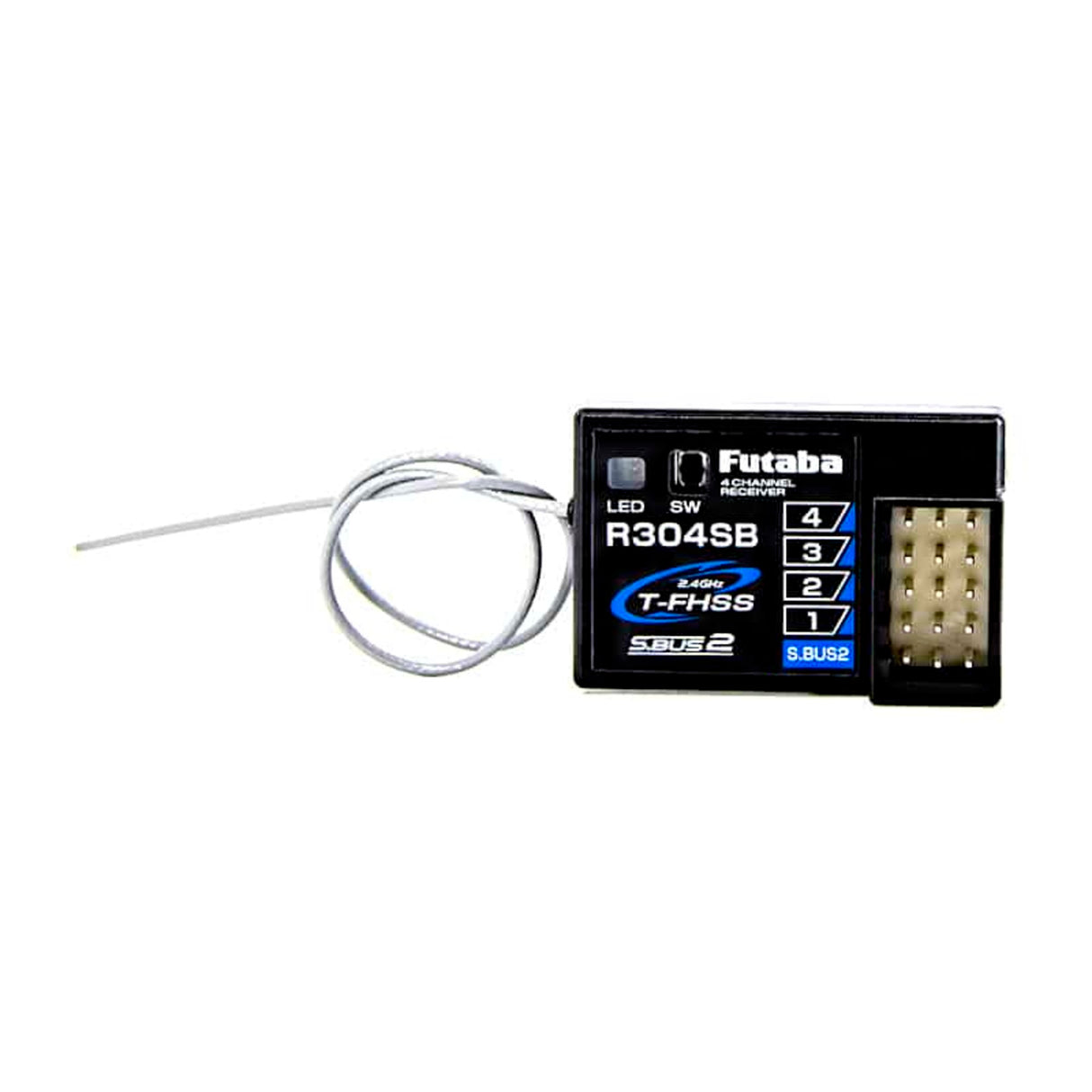

R304SB

• Size:
  35.1 x 23.2 x 8.5 mm
  1.38 x 0.91 x 0.33 in
• Weight:
  6.6 g
• Operating Voltage:
  DC 4.8 ~ 7.4V

R334SBS
T-FHSS SR

• Size:
  33.9 x 22.3 x 11.3 mm
  1.33 x 0.88 x 0.44 in
• Weight:
  7.5 g
  0.26 oz.
• Operating Voltage:
  DC 3.7 ~ 7.4V

Contents

• 1x T4PM+ Transmitter
• 1x R304SB-E Receiver
• 1x Dry Battery Holder
• 1x Mini Screwdriver
