SKU: FUT05102172-1

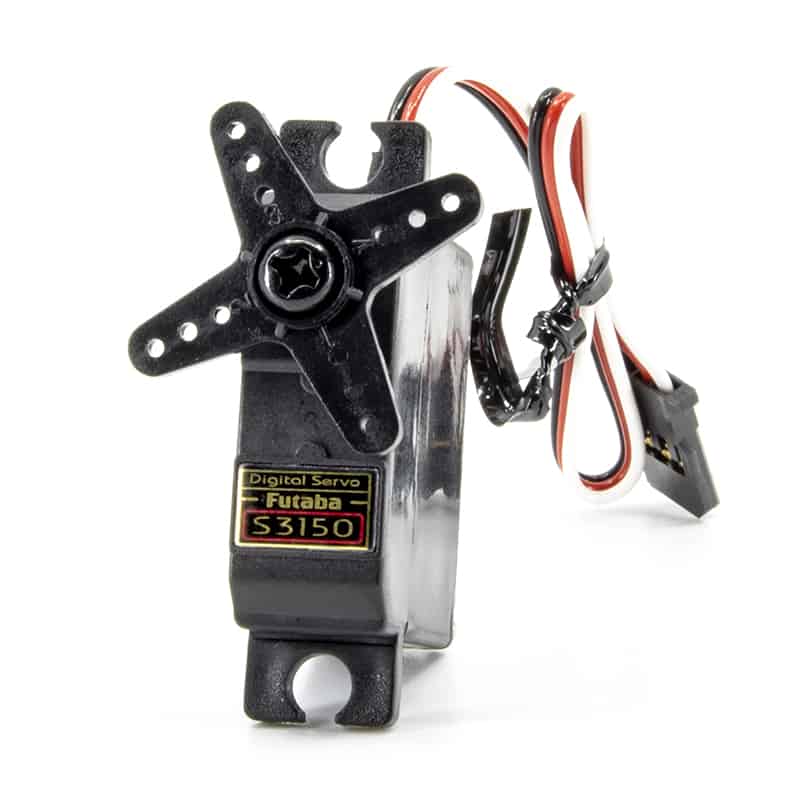

S3150 Slim Digital Glider Servo 3.7kg 0.24s 4.8V

Max Torque

3.7kg

Max Speed

0.24s

Command Protocol

Command Protocol

PWM

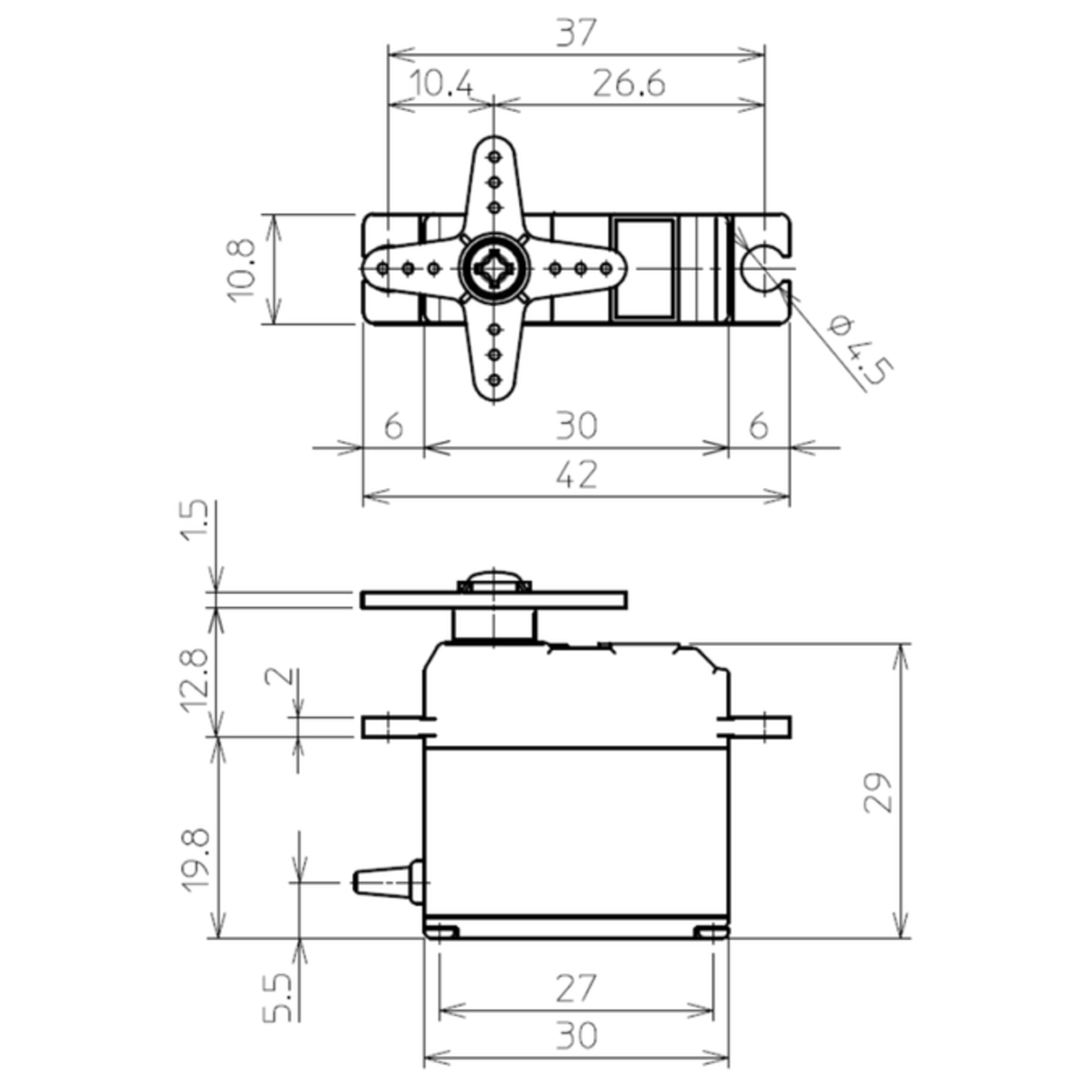

L×W×H

30×10.8×29mm

Weight

23 g

Voltage

4.8V

Gears

Metal

Spline

25T (Ø6mm)

£47⁵⁰

VAT included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Mini&Micro Servos

S3150

Digital micro aircraft metal gear servo

Command Protocol

PWM
Size

Mini
Dimensions

30×10.8×29mm
Circuit

Digital
Weight

23 g
Voltage Range

4.8V
Max Torque (kg/cm)

3.7
Max Speed (sec/60°)

0.24
Spline

25T (Ø6mm)
Gears

Metal
Gear Detail

Metal 2-3 stage gear. Metal final gear

Download Manuals

S3150 Slim Digital Glider Servo 3.7kg 0.24s 4.8V

£47⁵⁰

Summary

Digital micro aircraft metal gear servo

Radio

N/A

Protocol

N/A

Command Protocol

PWM

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Mini

Dimensions (mm)

30×10.8×29mm

Circuit

Digital

Weight

23 g

Voltage Range

4.8V

Max Torque (kg/cm)

3.7

Max Speed (sec/60°)

0.24

Spline

25T (Ø6mm)

Motor

N/A

Gears

Metal

Programmable

N/A

Dust/Water Resistance

N/A

Case

N/A

Bearings

N/A

Circuit Detail

N/A

Motor Detail

N/A

Gear Detail

Metal 2-3 stage gear. Metal final gear
