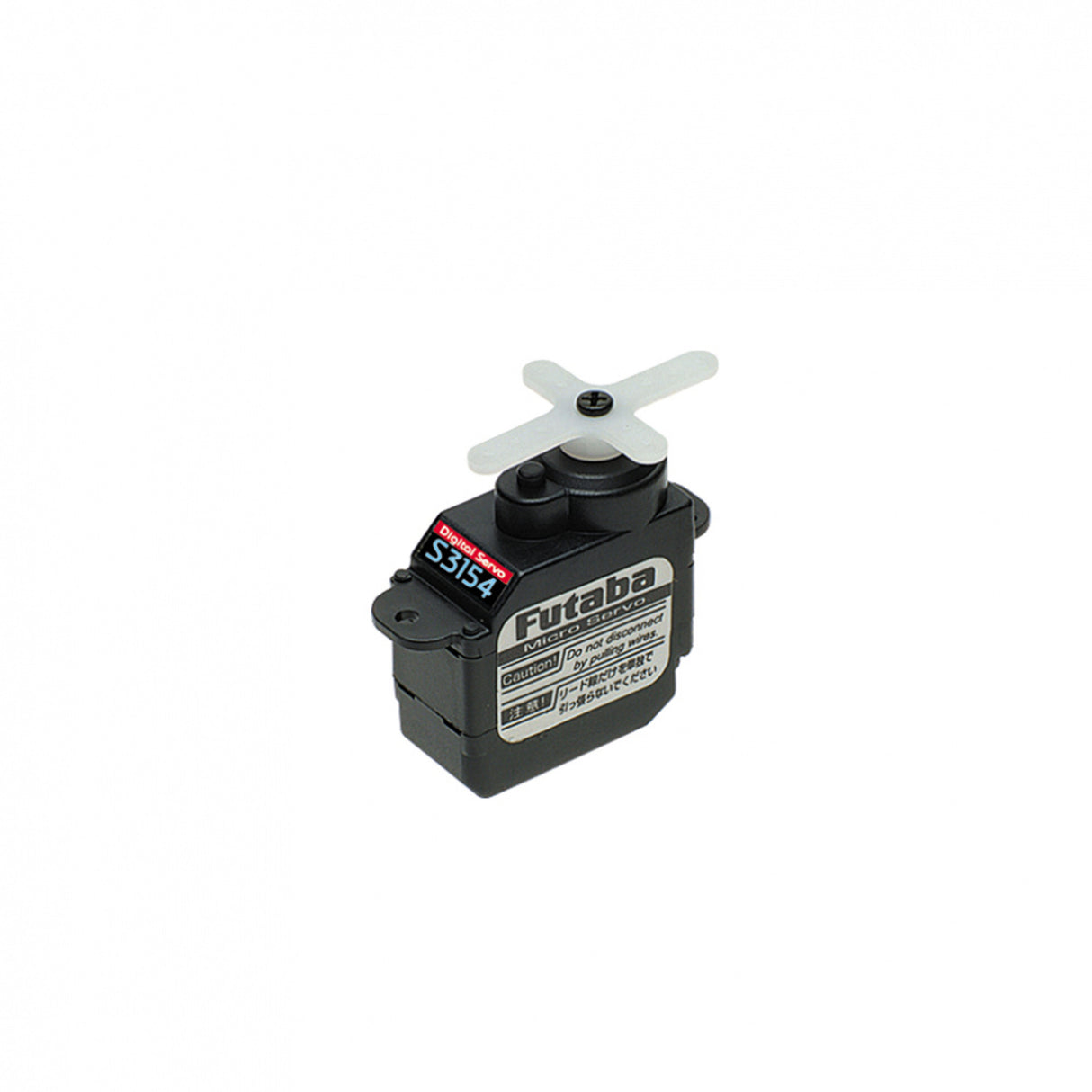

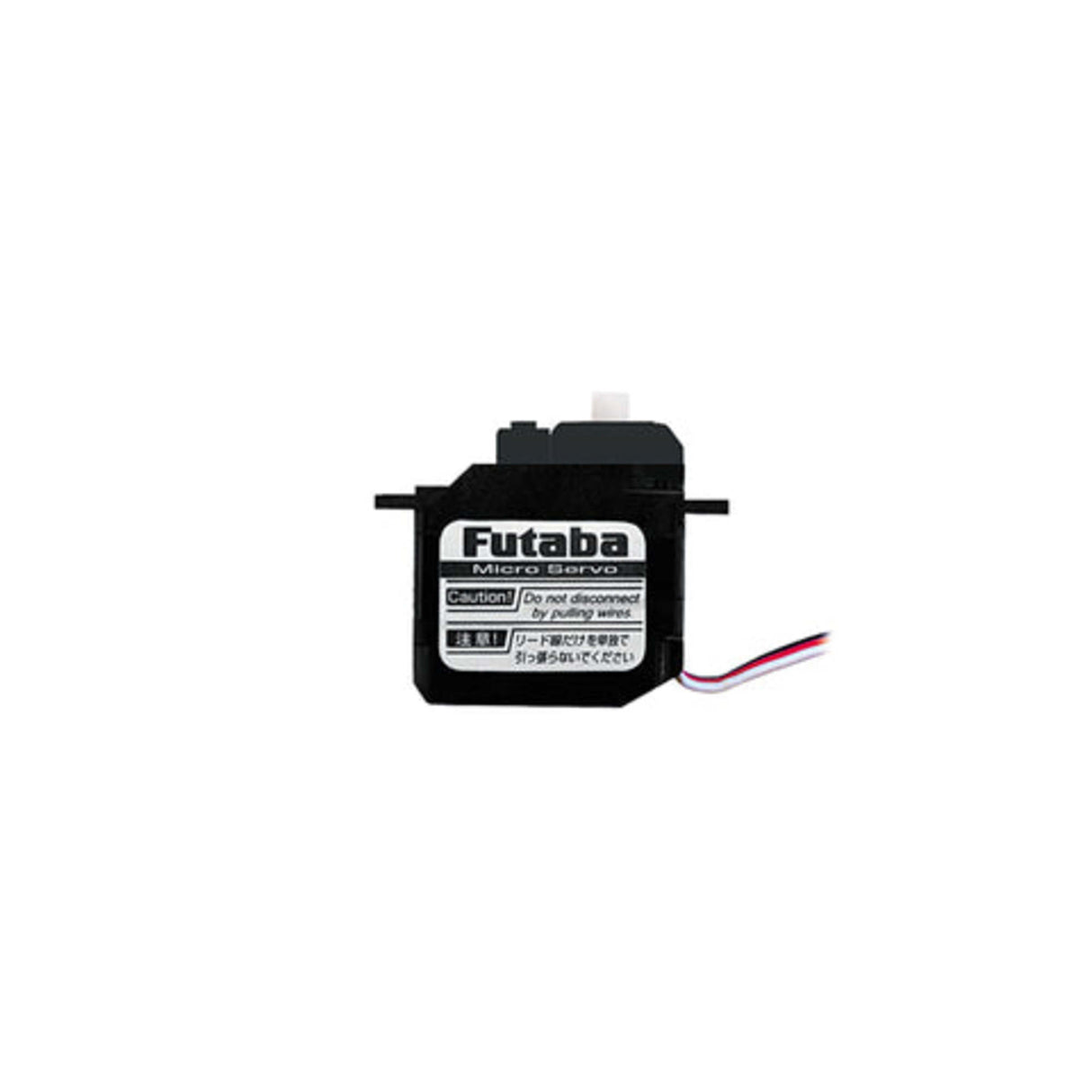

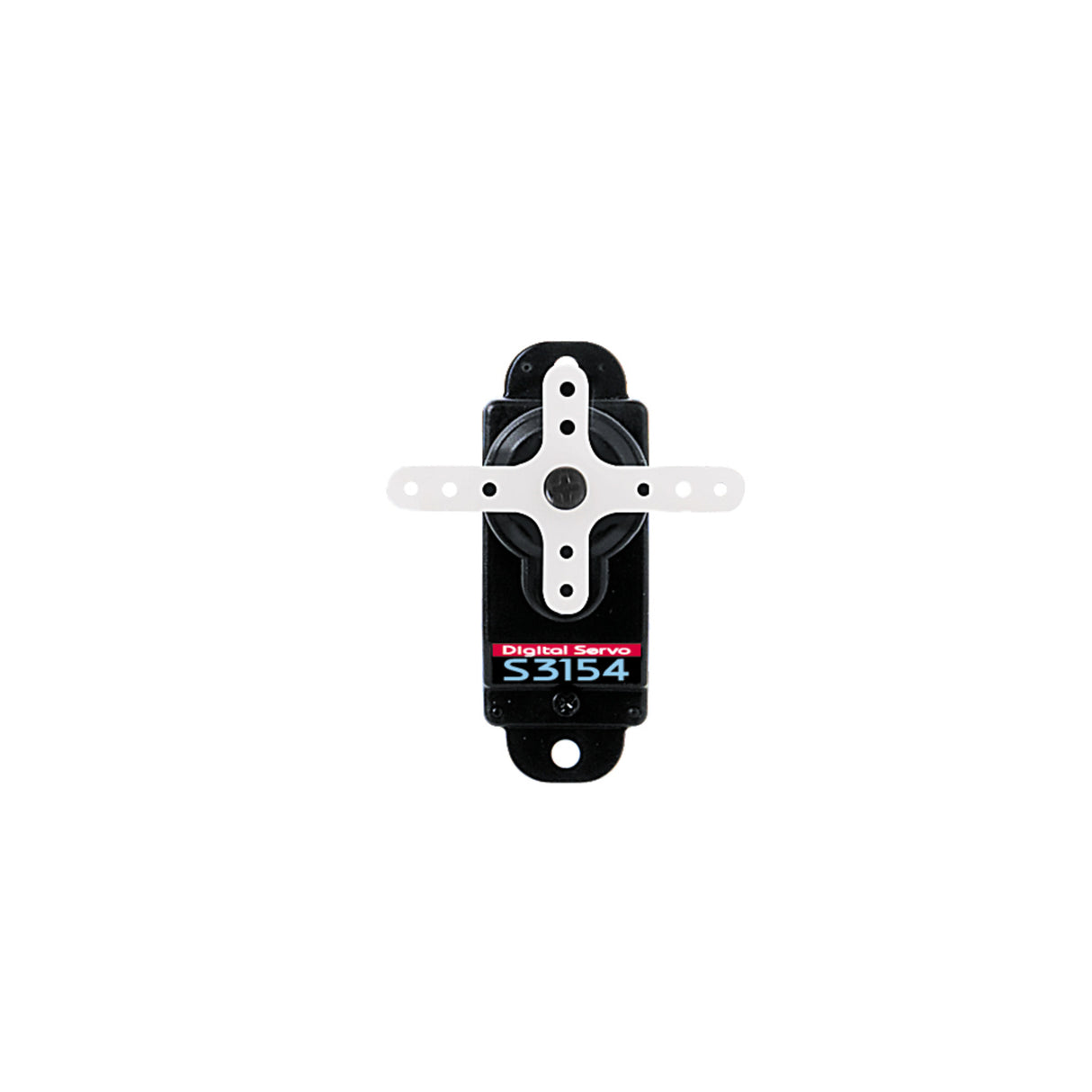

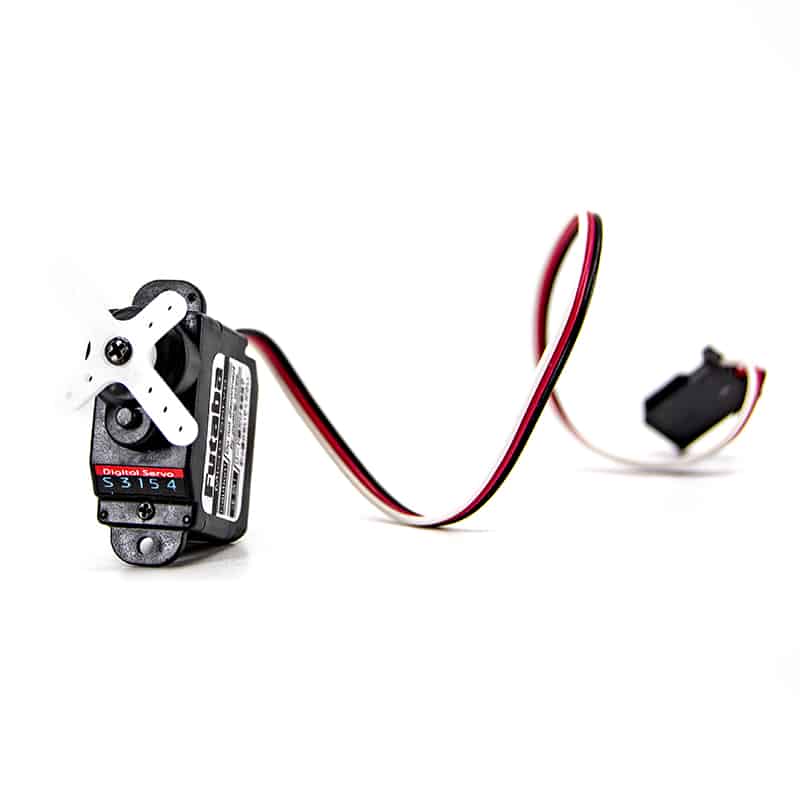

S3154 Sub-Micro Digital Servo 1.7kg 0.09s 4.8V - 6V

The S3154 Sub-Micro Digital Servo weighs 7.9g, measures 21.8×11.0×19.8mm, and provides 1.5-1.7kgf·cm torque with 0.09-0.10s/60° speed at 4.8-6V.

S3154– Micro Digital Air Servo

For Small Electric Powered Models

Speed:
0.10 sec/60° at 4.8V
0.09 sec/60° at 6.0V

Torque:
20.8 oz/in at 4.8V
23.5 oz/in 6.0V

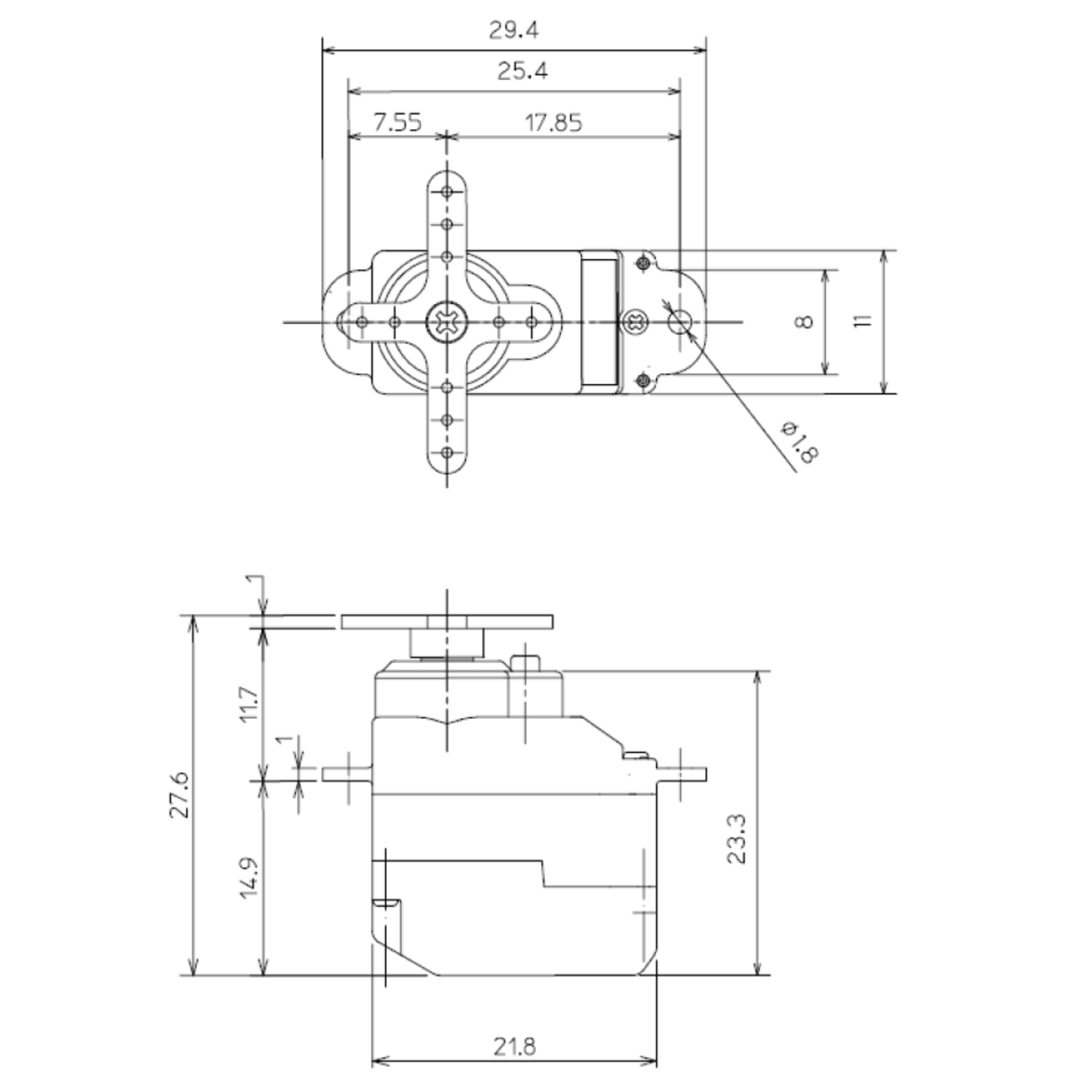

Size:
0.86 x 0.43 x 0.78 in

Weight:
0.27 g

The S3154 servo is a micro servo for small electronicmodels. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require high torque
• Using supply voltage higher than 6.0V or applying high loads to the servo willshorten the life.
• Always use the servo horn specifically designed for this micro servo. Do not useconventional servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.

Contents

• 1x S3154 Sub-Micro Digital Servo
• Horns
• Mounting Hardware
