SKU: FUT05102421-3

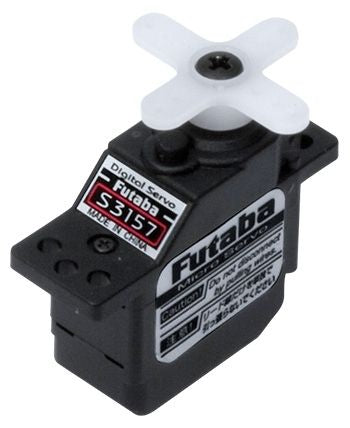

S3157 Micro Digital Servo 1.7kg 0.09s 4.8V - 6V

Max Torque Max Torque
1.7kg
Max Speed Max Speed
0.09s
Command Protocol Command Protocol
PWM
Dimensions L×W×H
21.8×11×23.2mm
Weight Weight
8.3 g
Voltage Range Voltage
4.8V - 6.0V
Gears Gears
Resin
Spline Spline
25T (Ø4mm)
£2750
VAT included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

S3157

  • Command Protocol
    PWM
  • Size
    Micro
  • Dimensions
    21.8×11×23.2mm
  • Circuit
    Digital
  • Weight
    8.3 g
  • Voltage Range
    4.8V - 6.0V
  • Max Torque (kg/cm)
    1.7
  • Max Speed (sec/60°)
    0.09
  • Spline
    25T (Ø4mm)
  • Gears
    Resin
Download Manuals

S3157 Micro Digital Servo 1.7kg 0.09s 4.8V - 6V

£2750

Summary

N/A

Radio

N/A

Protocol

N/A

Command Protocol

PWM

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Micro

Dimensions (mm)

21.8×11×23.2mm

Circuit

Digital

Weight

8.3 g

Voltage Range

4.8V - 6.0V

Max Torque (kg/cm)

1.7

Max Speed (sec/60°)

0.09

Spline

25T (Ø4mm)

Motor

N/A

Gears

Resin

Programmable

N/A

Dust/Water Resistance

N/A

Case

N/A

Bearings

N/A

Circuit Detail

N/A

Motor Detail

N/A

Gear Detail

N/A

Comes with

N/A
