SKU: FUT05102422-1

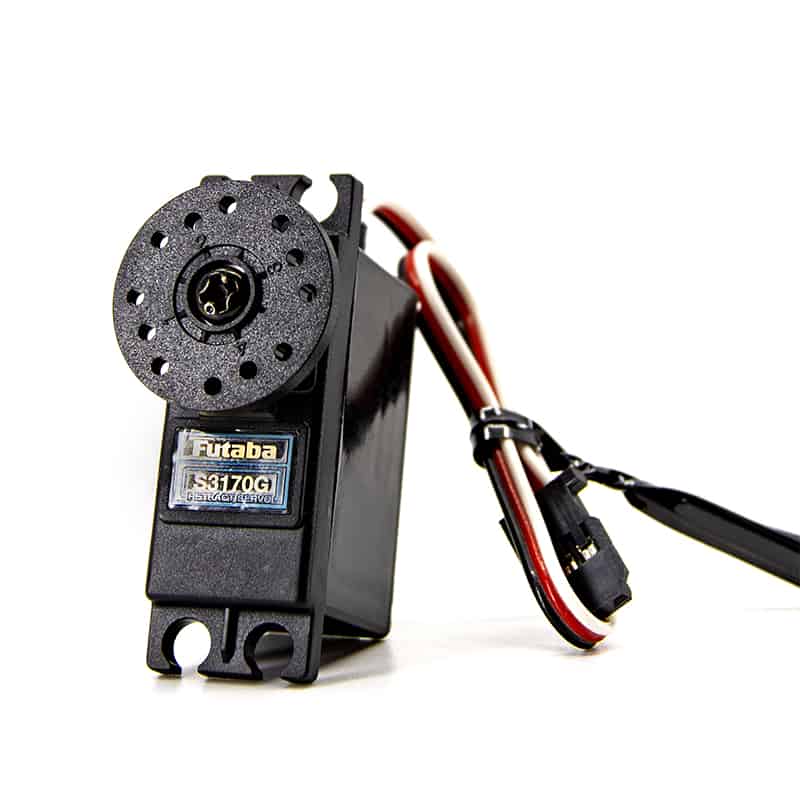

S3170G Mini Digital Retract Servo MG 8.5kg 0.47s 4.8V - 6V

Max Torque

8.5kg

Max Speed

0.47s

Command Protocol

Command Protocol

PWM

L×W×H

34.5×16×25.8mm

Weight

26 g

Voltage

4.8V - 6.0V

Gears

Metal

Spline

25T (Ø6mm)

£74⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Mini&Micro Servos

S3170G

The S3170G Mini Digital Retract Servo with metal gears provides 8.5kgf·cm torque and 0.47s/60° speed at 6.0V. It measures 34.5×16.0×25.8mm, weighs 26g, and operates between 4.8V and 6.0V.

S3170G– Standard Analog Airplane Retract Servo
Low Speed High Torque Metal Planetary Gear Servo

Use the horn set screw supplied with the sevo. Screw size: 3mm x 8mm.

Speed:
0.57 sec/60° (4.8V)
0.47 sec/60° (6.0V)

Torque:
7.0 kgf/cm (4.8V)
97.2 ozf/in (4.8V)
8.5 kgf/cm (6.0V
118.1 ozf/in (6.0V)

Size:
34.5 x 16 x 25.8 mm
1.36 x 0.63 x 1.02

Weight:
26 g
0.92 oz

Contents

1x S3170G Mini Digital Retract Servo
Horns
Mounting Hardware

Command Protocol

PWM
Size

Mini
Dimensions

34.5×16×25.8mm
Circuit

Digital
Weight

26 g
Voltage Range

4.8V - 6.0V
Max Torque (kg/cm)

8.5
Max Speed (sec/60°)

0.47
Spline

25T (Ø6mm)
Gears

Metal

Download Manuals
