SKU:
FUT05102530-1

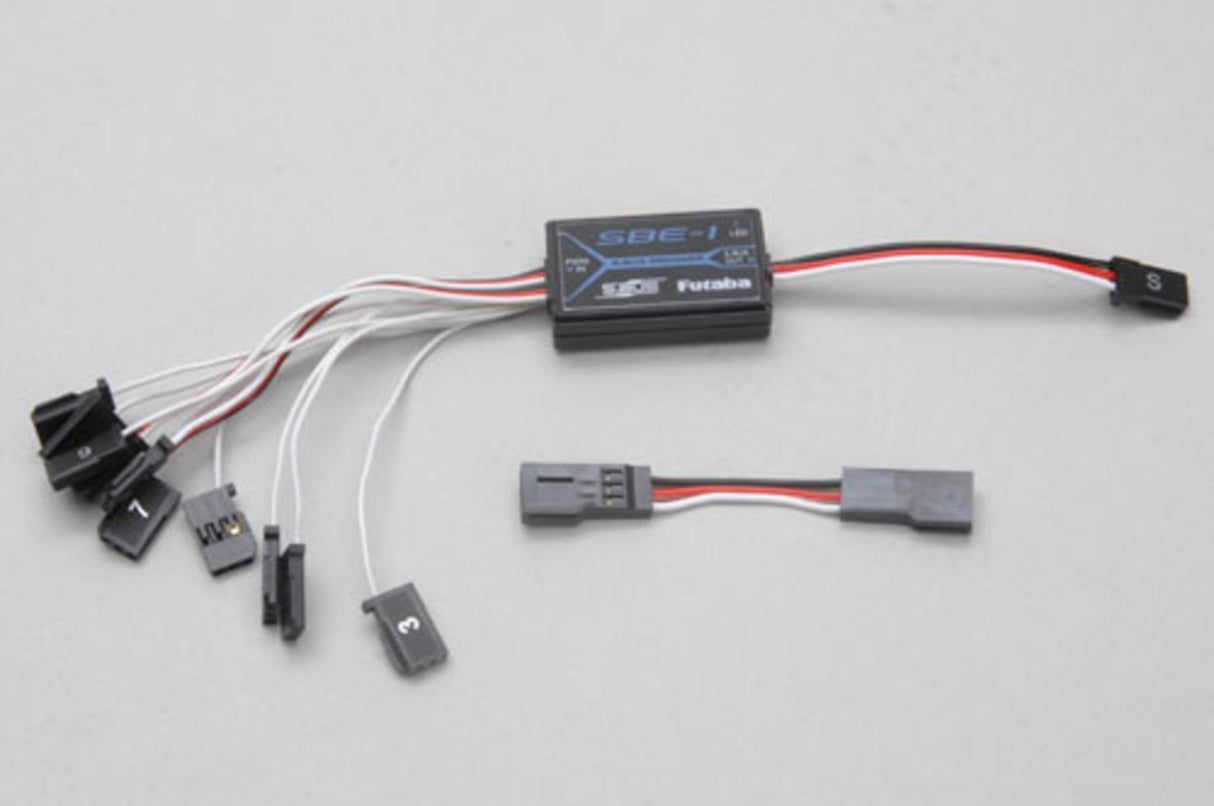

SBE-1 10-channel PWM to S-Bus Encoder
Channels10
Command Protocol
S.BUS
S.BUS2
PWM
£5750
Unit price
/
Unavailable
Tax included
Your local stockist
Your local stockist
Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.
SBE-1 10-channel PWM to S-Bus Encoder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Explore more like this:
SBE-1
SBE-1-S.Bus Decoder Adapter
PWM to S.Bus Converter
PWM Input:
Max 10 Channels
Input Pulse Width:
805 ~ 2,235 μS
Input Frame Rate:
3 ~ 27.3 mS
Output Signal:
S.Bus
S.Bus Data Rate:
100 kpbs
Output Frame Rate:
Approximately 7 mS
Operating Voltage Range (Rated):
4.8V ~ 7.4V
Dimensions (Excluding Cable):
23.5 x 33.5 x 9.5 mm
0.92 x 1.31 x0.37 in
Weight:
15 g
0.52 oz
Operating Temperature Range:
-10 ~ 45°C
Storage Temperature Range:
-20 ~ 60°C
-
Command ProtocolS.BUS, S.BUS2, PWM
-
PWM Channels
