SKU: FUT05102671-1

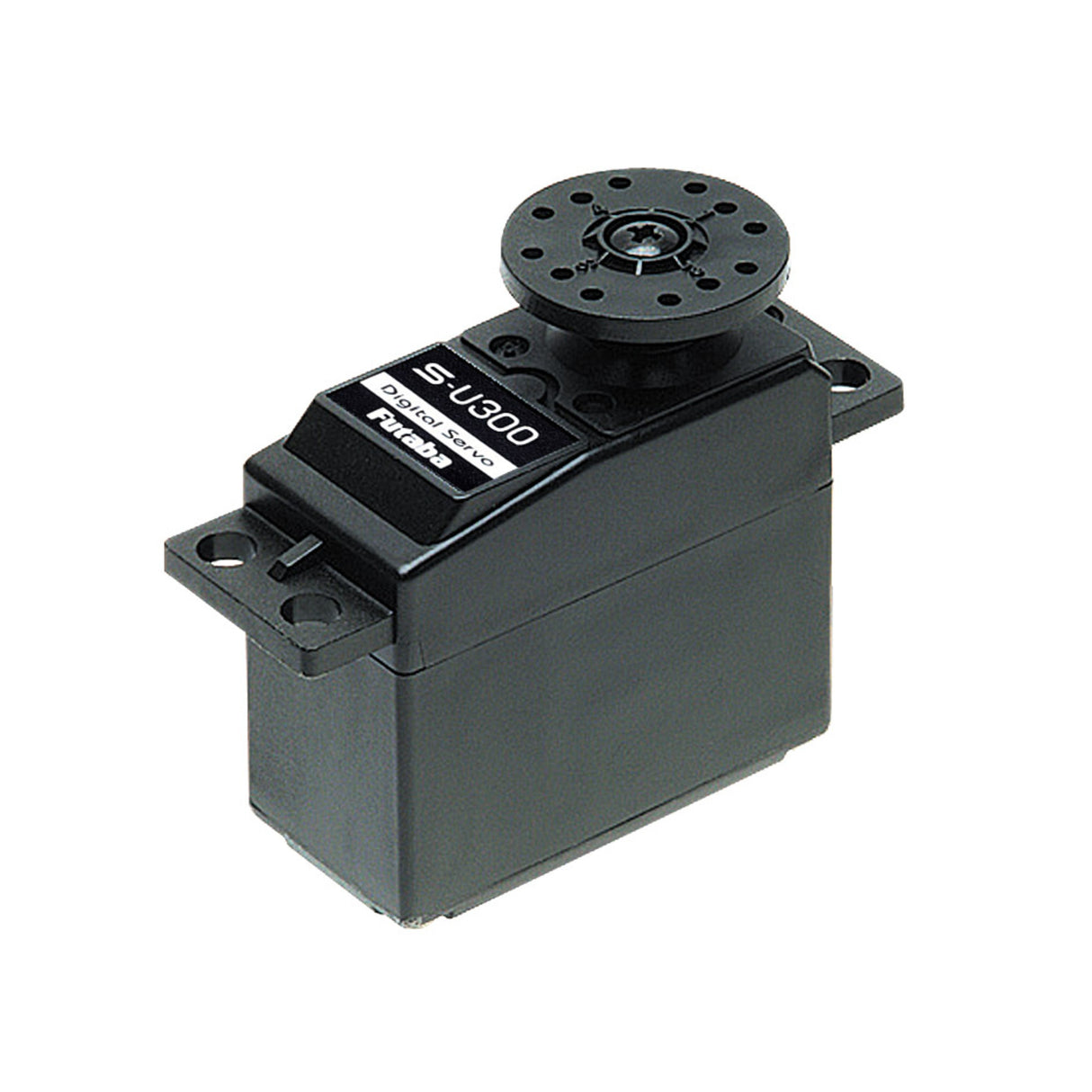

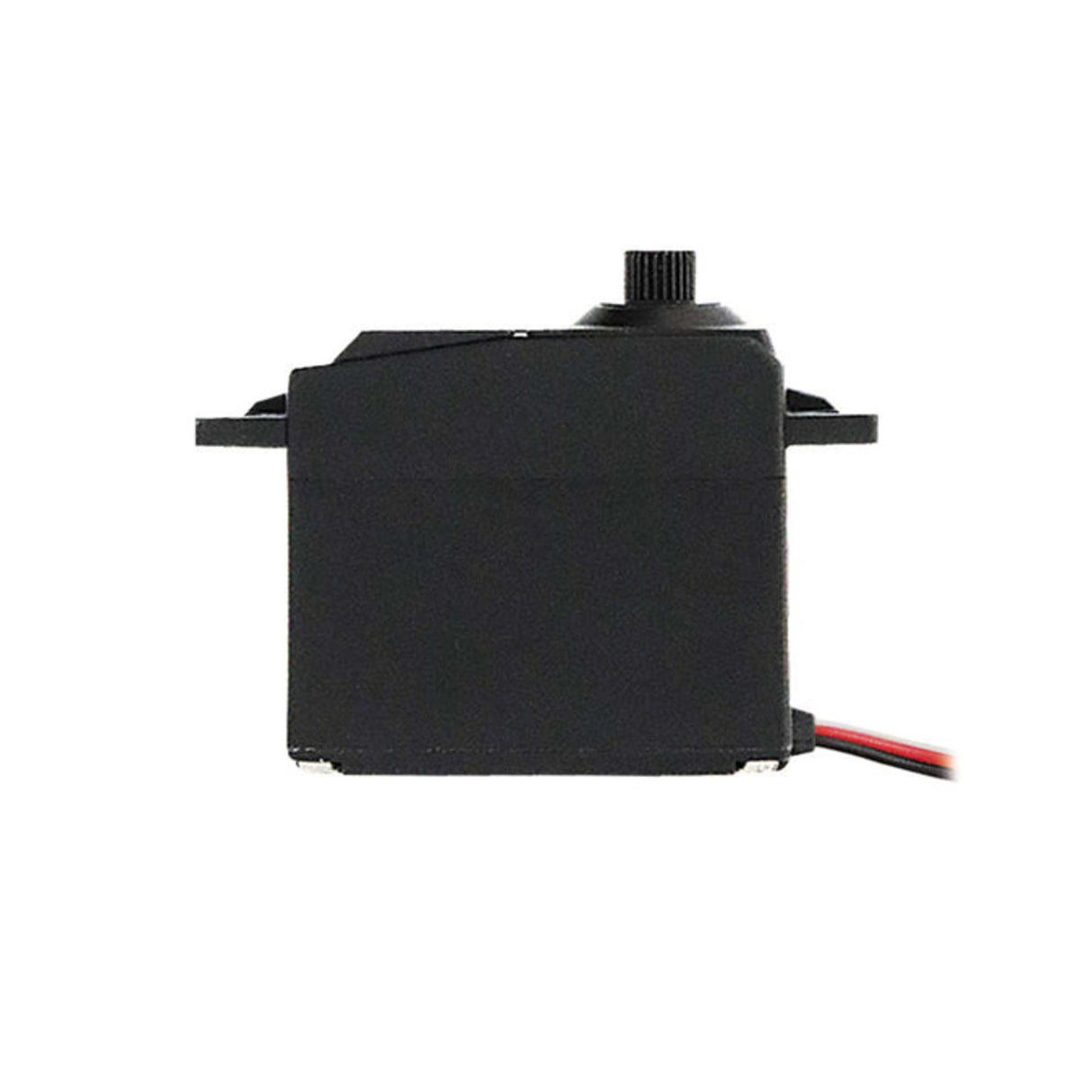

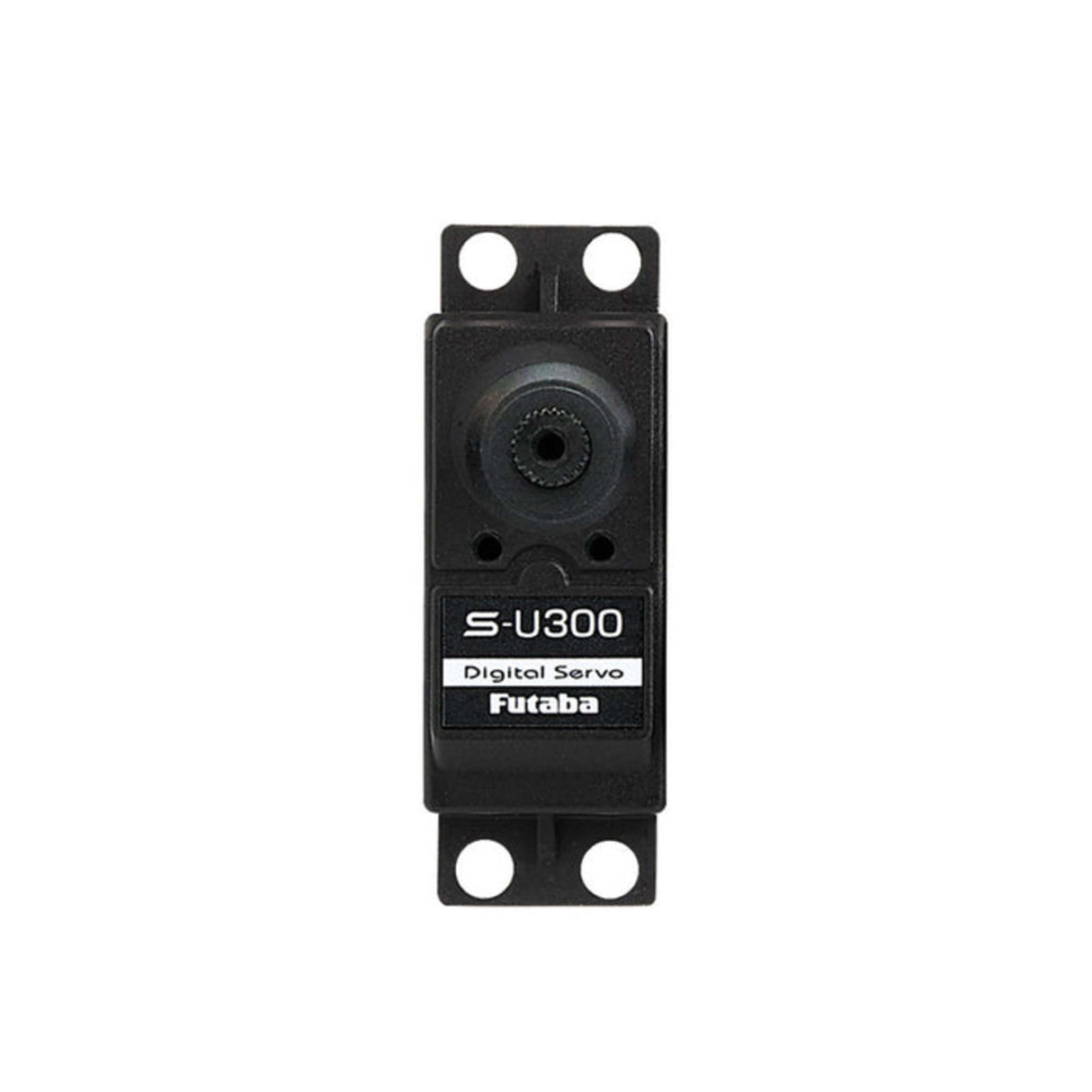

S-U300 Standard Digital Servo PWM/S.BUS2 4.1kg 0.19s 4.8V - 6V

Max Torque Max Torque
4.1kg
Max Speed Max Speed
0.19s
Command Protocol Command Protocol
PWM S.BUS S.BUS2

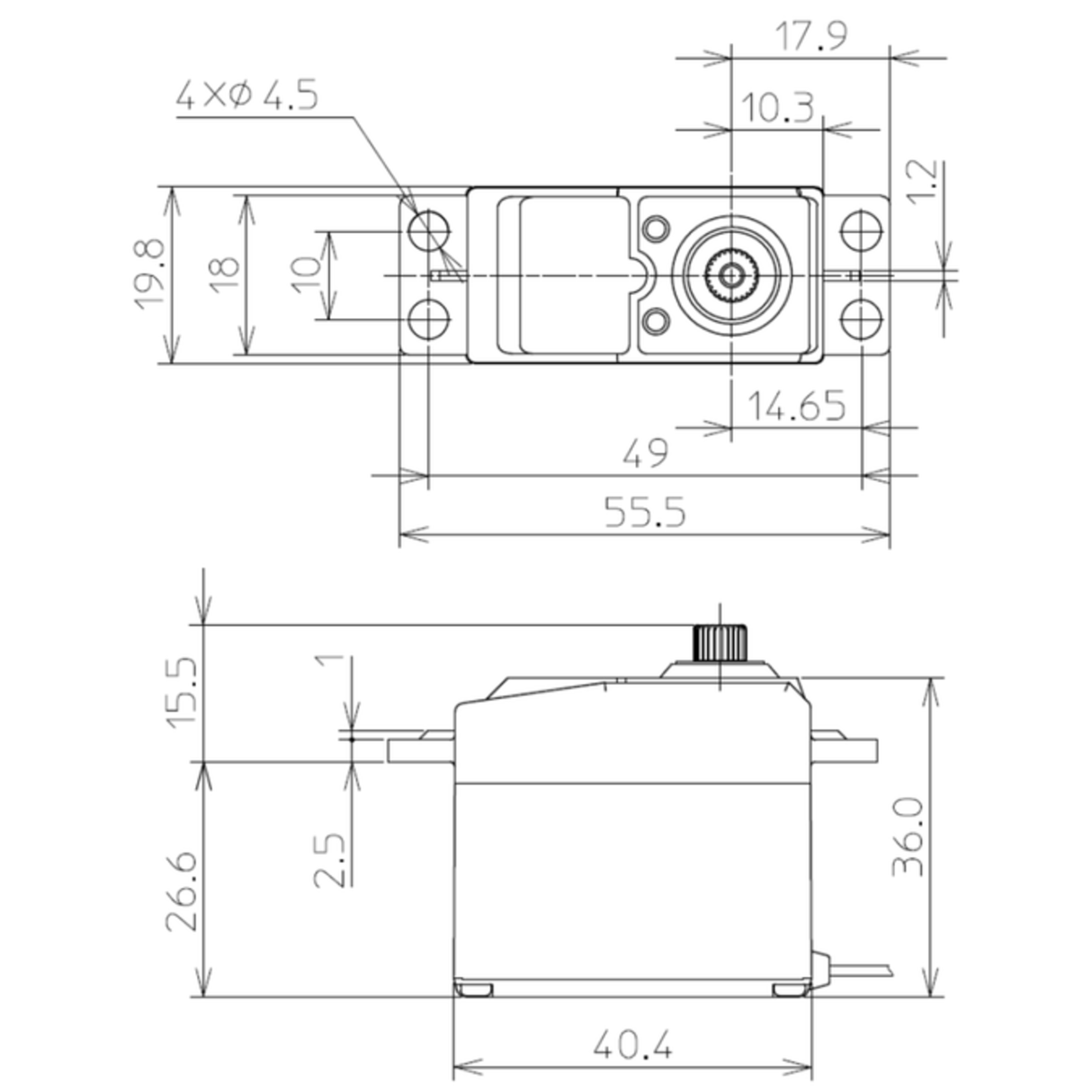

Dimensions L×W×H
40.4×19.8×36mm
Weight Weight
36 g
Voltage Range Voltage
4.8V - 6.0V
Gears Gears
Resin
Spline Spline
25T (Ø6mm)
£1650
VAT included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

S-U300

Digital standard servo for air and surface. Supports S.BUS2

  • Command Protocol
    PWM, S.BUS, S.BUS2
  • Size
    Standard
  • Dimensions
    40.4×19.8×36mm
  • Circuit
    Digital
  • Weight
    36 g
  • Voltage Range
    4.8V - 6.0V
  • Max Torque (kg/cm)
    4.1
  • Max Speed (sec/60°)
    0.19
  • Spline
    25T (Ø6mm)
  • Motor
    Cored
  • Gears
    Resin
  • Motor Detail
    3-Pole Cored

S-U300 Standard Digital Servo PWM/S.BUS2 4.1kg 0.19s 4.8V - 6V

£1650

Summary

Digital standard servo for air and surface. Supports S.BUS2

Radio

N/A

Protocol

N/A

Command Protocol

PWM, S.BUS, S.BUS2

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Standard

Dimensions (mm)

40.4×19.8×36mm

Circuit

Digital

Weight

36 g

Voltage Range

4.8V - 6.0V

Max Torque (kg/cm)

4.1

Max Speed (sec/60°)

0.19

Spline

25T (Ø6mm)

Motor

Cored

Gears

Resin

Programmable

N/A

Dust/Water Resistance

N/A

Case

N/A

Bearings

N/A

Circuit Detail

N/A

Motor Detail

3-Pole Cored

Gear Detail

N/A

Comes with

N/A
