1 8

SKU: FUT05102673-1

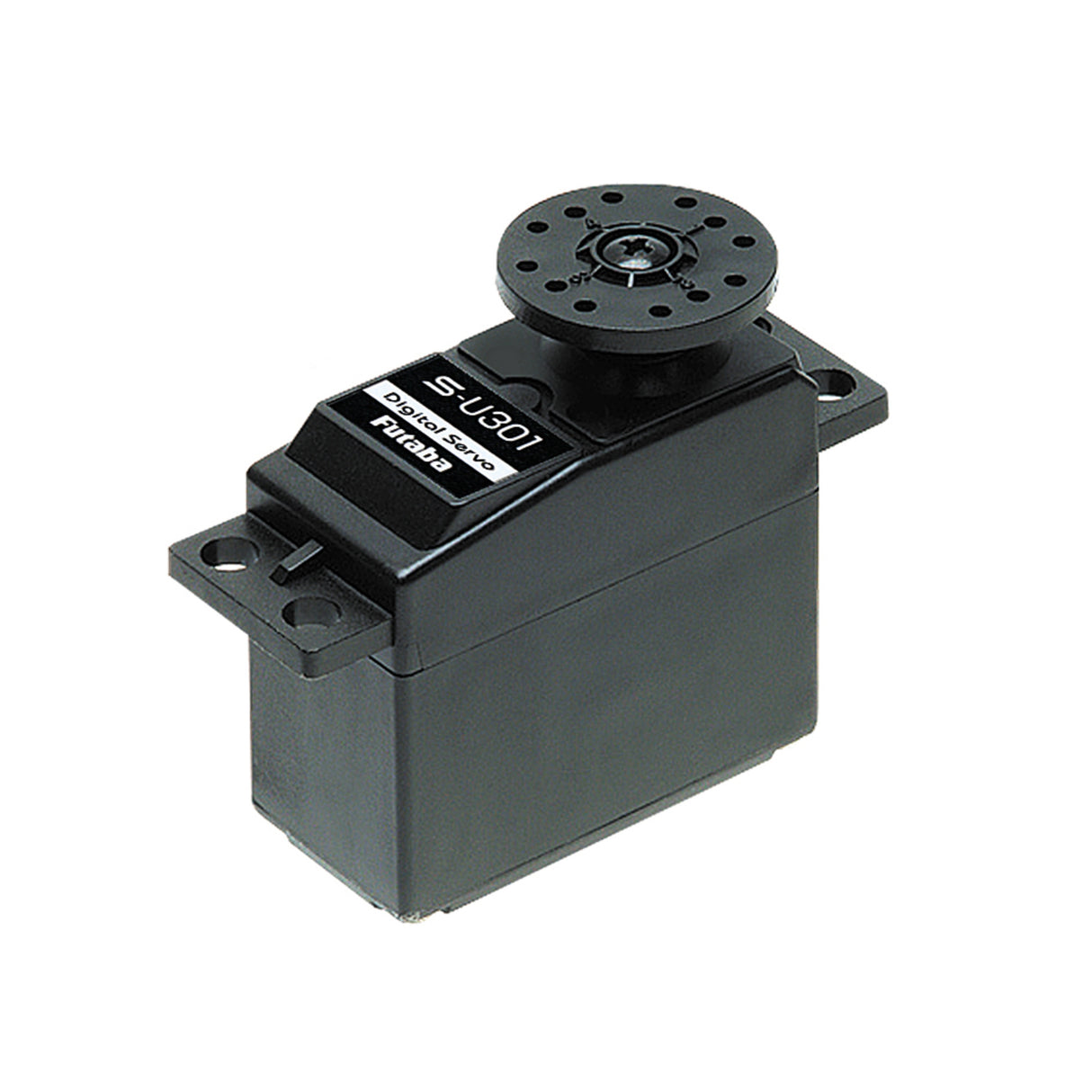

S-U301 Standard Digital Servo PWM/S.BUS2 3.9kg 0.16s 4.8v - 7.4V

Max Torque

3.9kg

Max Speed

0.16s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

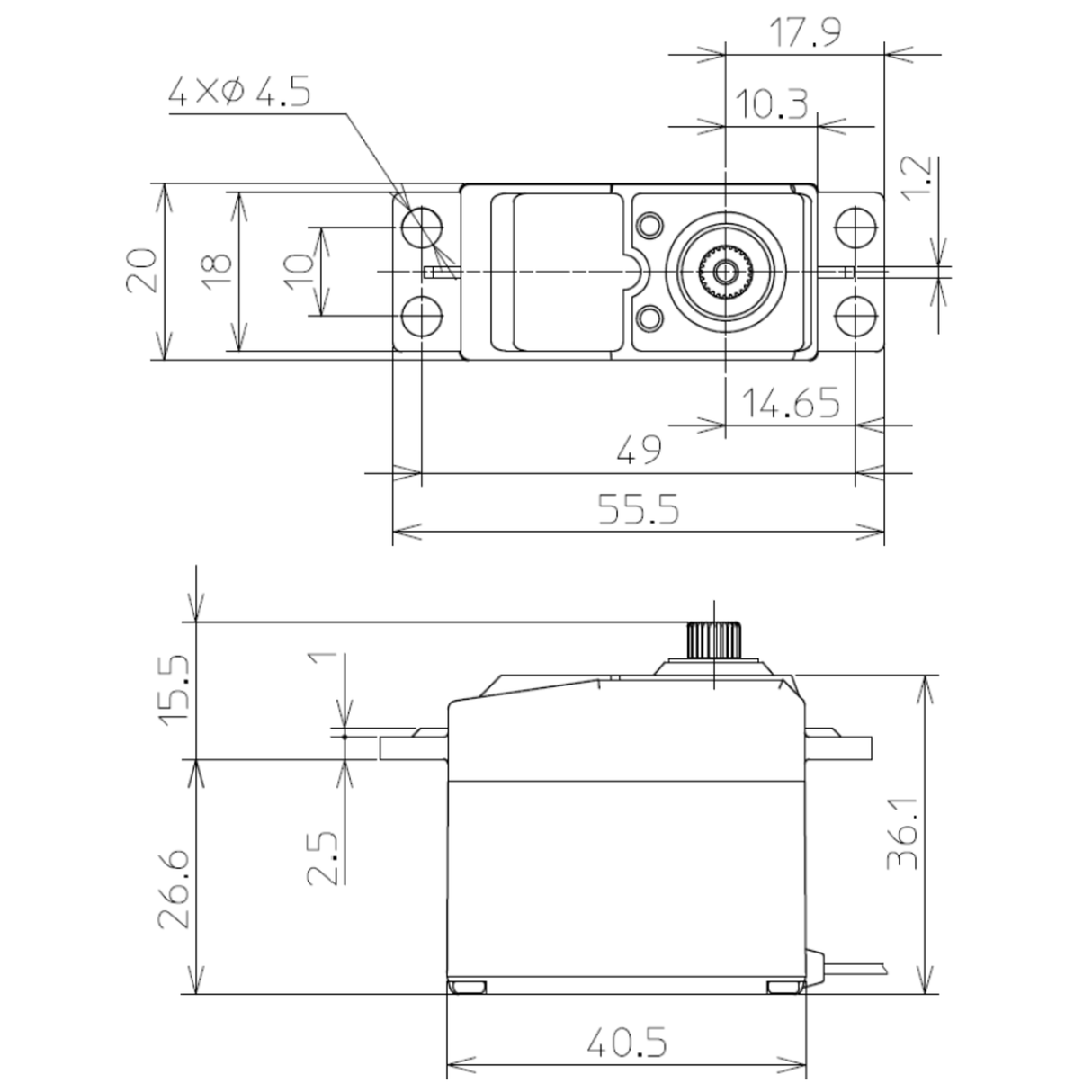

L×W×H

40.5×20×36.1mm

Weight

36 g

Voltage

4.8V - 7.4V

Gears

Resin

Spline

25T (Ø6mm)

£26⁵⁰

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

S-U301

The S-U301 Standard Digital Servo supports PWM/S.BUS2 with 3.9kgf·cm torque and 0.16s/60° speed at 7.4V. It measures 40.5×20.0×36.1mm, weighs 36g, and operates between 4.8V and 7.4V.

S-U301– Standard Digital and S.Bus2 Capable Airplane Servo with Accessory Pack

Plastic Gearing
6mm/25T Spline
3Pole Cored Motor

Speed:
0.18 sec/60° (6.6V)
0.16 sec/60° (7.4V)

Torque:
3.5 kgf/cm (6.6V)
48.6 ozf/in (6.6V)
3.9 kgf/cm (7.4V
54.2 ozf/in (7.4V)

Size:
40 x 20 x 36.1 mm
1.59 x 0.79 x 1.42 in

Weight:
36 g
1.30 oz

Contents

1x S-U301 Digital Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Standard
Dimensions

40.5×20×36.1mm
Circuit

Digital
Weight

36 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

3.9
Max Speed (sec/60°)

0.16
Spline

25T (Ø6mm)
Motor

Cored
Gears

Resin
Motor Detail

3-Pole Cored
