SKU: FUT05102674-1-B

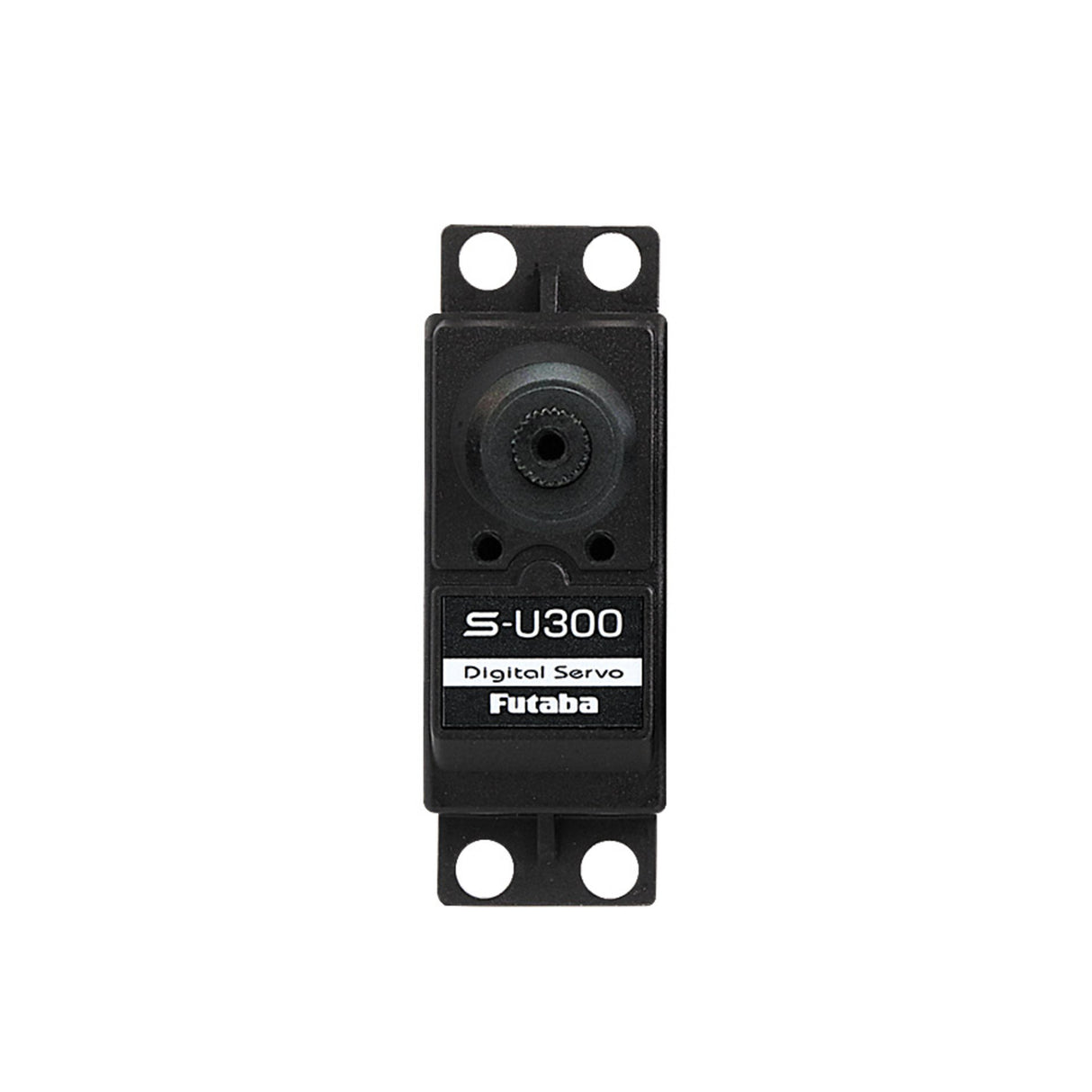

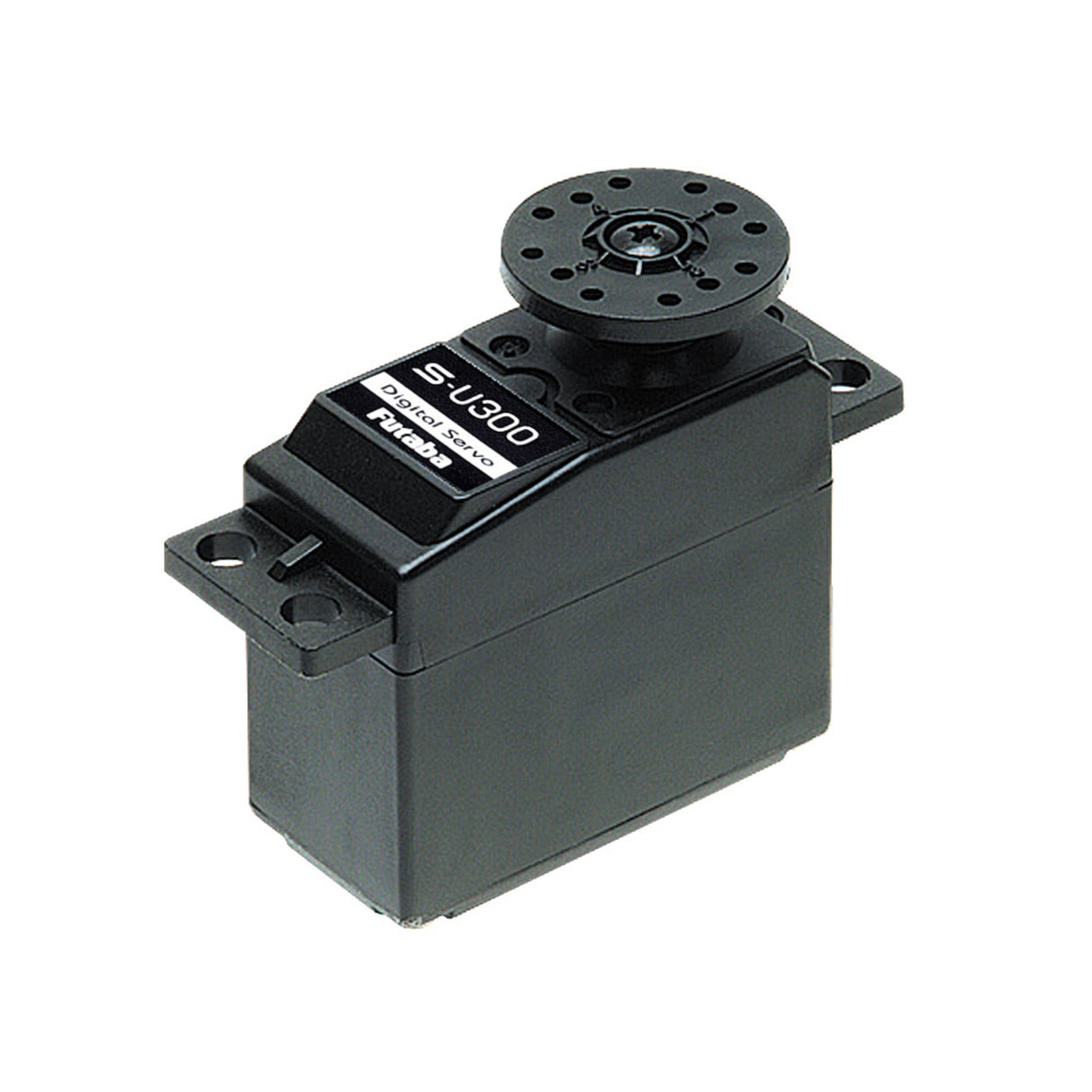

S-U300 Standard Digital Servo PWM/S.Bus2 4.1kg 0.19s 4.8V - 6V (Bulk 10pcs)

Max Torque

4.1kg

Max Speed

0.19s

Command Protocol

Command Protocol

PWM S.Bus S.Bus2

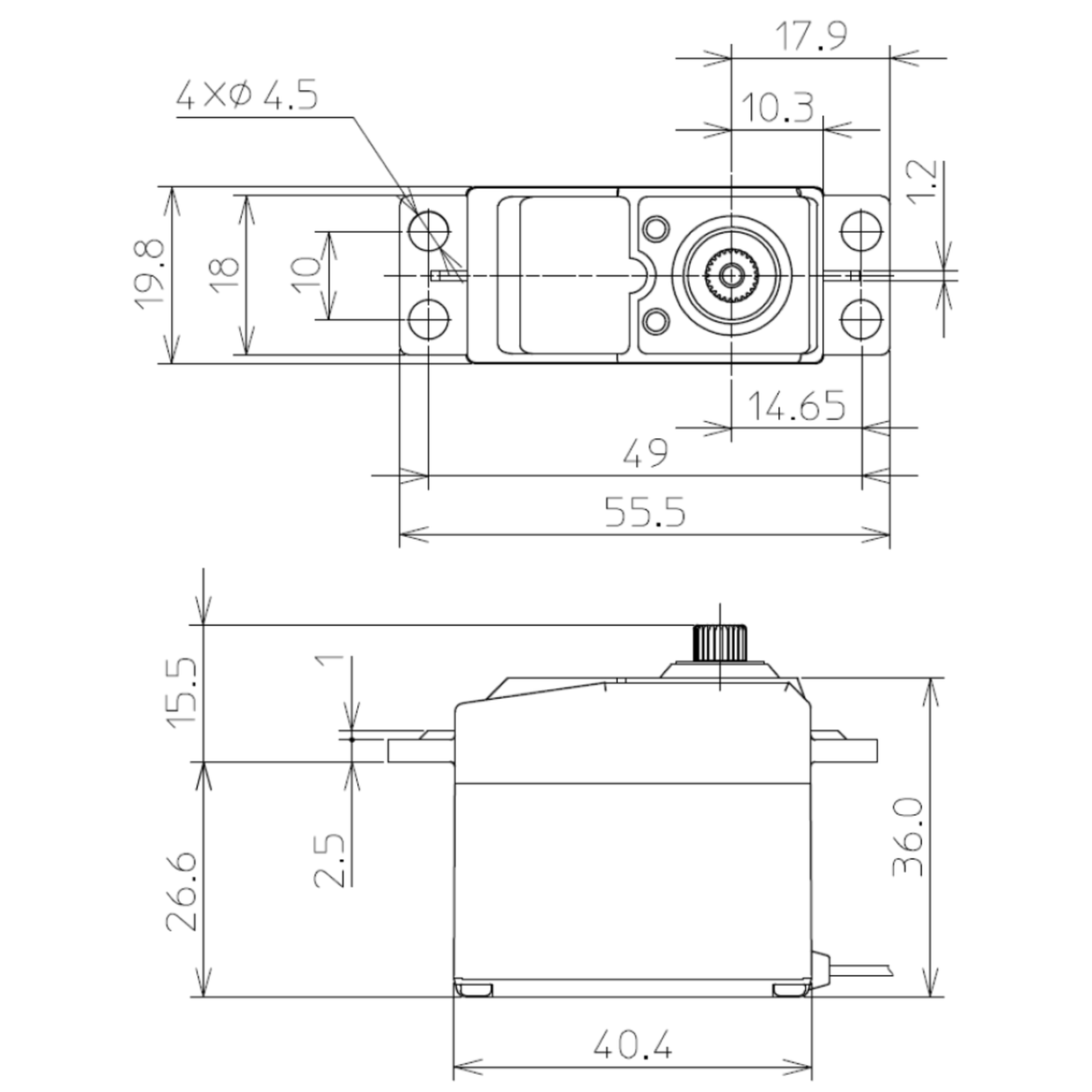

L×W×H

40.4×19.8×36mm

Weight

36 g

Voltage

4.8V - 6.0V

Gears

Resin

Spline

25T (Ø6mm)

£149⁹⁹

VAT included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

S-U300

Digital standard servo for air and surface. Supports S.Bus2

Command Protocol

PWM, S.Bus, S.Bus2
Size

Standard
Dimensions

40.4×19.8×36mm
Circuit

Digital
Weight

36 g
Voltage Range

4.8V - 6.0V
Max Torque (kg/cm)

4.1
Max Speed (sec/60°)

0.19
Spline

25T (Ø6mm)
Motor

Cored
Gears

Resin
Motor Detail

3-Pole Cored

S-U300 Standard Digital Servo PWM/S.Bus2 4.1kg 0.19s 4.8V - 6V (Bulk 10pcs)

£149⁹⁹

Summary

Digital standard servo for air and surface. Supports S.Bus2

Radio

N/A

Protocol

N/A

Command Protocol

PWM, S.Bus, S.Bus2

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Standard

Dimensions (mm)

40.4×19.8×36mm

Circuit

Digital

Weight

36 g

Voltage Range

4.8V - 6.0V

Max Torque (kg/cm)

4.1

Max Speed (sec/60°)

0.19

Spline

25T (Ø6mm)

Motor

Cored

Gears

Resin

Programmable

N/A

Dust/Water Resistance

N/A

Case

N/A

Bearings

N/A

Circuit Detail

N/A

Motor Detail

3-Pole Cored

Gear Detail

N/A

Comes with

N/A
