SKU: FUT05102678-3

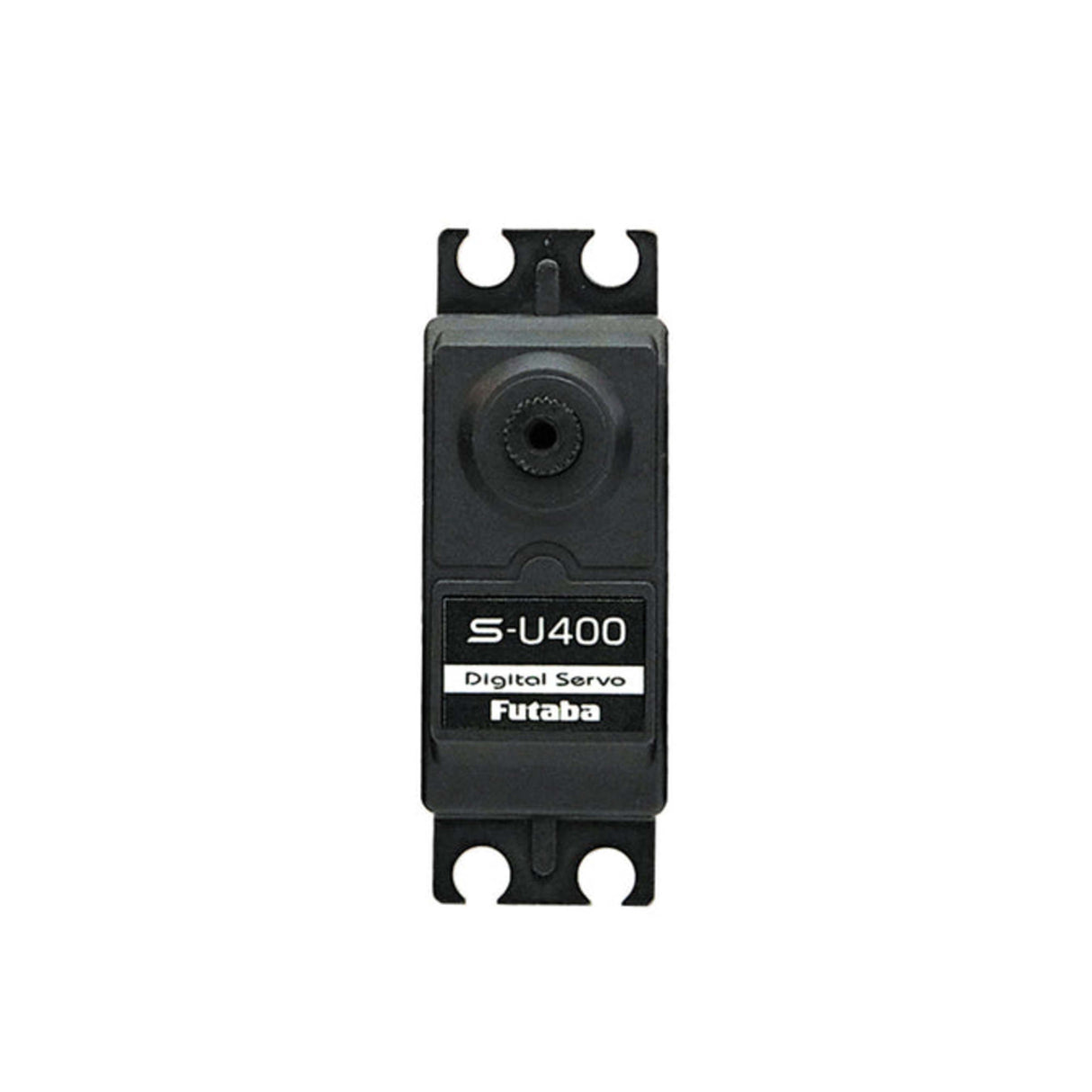

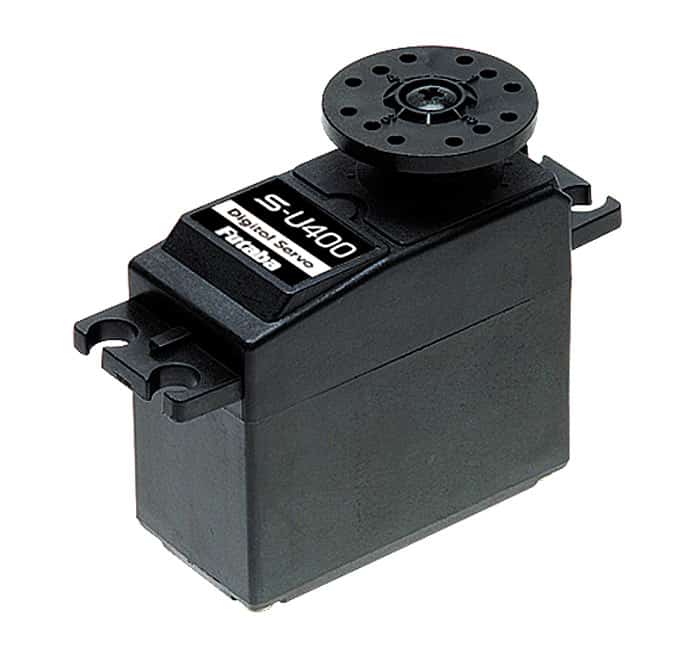

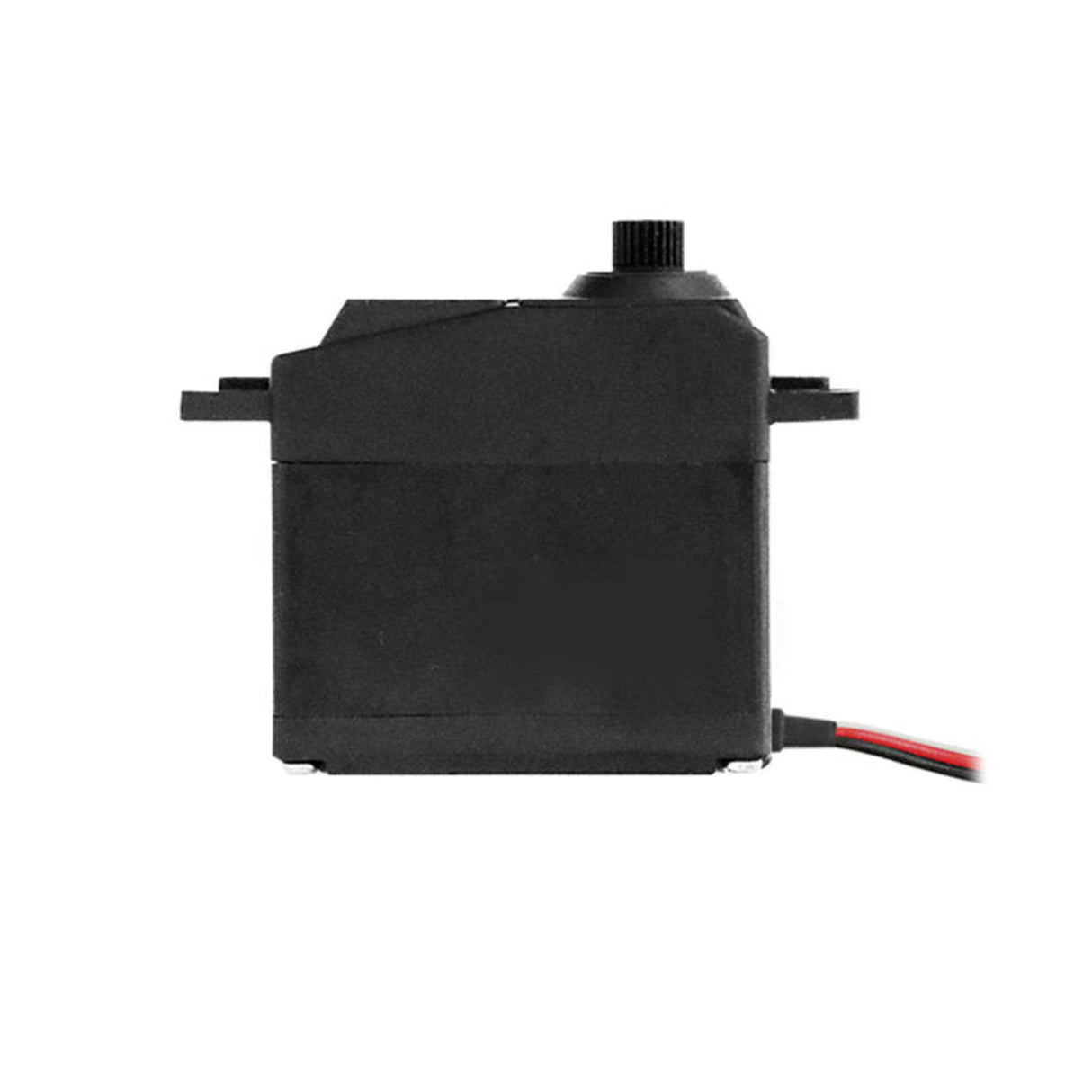

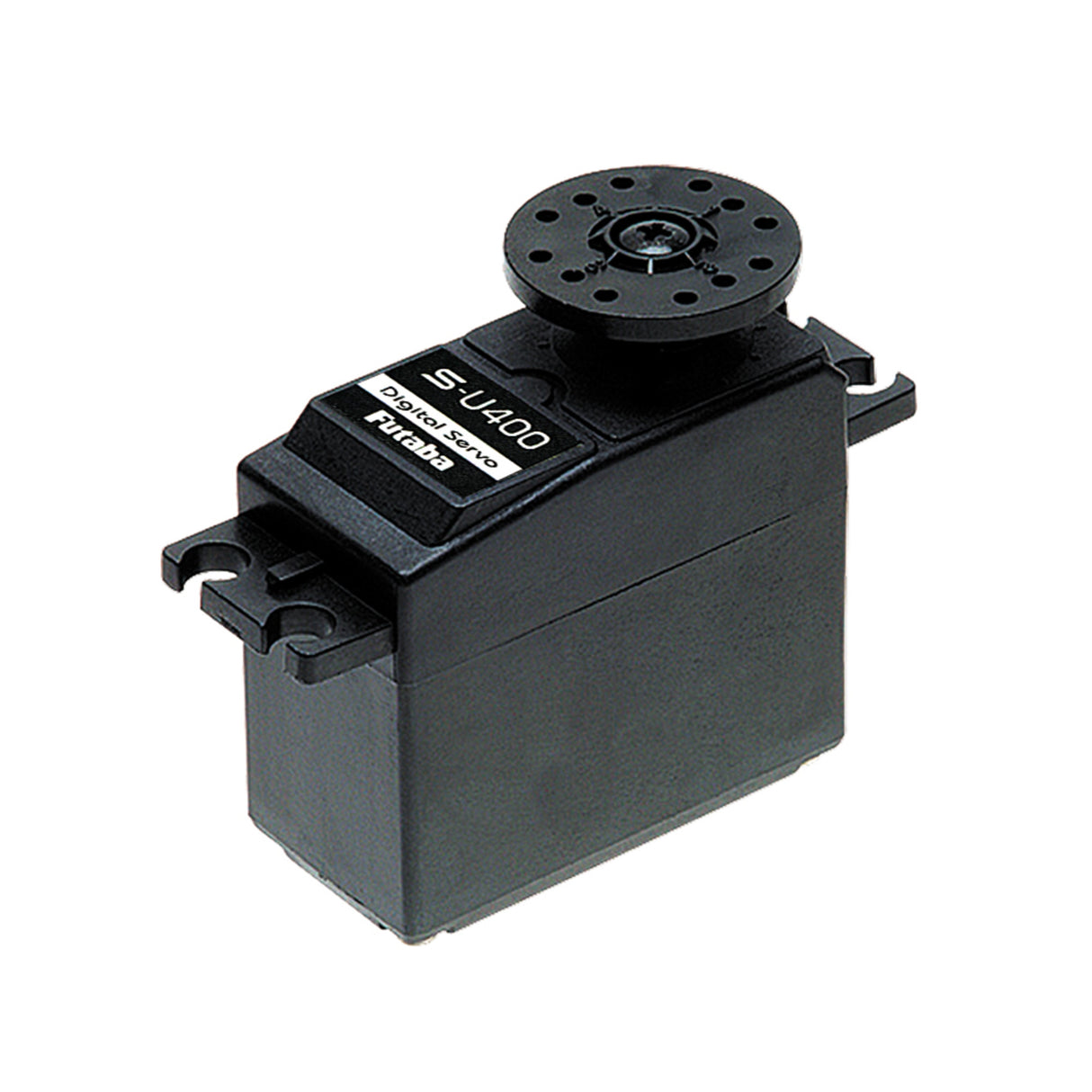

S-U400 Standard Digital Servo PWM/S.BUS2 7.9kg 0.13s 4.8V - 7.4V

Max Torque

7.9kg

Max Speed

0.13s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

40×20×38.1mm

Weight

39 g

Voltage

4.8V - 7.4V

Gears

Resin

Spline

25T (Ø6mm)

£32⁵⁰

VAT included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

S-U400

Digital standard servo for air, helicopter and surface. Supports S.BUS2

Command Protocol

PWM, S.BUS, S.BUS2
Size

Standard

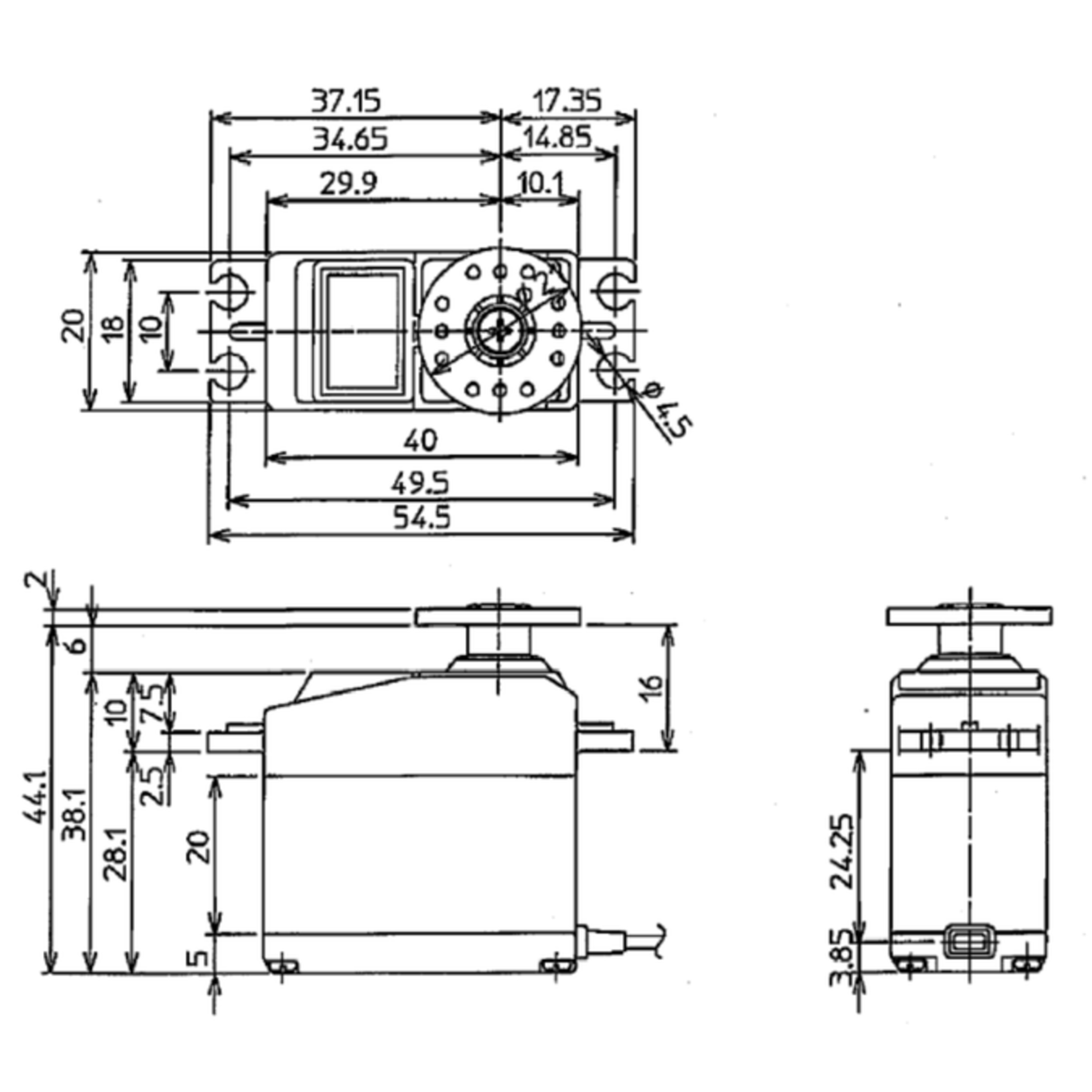

Dimensions

40×20×38.1mm
Circuit

Digital
Weight

39 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

7.9
Max Speed (sec/60°)

0.13
Spline

25T (Ø6mm)
Motor

Cored
Gears

Resin
Motor Detail

3-Pole Cored

S-U400 Standard Digital Servo PWM/S.BUS2 7.9kg 0.13s 4.8V - 7.4V

£32⁵⁰

Summary

Digital standard servo for air, helicopter and surface. Supports S.BUS2

Radio

N/A

Protocol

N/A

Command Protocol

PWM, S.BUS, S.BUS2

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Standard

Dimensions (mm)

40×20×38.1mm

Circuit

Digital

Weight

39 g

Voltage Range

4.8V - 7.4V

Max Torque (kg/cm)

7.9

Max Speed (sec/60°)

0.13

Spline

25T (Ø6mm)

Motor

Cored

Gears

Resin

Programmable

N/A

Dust/Water Resistance

N/A

Case

N/A

Bearings

N/A

Circuit Detail

N/A

Motor Detail

3-Pole Cored

Gear Detail

N/A

Comes with

N/A
