HPS-CB701 Standard Brushless Servo MG PWM/S.BUS2 49kg 0.075s 4.8V - 7.4V
Max Torque
Max Speed
Command Protocol
L×W×H
Weight
Voltage
Gears
Spline
Your local stockist
Your local stockist
Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.
HPS-CB701 Standard Brushless Servo MG PWM/S.BUS2 49kg 0.075s 4.8V - 7.4V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Explore more like this:
HPS-CB701 Standard Brushless Servo MG PWM/S.BUS2 49kg 0.075s 4.8V -...
HPS-CB701
HPS-CB701– S.Bus2 High-Voltage Standard Surface Servo
High Performance Servo with Brushless Motor
Speed:
0.09 sec/60° (6.0V)
0.075 sec/60° (7.4V)
Torque:
42.0 kfg/cm (6.0V)
583.3 ozf/in (6.0V)
49.0 kgf/cm (7.4V)
680.5 ozf/in (7.4V)

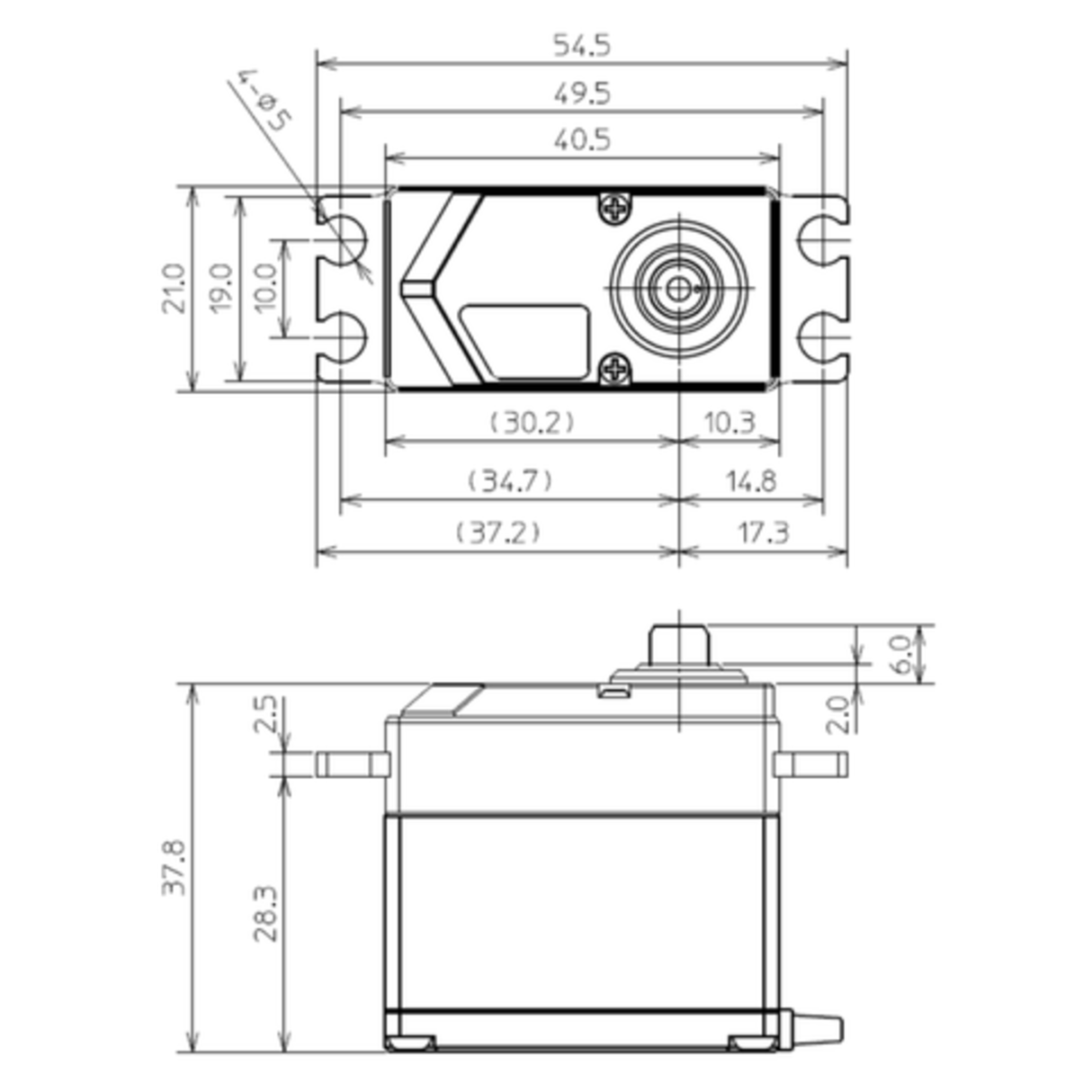

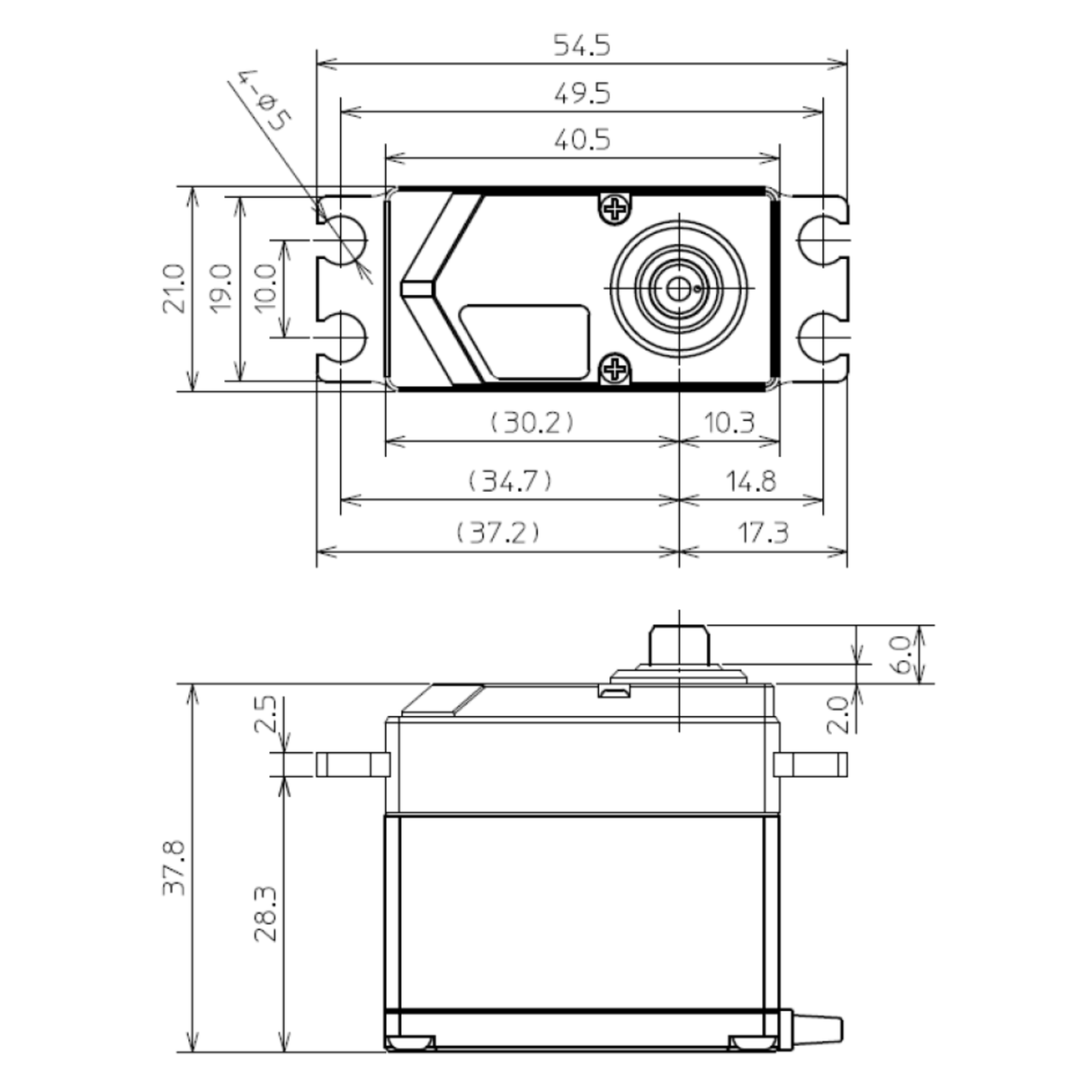

Size:
40.5 x 21.0 x 37.8 mm
1.59 x 0.83 x 1.49 in
Weight:
75 g
2.65 oz
Rated Voltage:
DC 6.0V - 7.4V
Operating Voltage:
DC 4.8 - 8.4V
NO DRY BATTERY OR BEC USE
ONLY FOR RC CARS SMALLER THAN 1/5 SCALE
Contents
- 1x HPS-CB701 Standard Brushless Servo
- Horns
- Mounting Hardware
-
Command ProtocolPWM, S.BUS, S.BUS2
-
Size
-
Dimensions
-
Circuit
-
Weight
-
Voltage Range
-
Max Torque (kg/cm)
-
Max Speed (sec/60°)
-
Spline
-
Motor
-
Gears
-
Case
-
Bearings
-
Motor Detail
-
Gear Detail
