SKU: FUT05102718-3

HPS-HC701 Low Profile Brushless Servo PWM/S.BUS2 27.0kg 0.07s 4.8V - 7.4V

Max Torque

30.0kg

Max Speed

0.07s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

40.5×21×26.2mm

Weight

56 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£214⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Low Profile Servos Ultra Response (UR) Servos for Helis

HPS-HC701

HPBLS low profile helicopter 500-800 3D/F3C cyclic servo, brushless Motor (1520uS/760uS switchable). Supports S.BUS2

High Performance cyclic Servo with Brushless Motor (1520uS/760uS switchable)

1520uS:

Speed:
0.07 sec/60° (7.4V)
0.08 sec/60° (6.6V)

Torque:
30.0gf・cm (7.4V)
26.5kgf・cm (6.6V)
416.6ozf・in (7.4V)br>368.0ozf・in (6.6V)

760uS:

Speed:
0.07 sec/60° (7.4V)
0.08 sec/60° (6.6V)

Torque:
27.0kgf・cm (7.4V)
24.0kgf・cm (6.6V)
375.0ozf・in (7.4V)br>333.3ozf・in (6.6V)

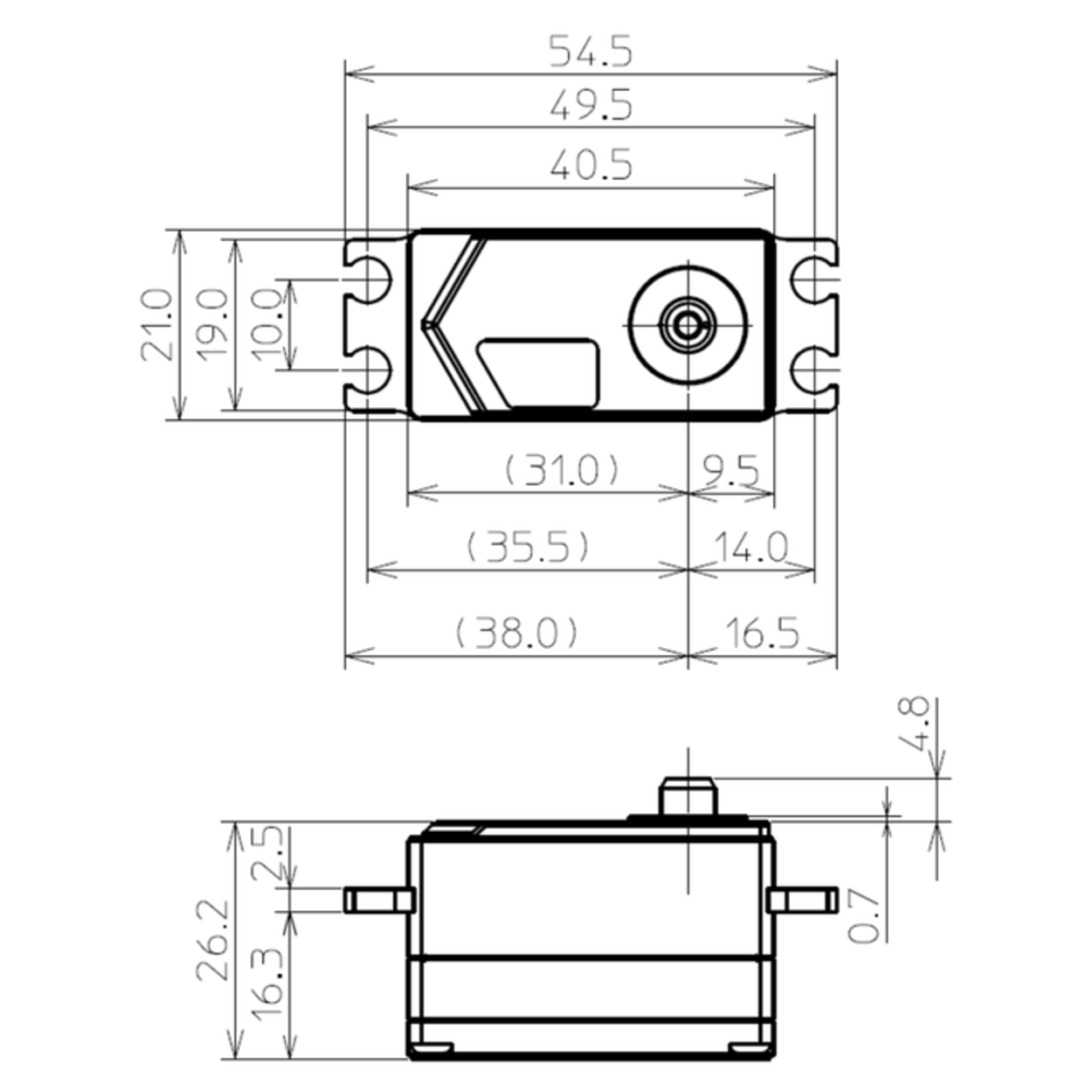

Dimensions:
40.5 x 21.0 x 26.2 mm
1.59 x 0.83 x 1.03 in

Weight:
54 g
1.90 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY USE

Contents

1x HPS-HC701 Low Profile Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Low Profile
Dimensions

40.5×21×26.2mm
Circuit

Digital
Weight

56 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

30
Max Speed (sec/60°)

0.07
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

Upper/middle/lower Aluminium case
Bearings

Dual Ball Bearing
Motor Detail

HPS motor
Gear Detail

Metal 1-3 stage gear. High strength metal final stage gear
