SKU: FUT05102719-3

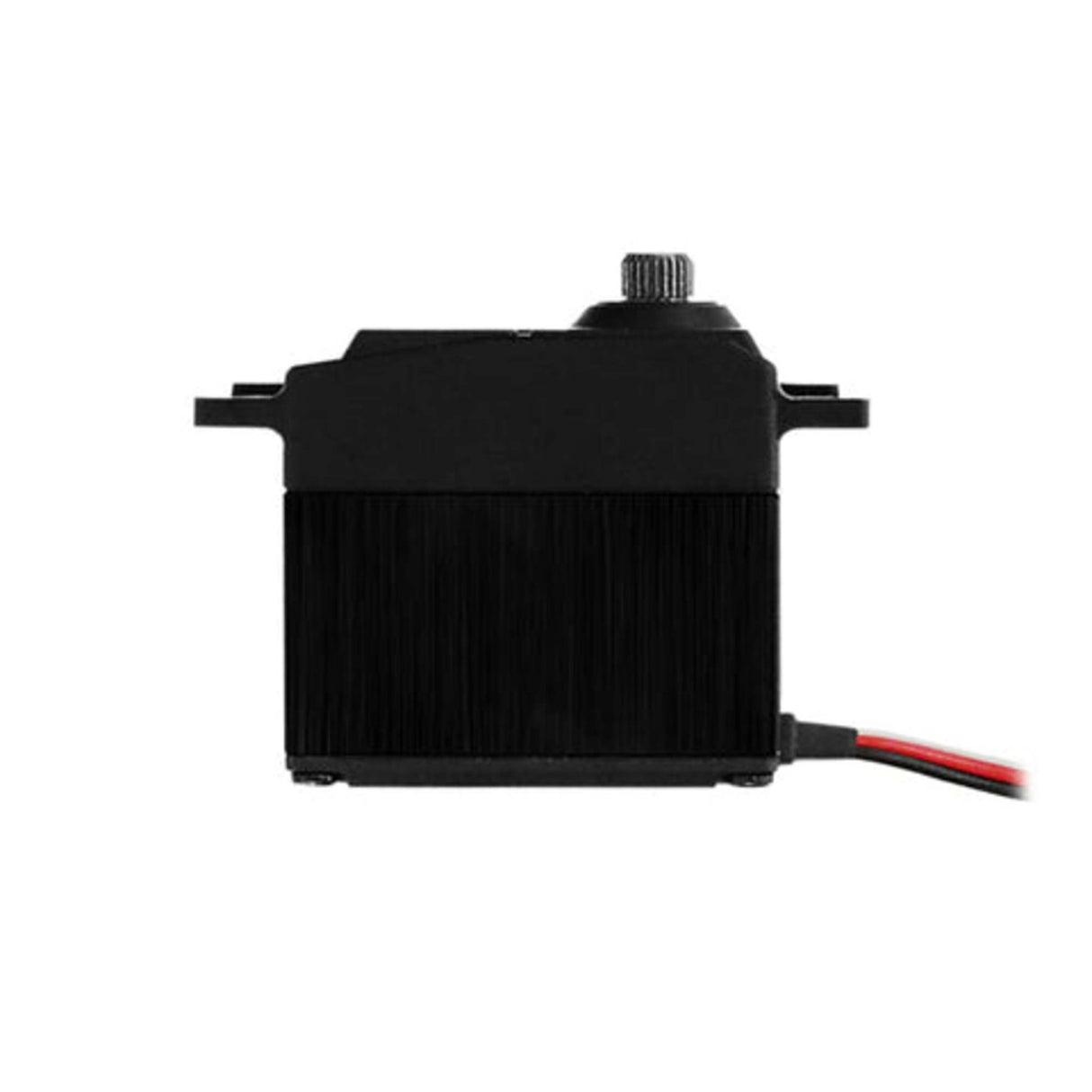

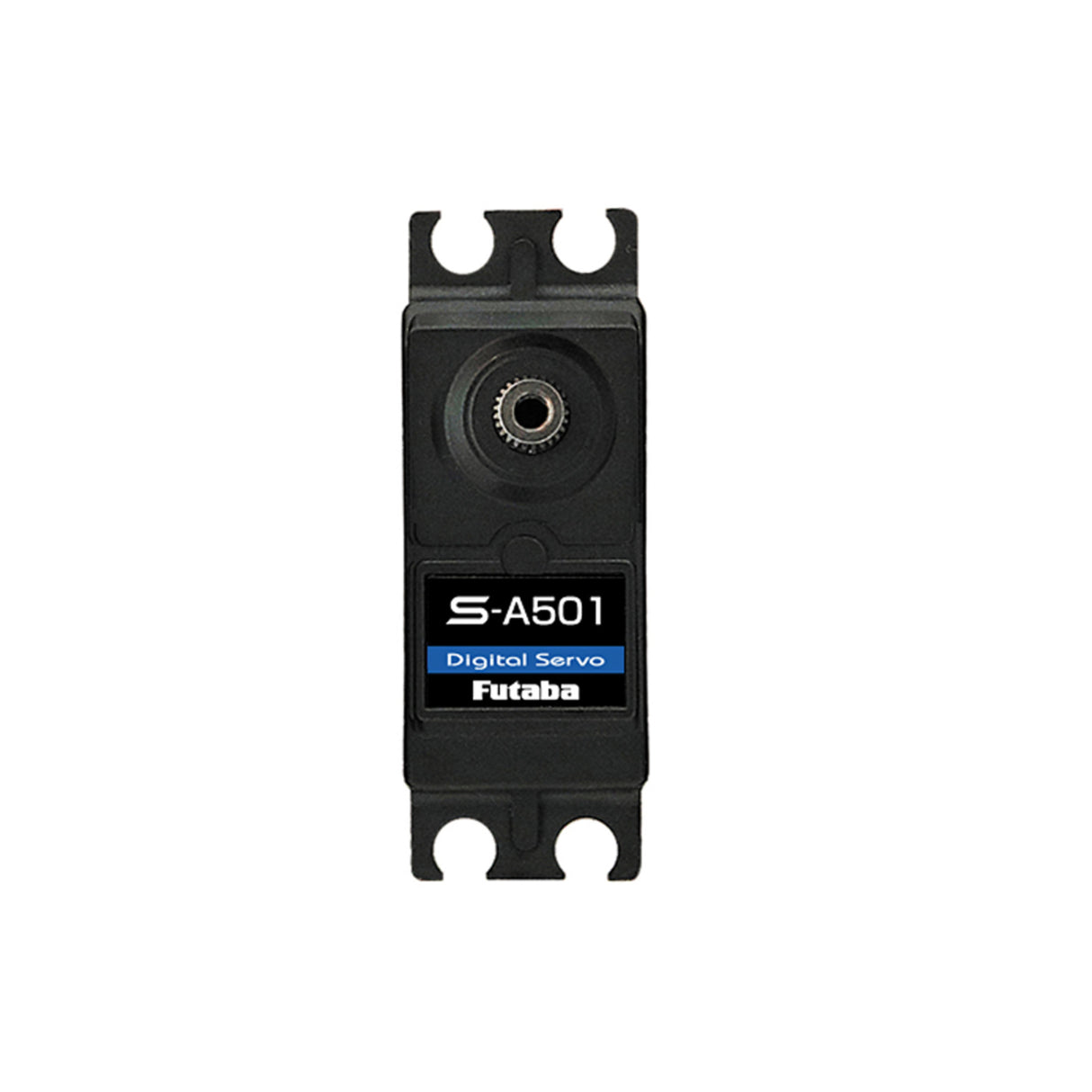

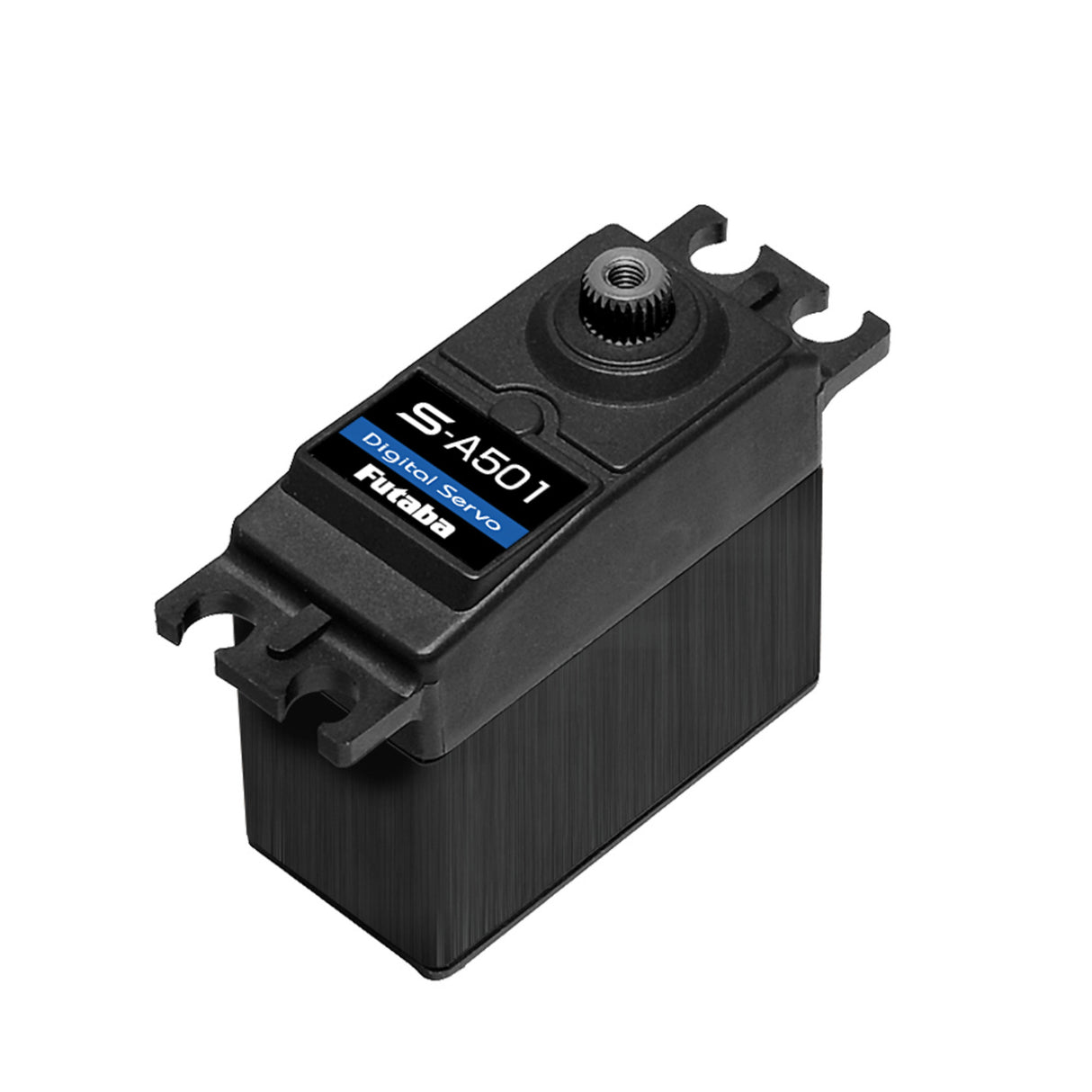

S-A501 Standard Coreless Servo PWM/S.BUS2 16.8kg 0.11s 4.8V - 7.4V

Max Torque

16.8kg

Max Speed

0.11s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

40×20×36.8mm

Weight

61 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£114⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

S-A501

Digital coreless standard servo for 30cc class aircraft. Supports S.BUS2

S-A501– S.Bus2 Coreless Digital Airplane Servo

Metal Gears w/ bearing

Speed:
0.13 sec/60° (6.0V)
0.11 sec/60° (7.4V)

Rated Voltage:
6.0 - 7.4V

Torque:
191.7 oz/in (6.0V)
233.4 oz/in (7.4V)

Size:
40.64 x 20.32 x 35.56 mm
1.6 x 0.8 x 1.4 in

Weight:
62.36 g
2.20 oz

Contents

1x S-A501 Standard Coreless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Standard

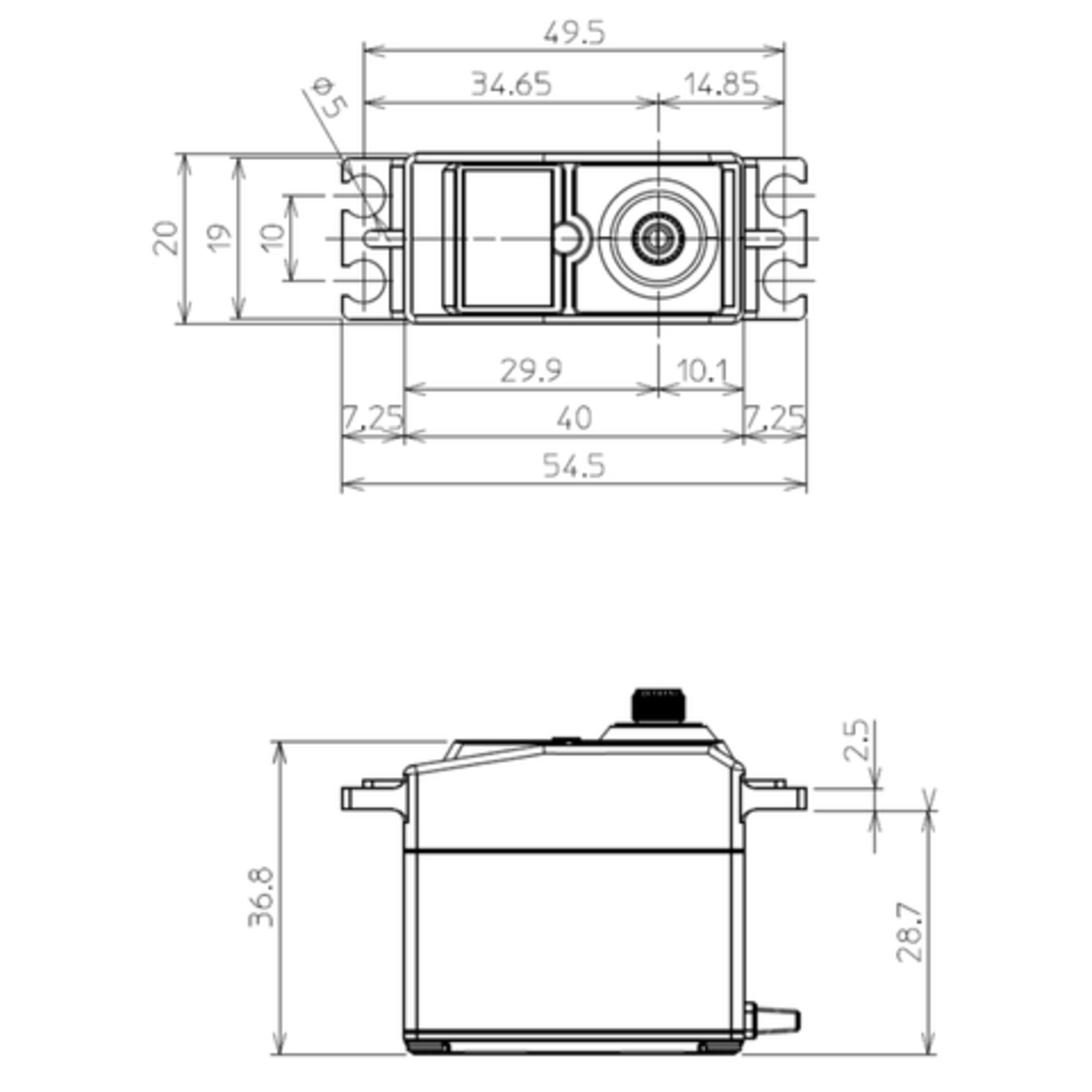

Dimensions

40×20×36.8mm
Circuit

Digital
Weight

61 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

16.8
Max Speed (sec/60°)

0.11
Spline

25T (Ø6mm)
Motor

Coreless
Gears

Metal
Case

Aluminium middle case
Bearings

Dual Ball Bearing
Gear Detail

Metal 2-3 stage gear. Aluminium final stage gear/bearing included
