SKU: FUT05102721-3

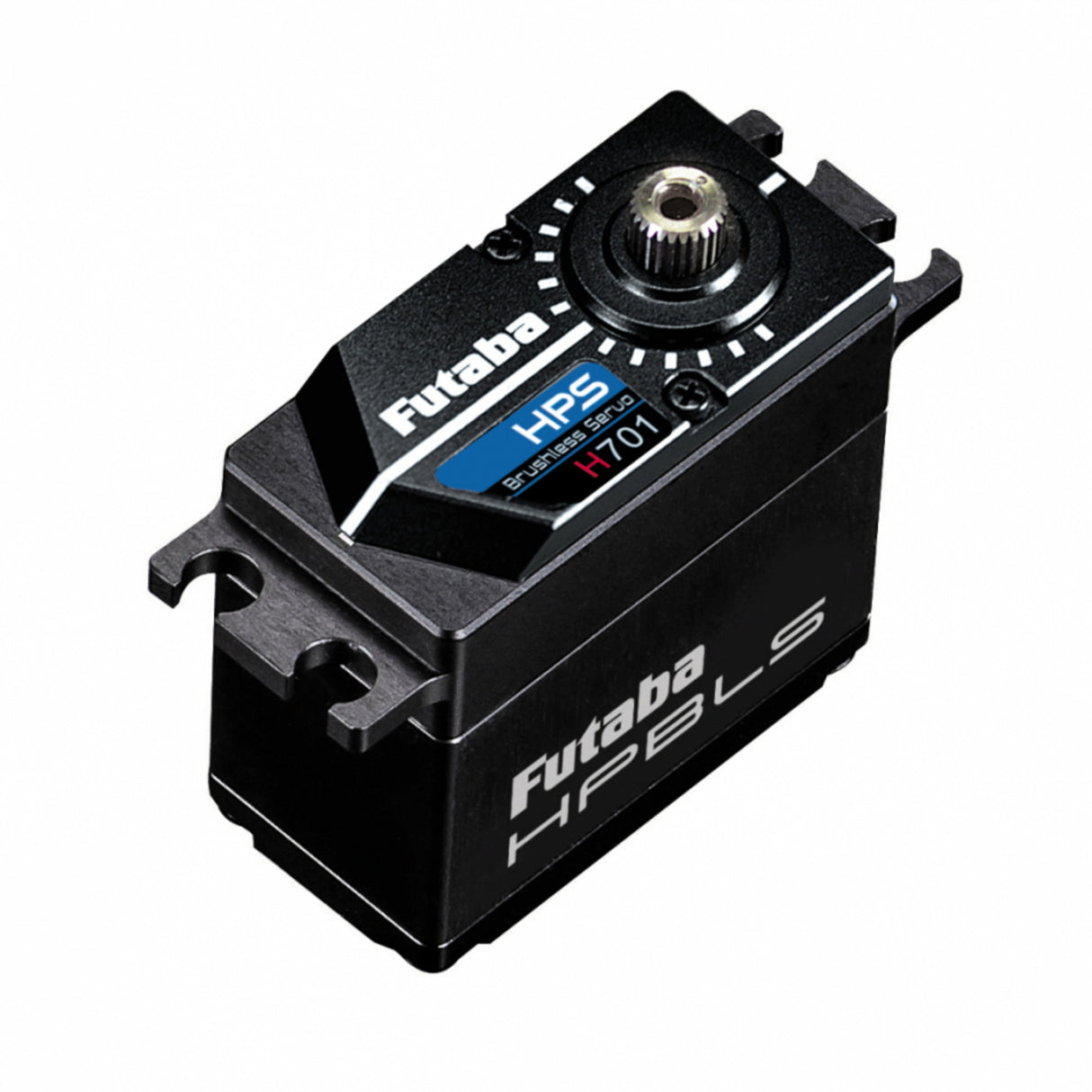

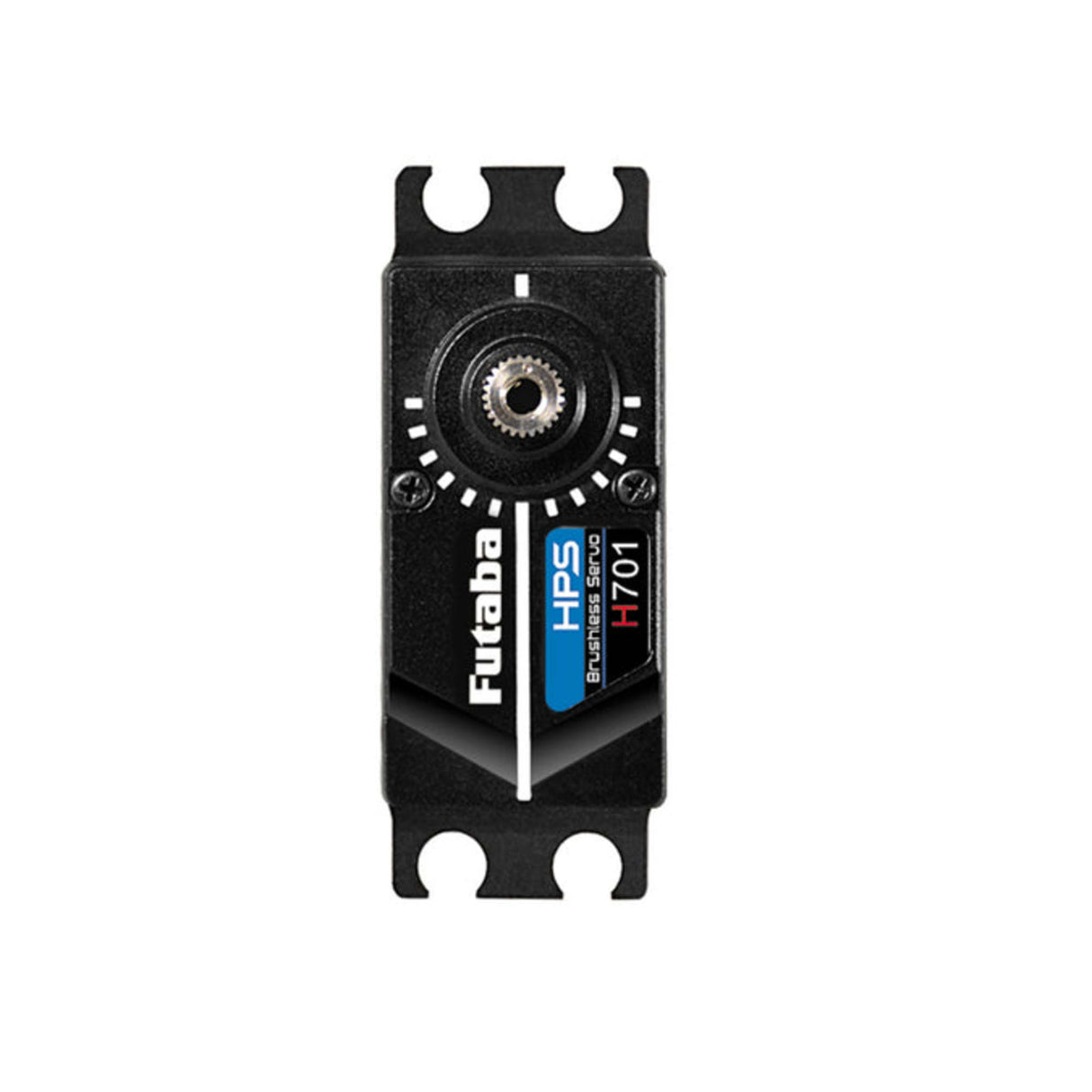

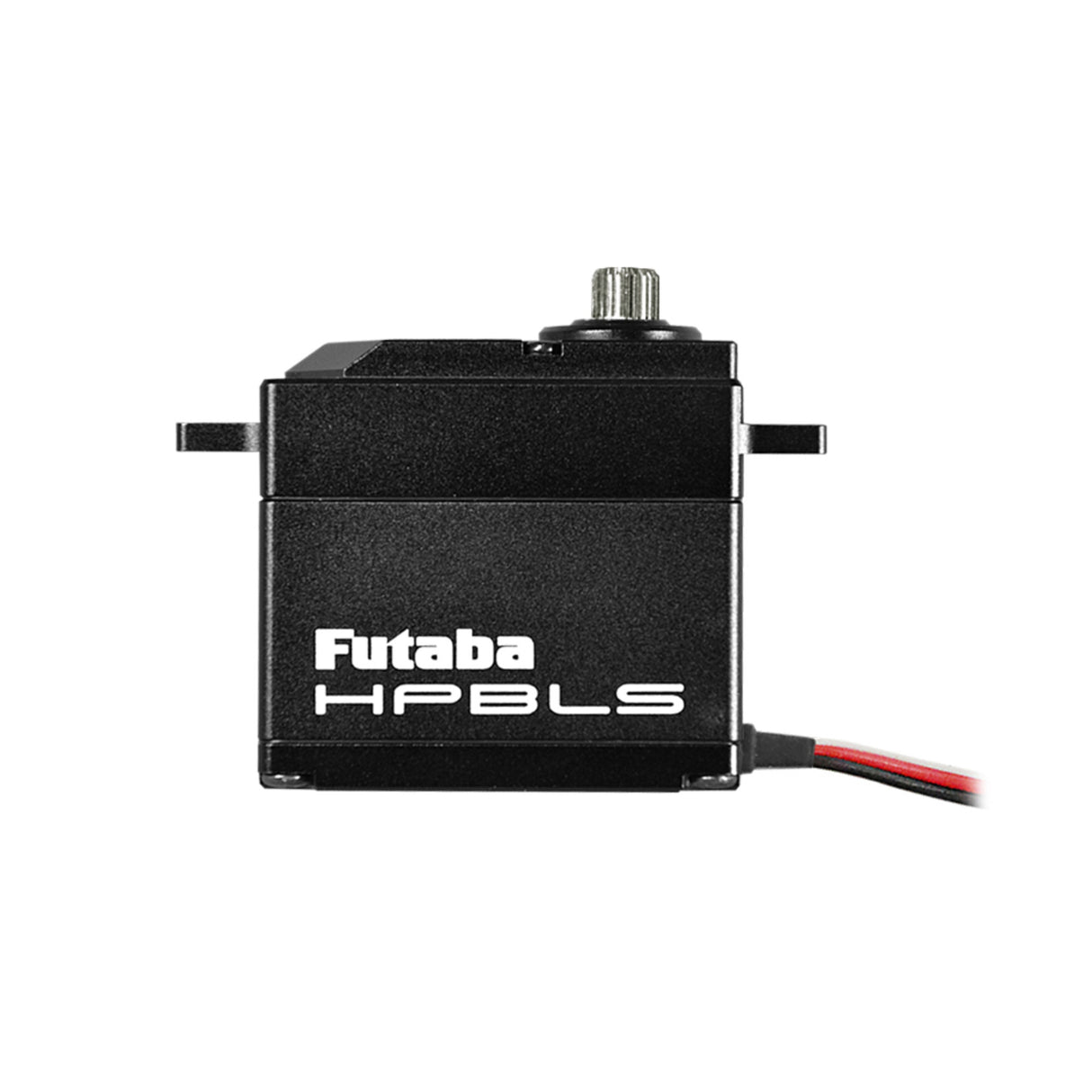

HPS-H701 Standard Brushless Servo PWM/S.BUS2 40.0kg 0.07s 4.8V - 7.4V

Max Torque Max Torque
40.0kg
Max Speed Max Speed
0.07s
Command Protocol Command Protocol
PWM S.BUS S.BUS2

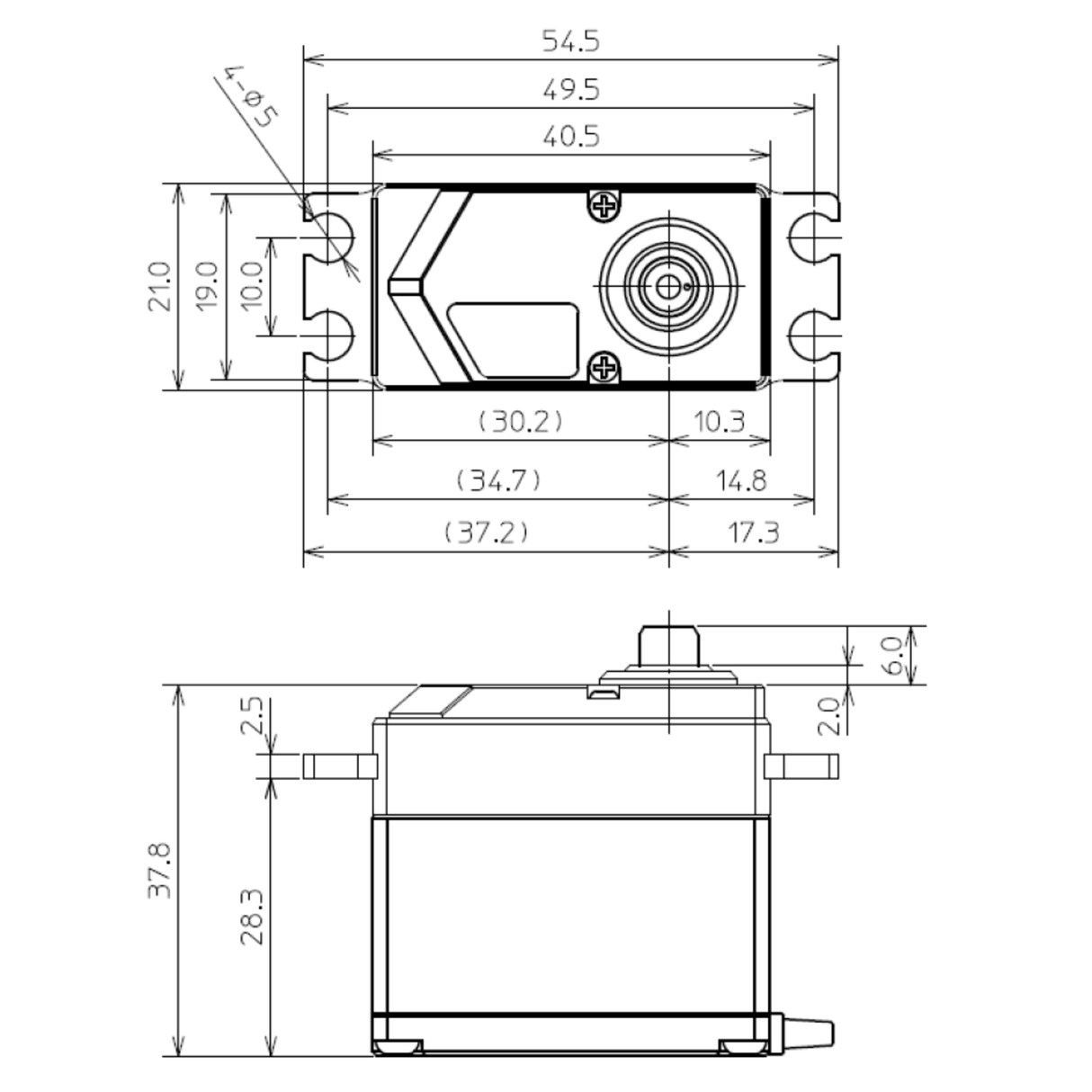

Dimensions L×W×H
40.5×21×37.8mm
Weight Weight
76 g
Voltage Range Voltage
4.8V - 7.4V
Gears Gears
Metal
Spline Spline
25T (Ø6mm)
£21499
Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

HPS-H701

HPBLS series servo for Large helicopters that achieves amazing torque and low power consumption. Supports S.BUS2

  • Command Protocol
    PWM, S.BUS, S.BUS2
  • Size
    Standard
  • Dimensions
    40.5×21×37.8mm
  • Circuit
    Digital
  • Weight
    76 g
  • Voltage Range
    4.8V - 7.4V
  • Max Torque (kg/cm)
    40
  • Max Speed (sec/60°)
    0.07
  • Spline
    25T (Ø6mm)
  • Motor
    Brushless
  • Gears
    Metal
  • Case
    Upper/middle/lower Aluminium case
  • Bearings
    Dual Ball Bearing
  • Motor Detail
    HPS motor
  • Gear Detail
    Metal 1-3 stage gear. Titanium final stage gear

HPS-H701 Standard Brushless Servo PWM/S.BUS2 40.0kg 0.07s 4.8V - 7.4V

£21499

Summary

HPBLS series servo for Large helicopters that achieves amazing torque and low power consumption. Supports S.BUS2

Radio

N/A

Protocol

N/A

Command Protocol

PWM, S.BUS, S.BUS2

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Standard

Dimensions (mm)

40.5×21×37.8mm

Circuit

Digital

Weight

76 g

Voltage Range

4.8V - 7.4V

Max Torque (kg/cm)

40

Max Speed (sec/60°)

0.07

Spline

25T (Ø6mm)

Motor

Brushless

Gears

Metal

Programmable

N/A

Dust/Water Resistance

N/A

Case

Upper/middle/lower Aluminium case

Bearings

Dual Ball Bearing

Circuit Detail

N/A

Motor Detail

HPS motor

Gear Detail

Metal 1-3 stage gear. Titanium final stage gear

Comes with

N/A
