SKU: FUT05102722-3

HPS-AA702 Standard Brushless Servo PWM/S.BUS2 41.0kg 0.075s 4.8V - 7.4V

Max Torque

41.0kg

Max Speed

0.075s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

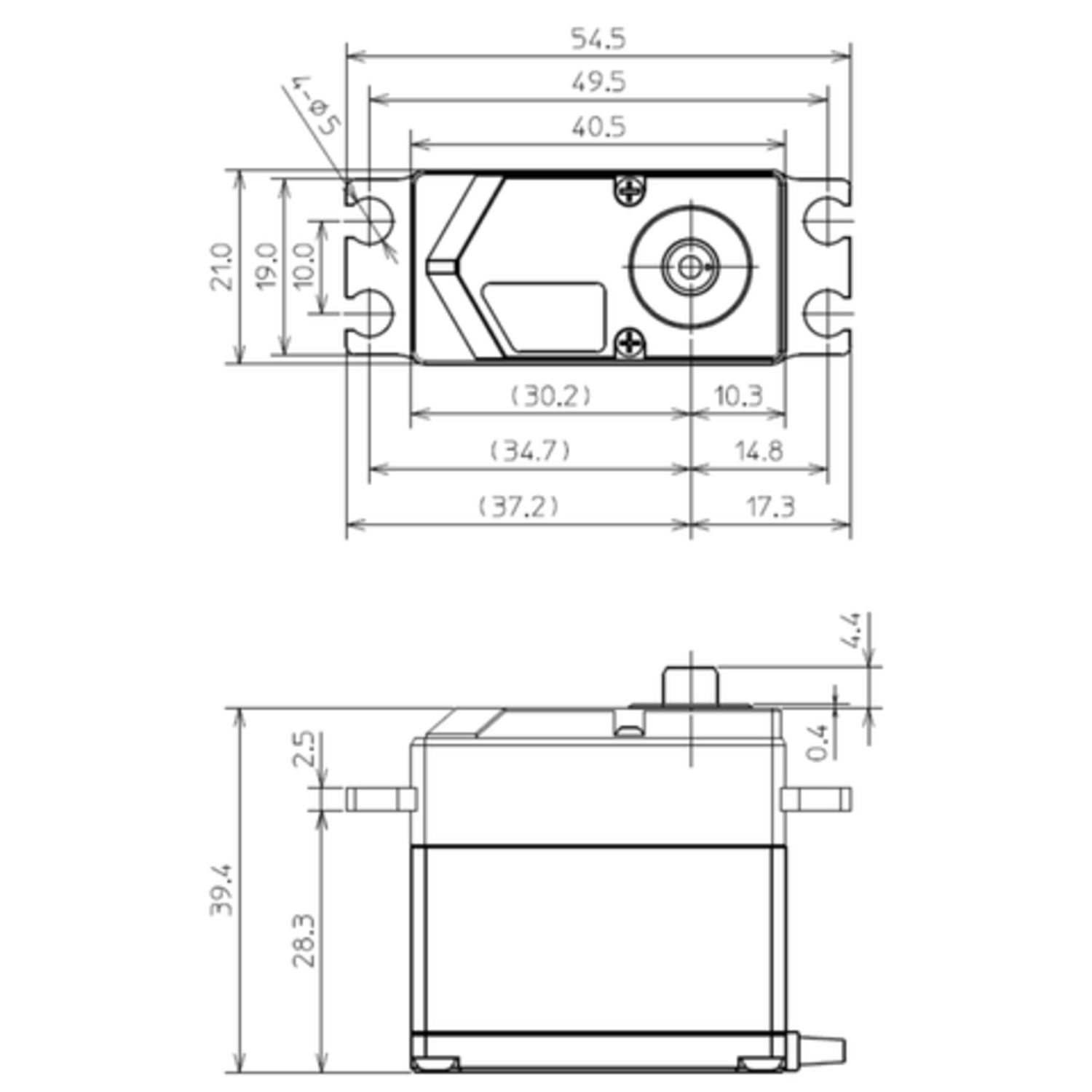

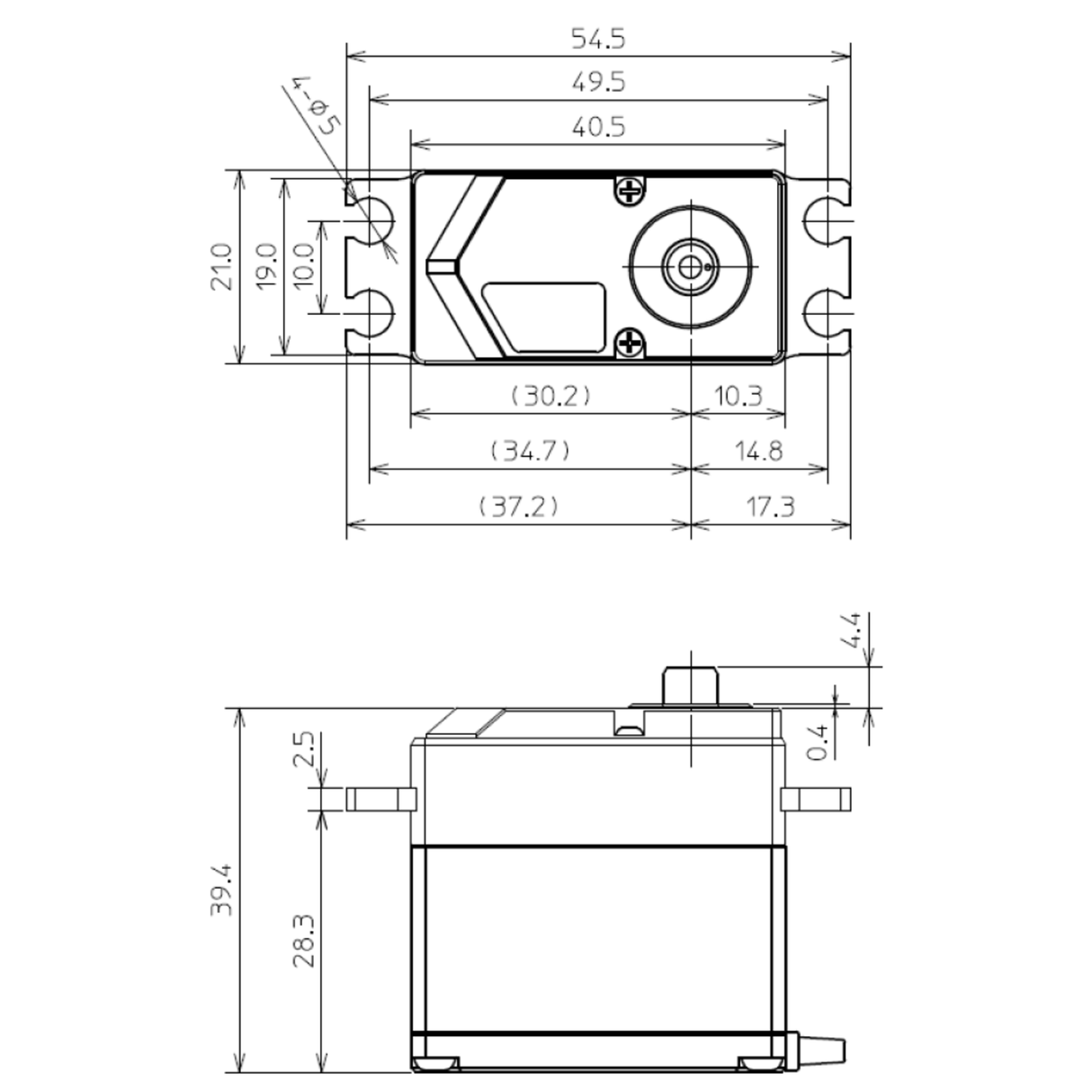

L×W×H

40.5×21×39.4mm

Weight

80 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£199⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

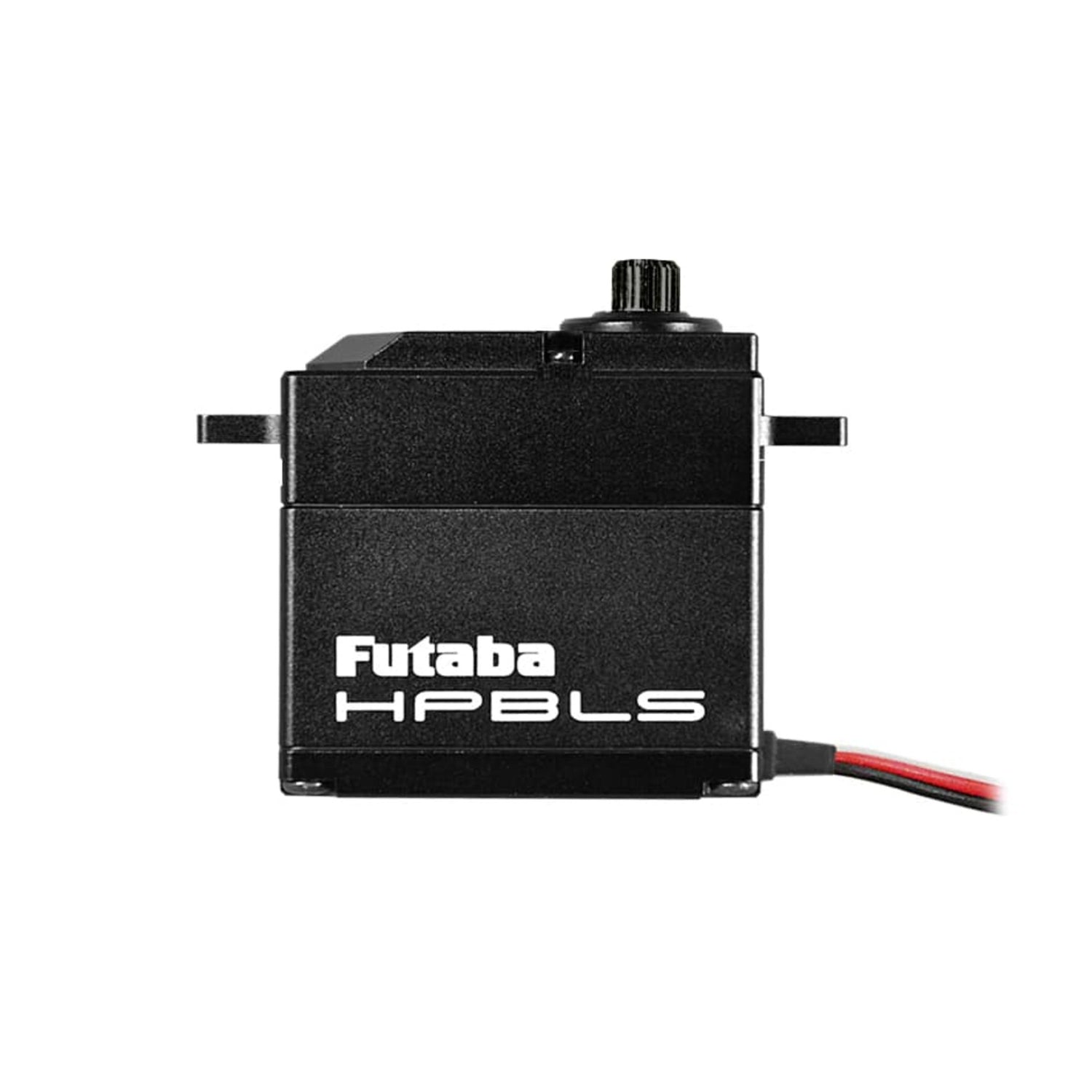

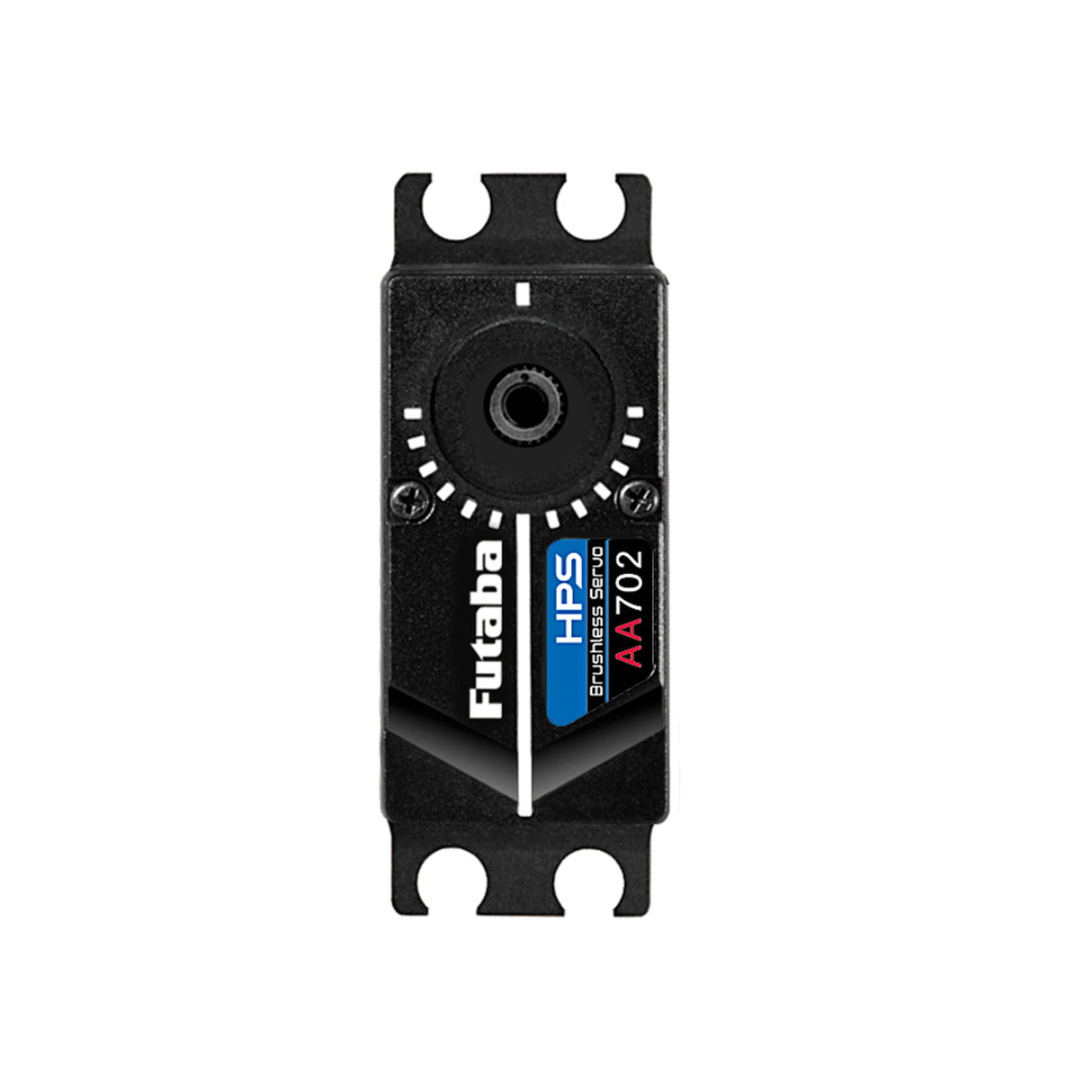

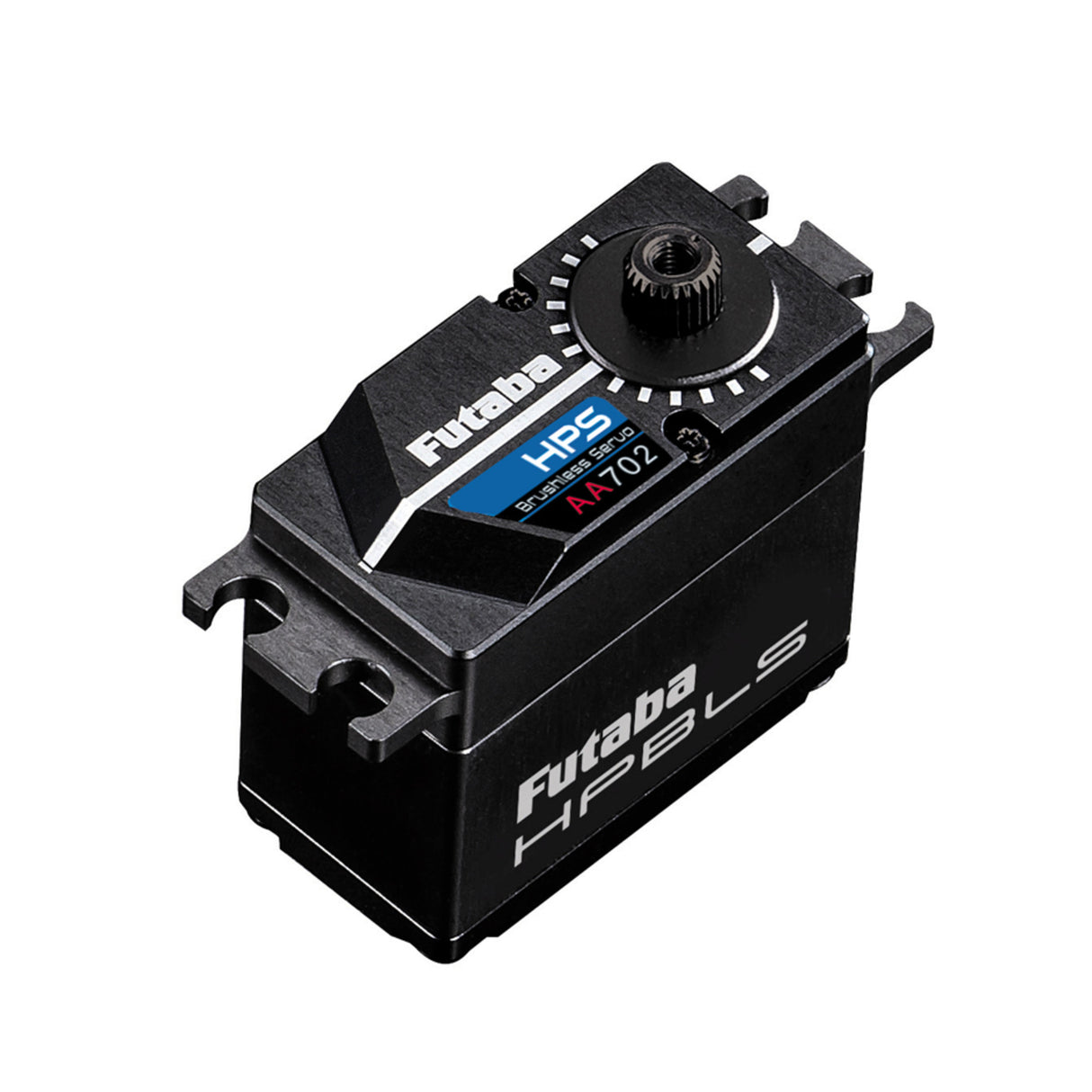

HPS-AA702

HPBLS series servo for large airpcraft that achieves amazing torque and low power consumption. Supports S.BUS2

HPS-AA702– S.Bus2 High-Voltage Standard Airplane Servo
High Performance Servo with Brushless Motor

Speed:
0.08 sec/60° (6.6V)
0.075 sec/60° (7.4V)

Torque:
37.0 kgf/cm (6.6V)
513.86 ozf/in (6.6V)
41.0 kgf/cm 7.4V)
569.41 ozf/in (7.4V)

Size:
40.5 x 21.0 x 39.4 mm
1.59 x 0.83 x 1.55 in

Weight:
80 g
2.82 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE

Contents

1x HPS-AA702 Standard Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Standard
Dimensions

40.5×21×39.4mm
Circuit

Digital
Weight

80 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

41
Max Speed (sec/60°)

0.075
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

Upper/middle/lower Aluminium case
Motor Detail

HPS motor
Gear Detail

Metal 1-3 stage gear. High strength metal final stage gear
