SKU: FUT05102723-3

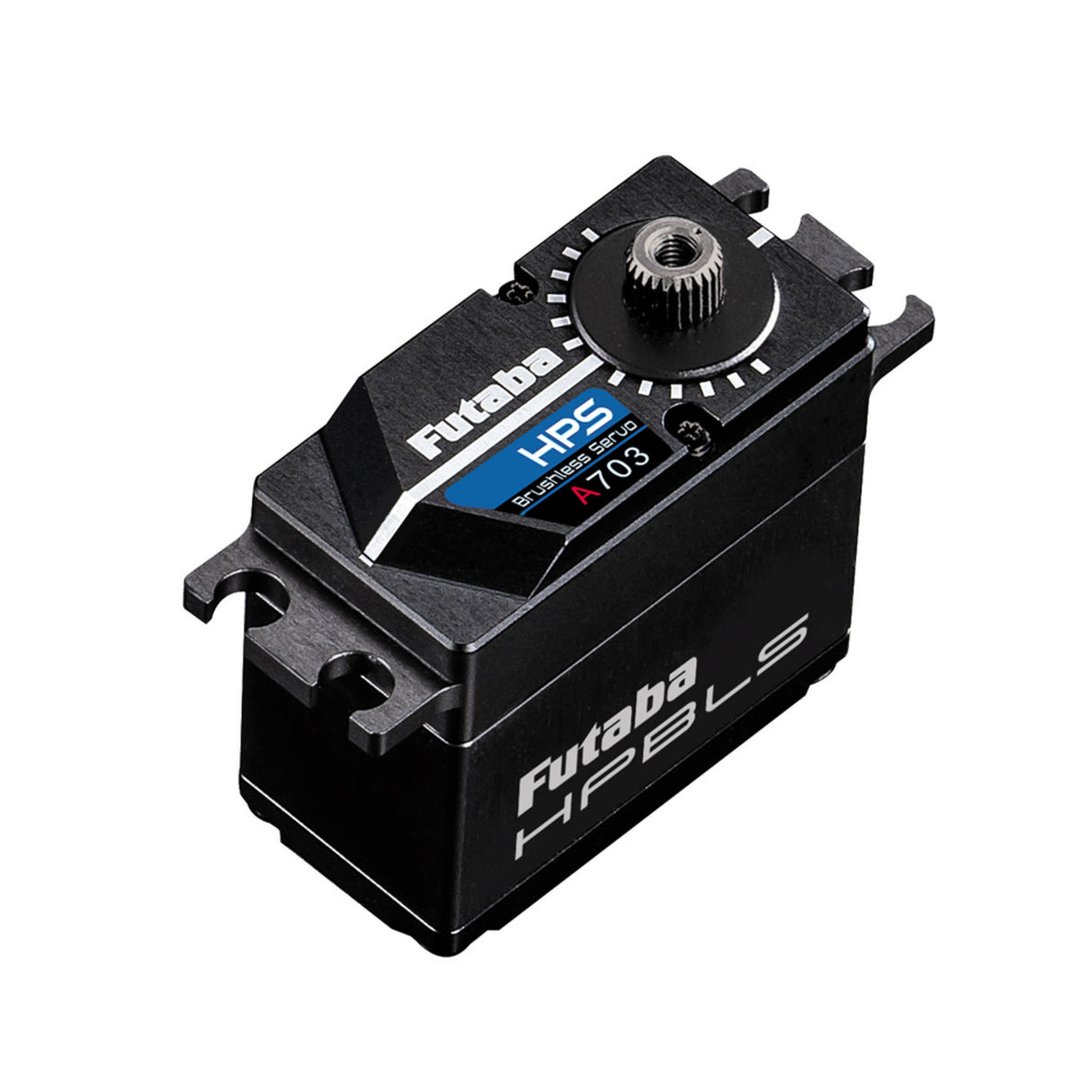

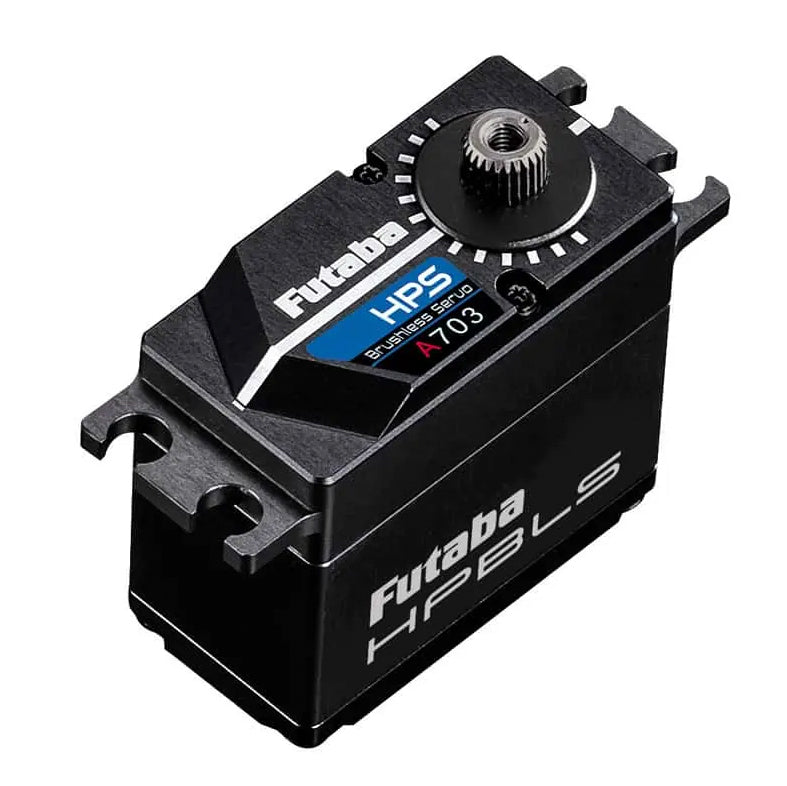

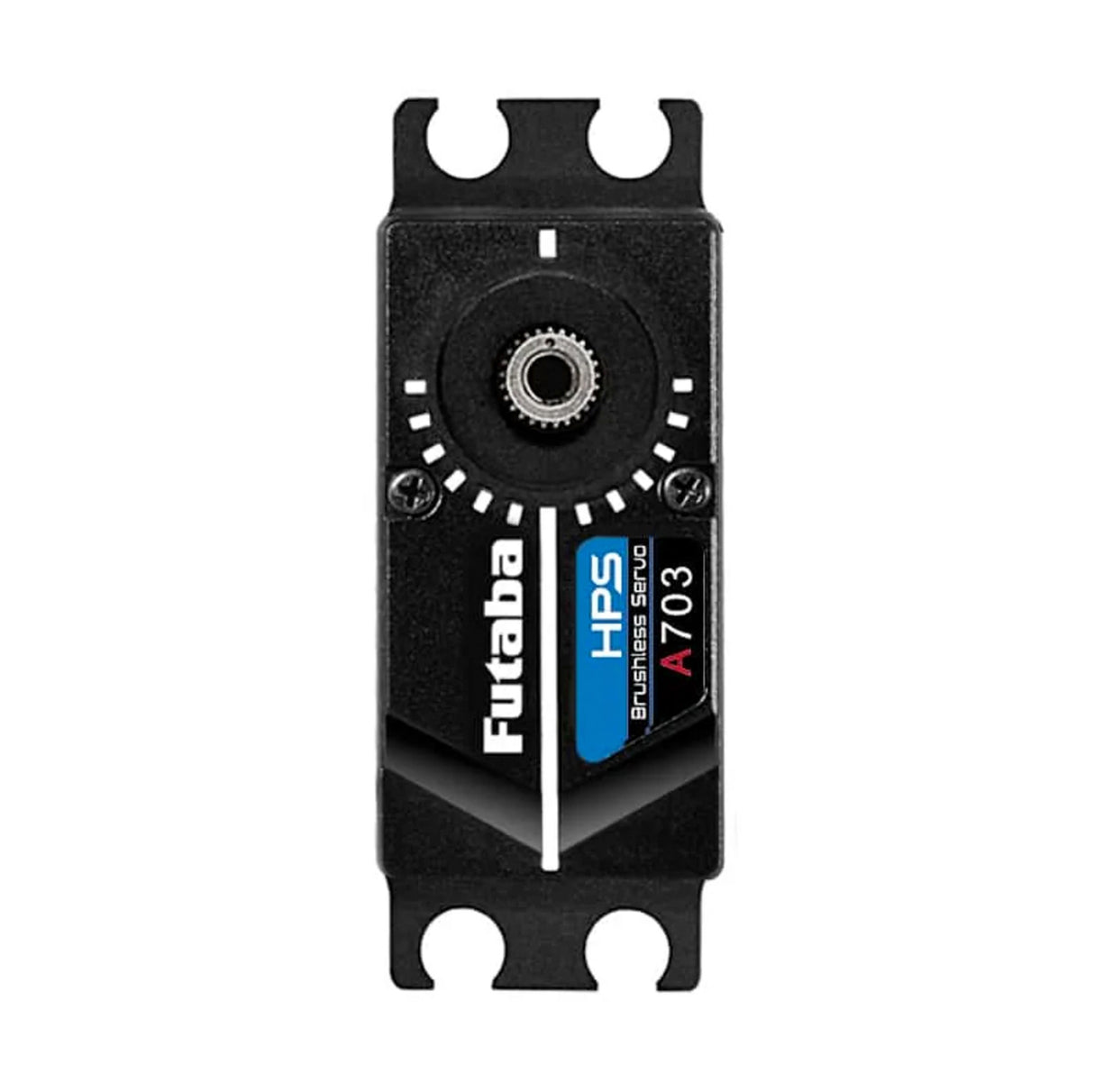

HPS-A703 Standard Brushless Servo PWM/S.BUS2 66kg 0.12s 4.8V - 7.4V

Max Torque

66.0kg

Max Speed

0.12s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

40.5×21×39.4mm

Weight

82 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£199⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

HPS-A703

HPBLS series servo for large aircraft that achieves amazing torque and low power consumption. Supports S.BUS2

HPS-A703– S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo with Brushless Motor

Speed:
0.13 sec/60° (6.6V)
0.12 sec/60° (7.4V)

Torque:
61.0 kgf/cm (6.6V)
847.17.4 ozf/in (6.6V)
66.0 kgf/cm(7.4V)
916.61 ozf/in (7.4V)

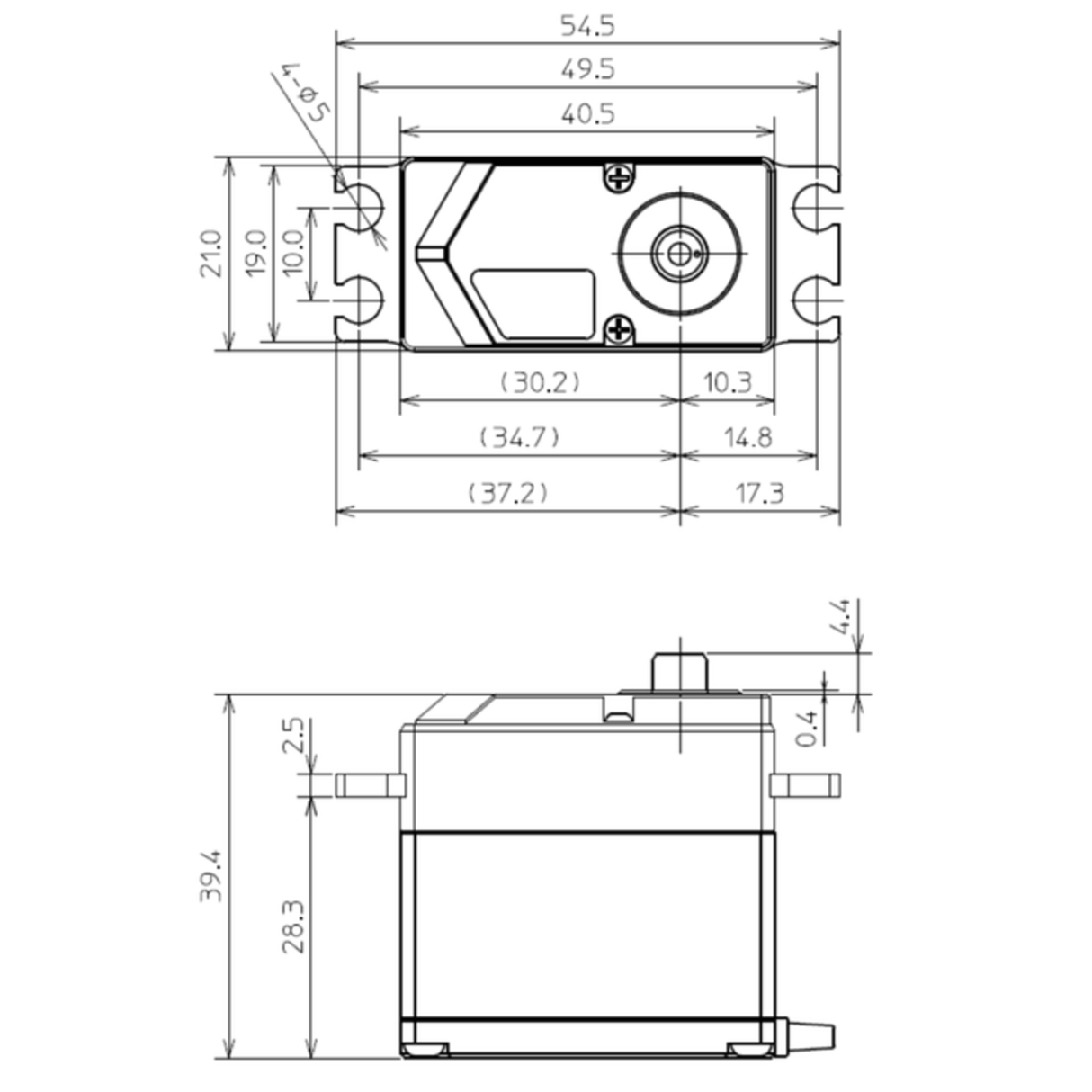

Size:
40.5 x 21.0 x 39.4 mm
1.59 x 0.83 x 1.55 in

Weight:
82 g
2.89 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE

Contents

1x HPS-A703 Standard Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Standard
Dimensions

40.5×21×39.4mm
Circuit

Digital
Weight

82 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

66
Max Speed (sec/60°)

0.12
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

Upper/middle/lower Aluminium case
Motor Detail

HPS motor
Gear Detail

Metal 1-3 stage gear. High strength metal final stage gear
