SKU: FUT05102724-3

HPS-A704 Low Profile Brushless Servo PWM/S.BUS2 14.0kg 0.06s 4.8V - 7.4V

Max Torque

14.0kg

Max Speed

0.06s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

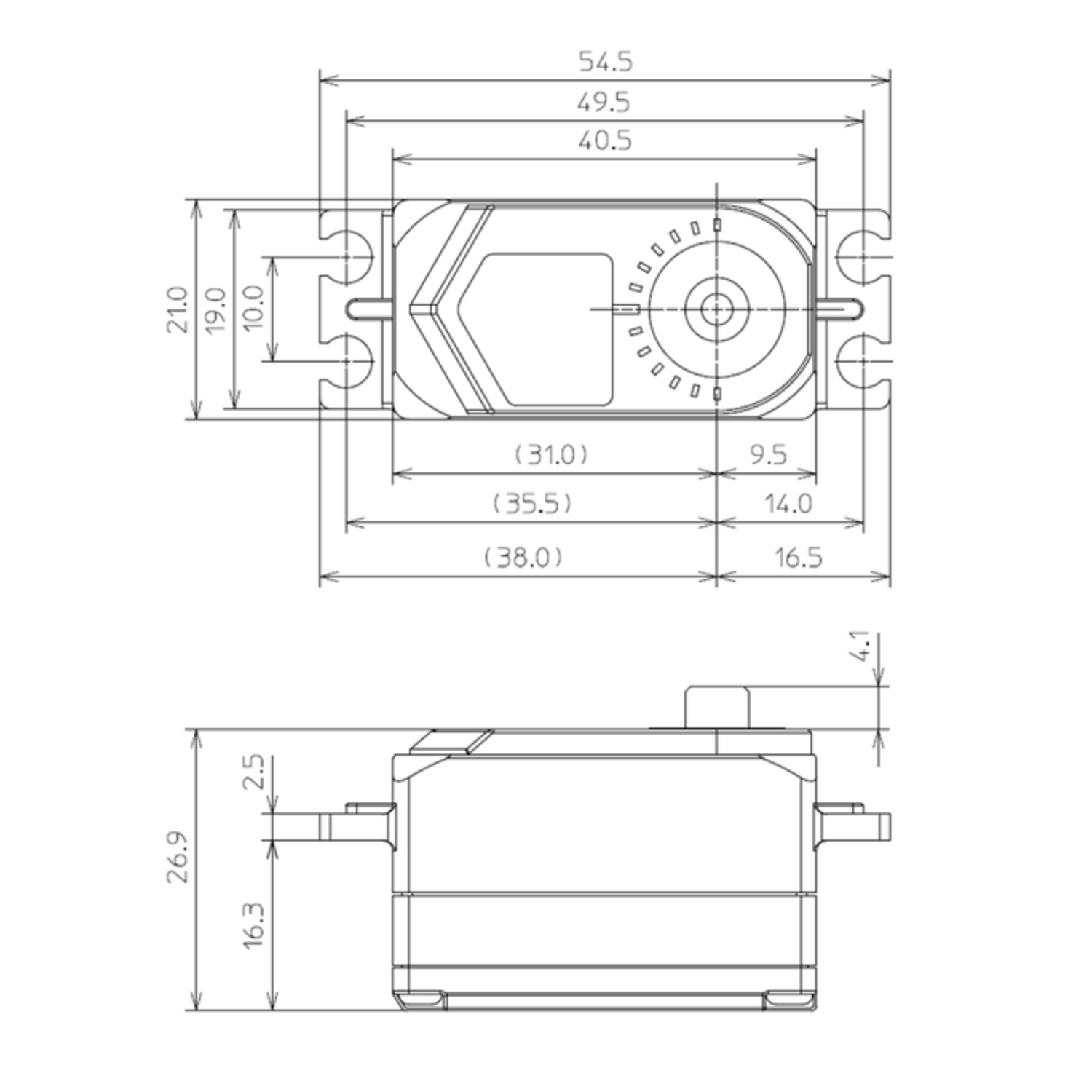

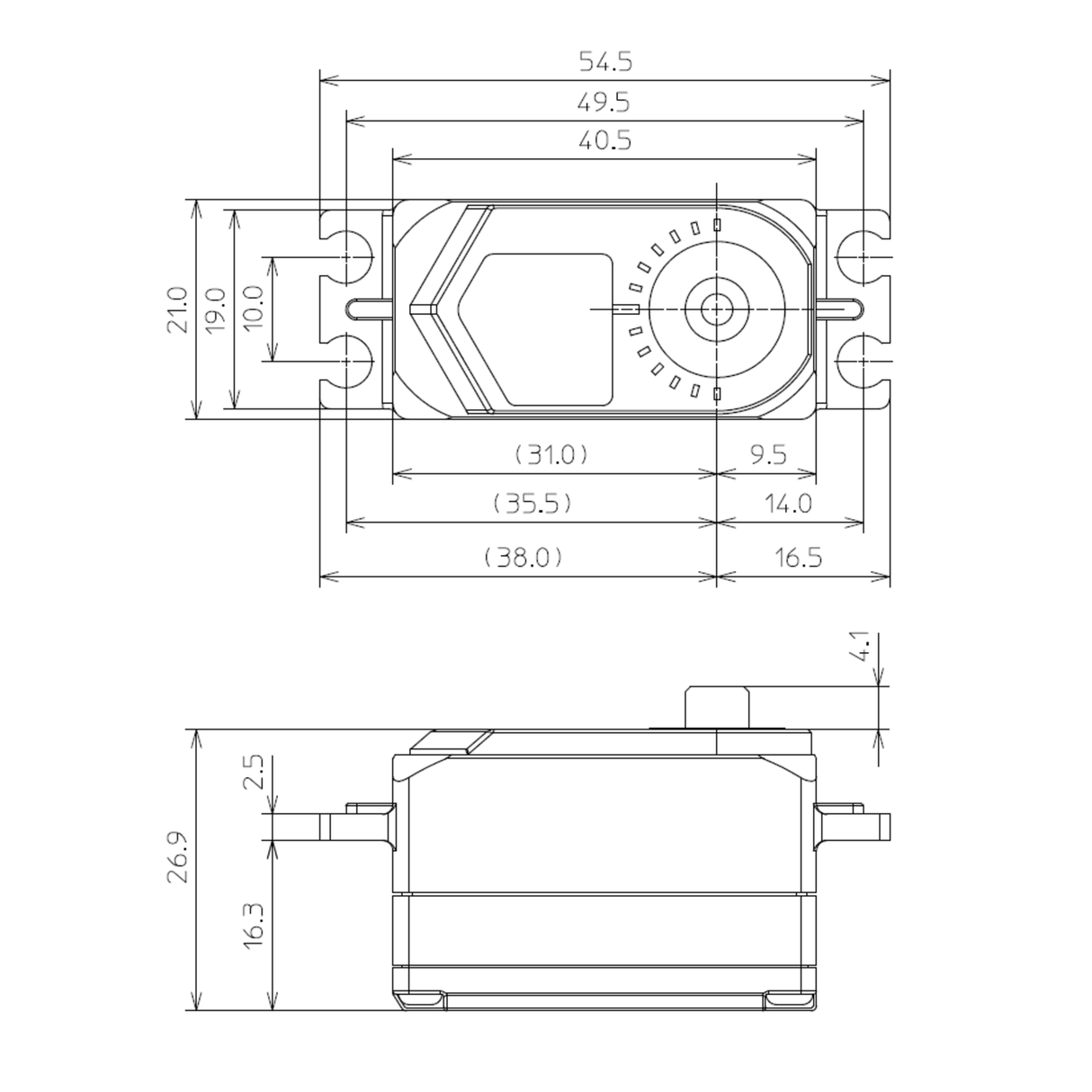

L×W×H

40.5×21×26.9mm

Weight

48 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£174⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Low Profile Servos

HPS-A704

HPS series low profile for F3A aircraft, achieving amazing torque and low power consumption. Supports S.BUS2

HPS-A704– S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo ith Brushless Motor

Speed:
0.07 sec/60° (6.6V)
0.06 sec/60° (7.4V)

Torque:
12.5 kgf/cm (6.6V)
173.6 ozf/in (6.6V)
14.0 kgf/cm 7.4V)
194.4 ozf/in (7.4V)

Size:
40.5 x 21 x 26.9 mm
1.59 x 0.83 x 1.06 in

Weight:
48 g
1.69 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE

Contents

1x HPS-A704 Low Profile Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Low Profile
Dimensions

40.5×21×26.9mm
Circuit

Digital
Weight

48 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

14
Max Speed (sec/60°)

0.06
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

New resin case
Motor Detail

HPS motor
Gear Detail

Metal 1-3 gears. High strength metal final stage gear
