1 9

SKU: FUT05102725-3

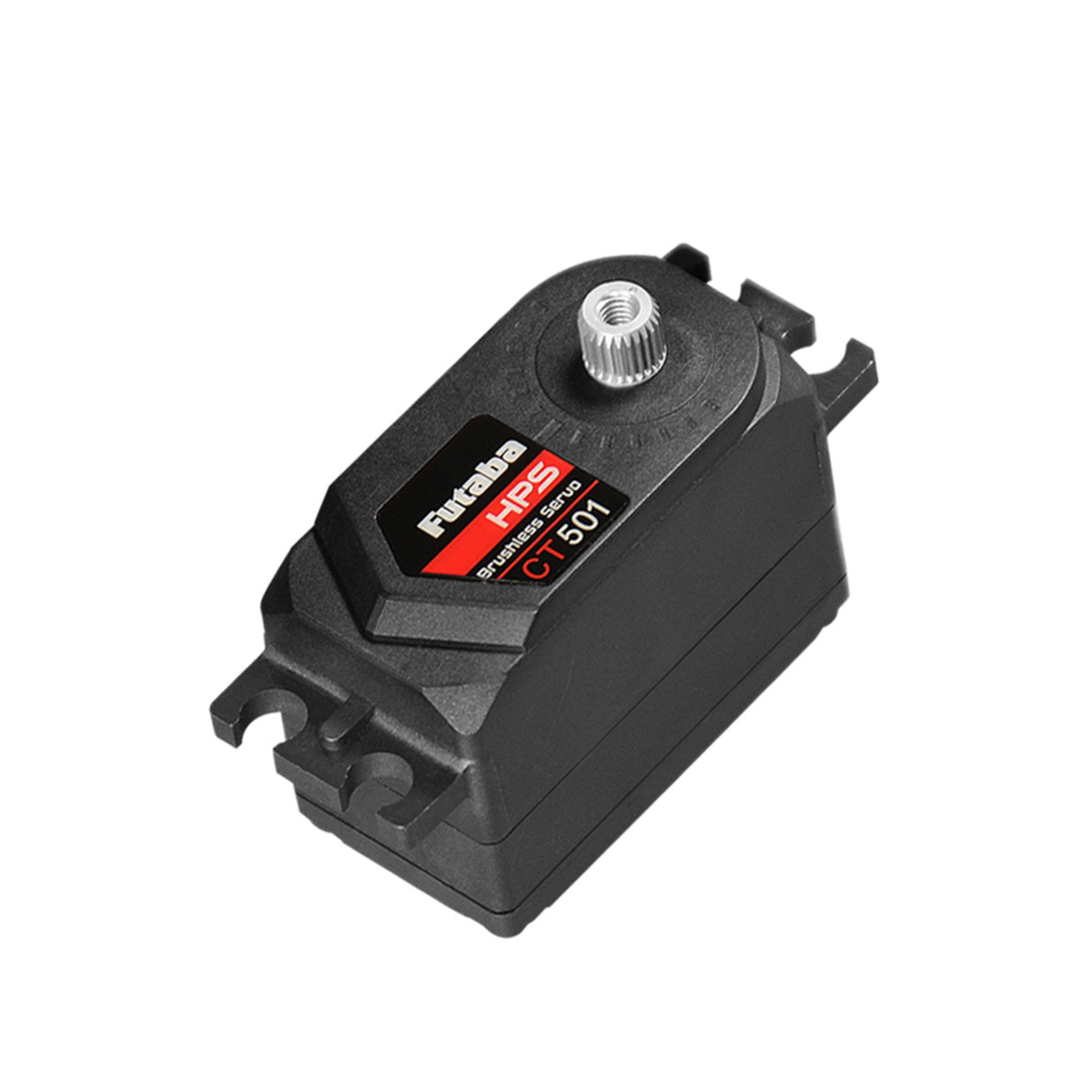

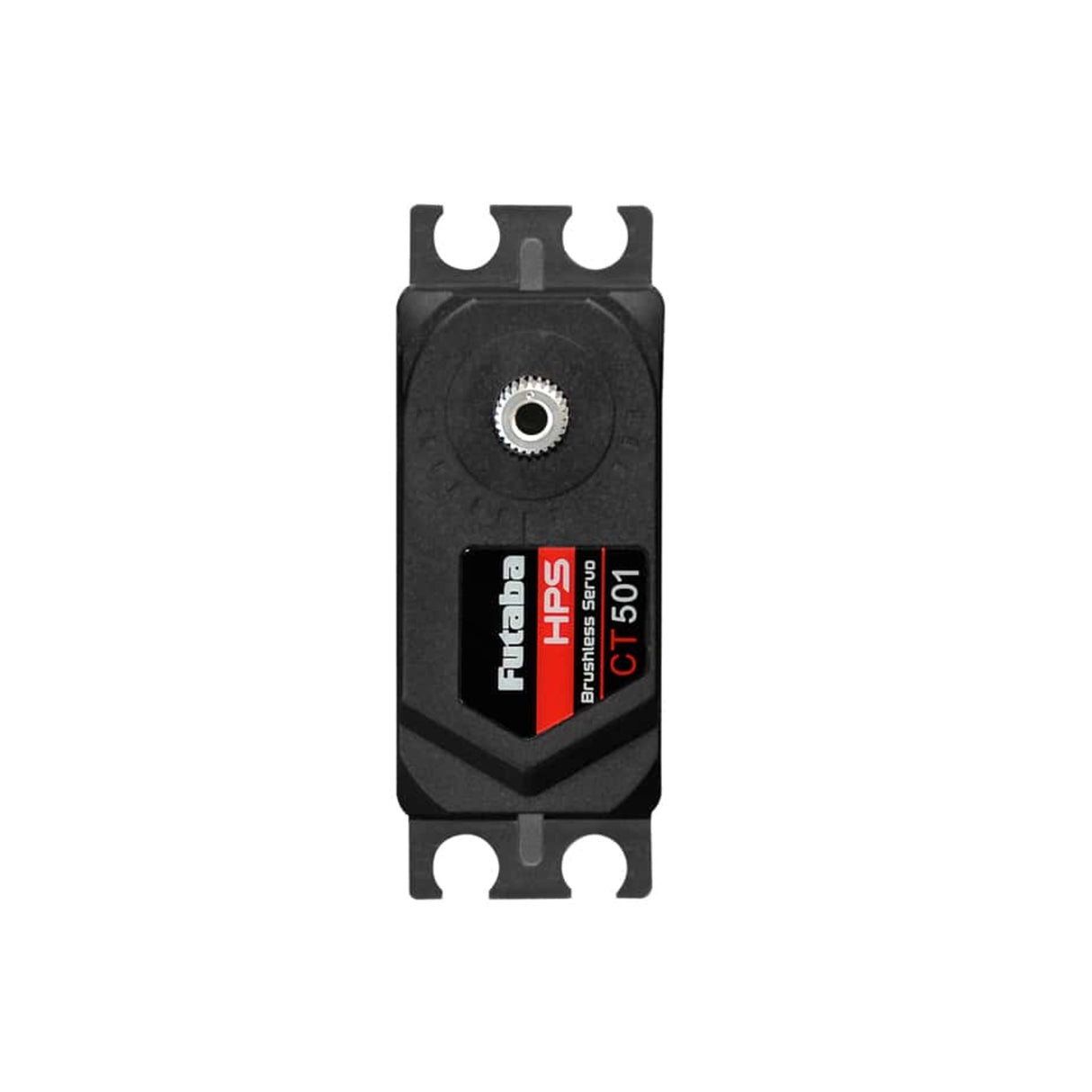

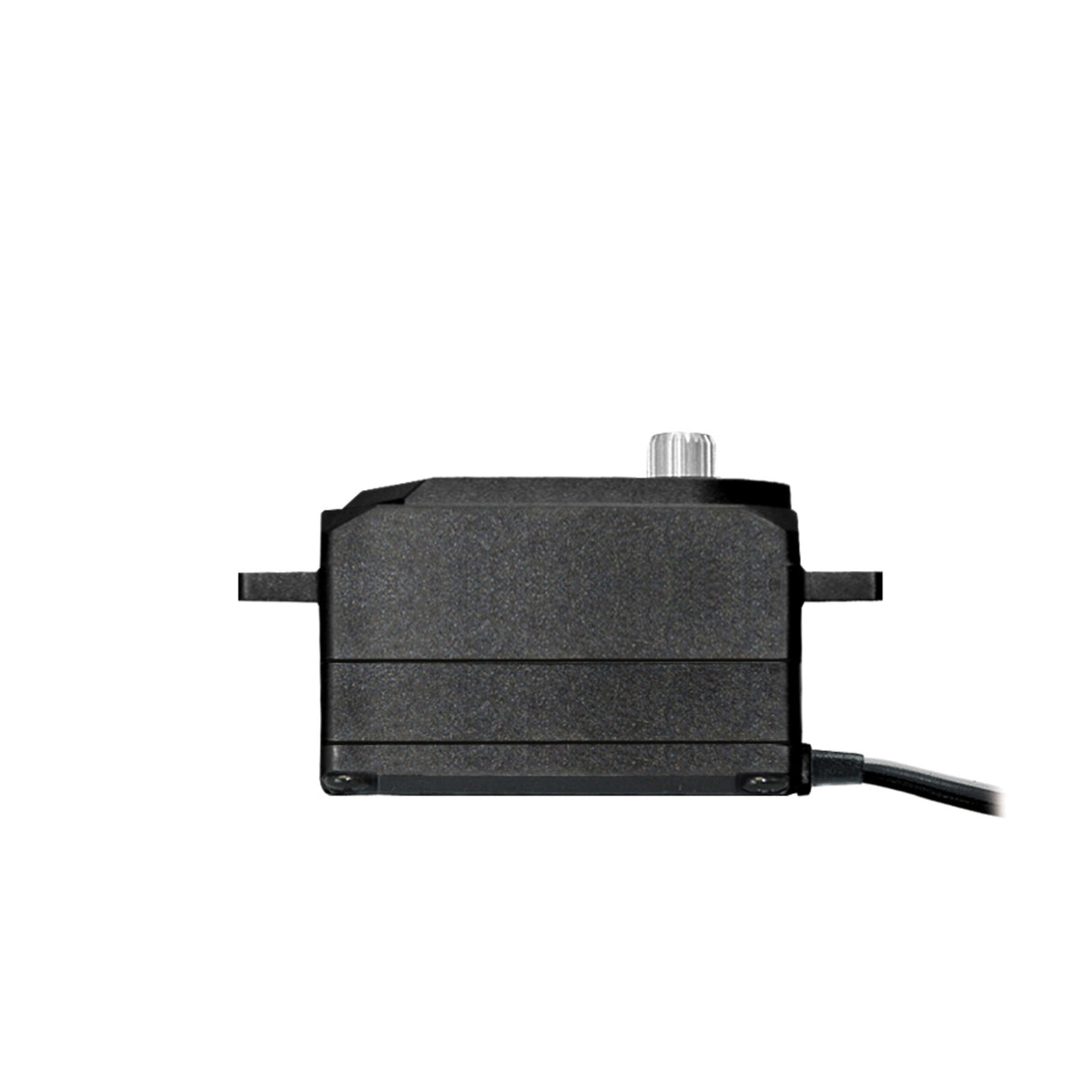

HPS-CT501 Low Profile Brushless Servo PWM/S.BUS2 21.0kg 0.06s 4.8V - 7.4V

Max Torque

21.0kg

Max Speed

0.06s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

40.5×21×26.9mm

Weight

44 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£174⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Low Profile Servos Super Response (SR) Servos for Cars Ultra Response (UR) Servos for Cars

HPS-CT501

HPBLS series low profile for Drift and 1/10 scale on/off road cars, high-performance brushless servo. Supports SR, UR mode and S.BUS2.

HPS-CT501– S.Bus2 High-Voltage Standard Surface Servo

High Performance Servo with Brushless Motor

Speed:
0.06 sec/60° (7.4V)

Torque:
21.0 kgf/cm (7.4V)
291.6 ozf/in (7.4V)

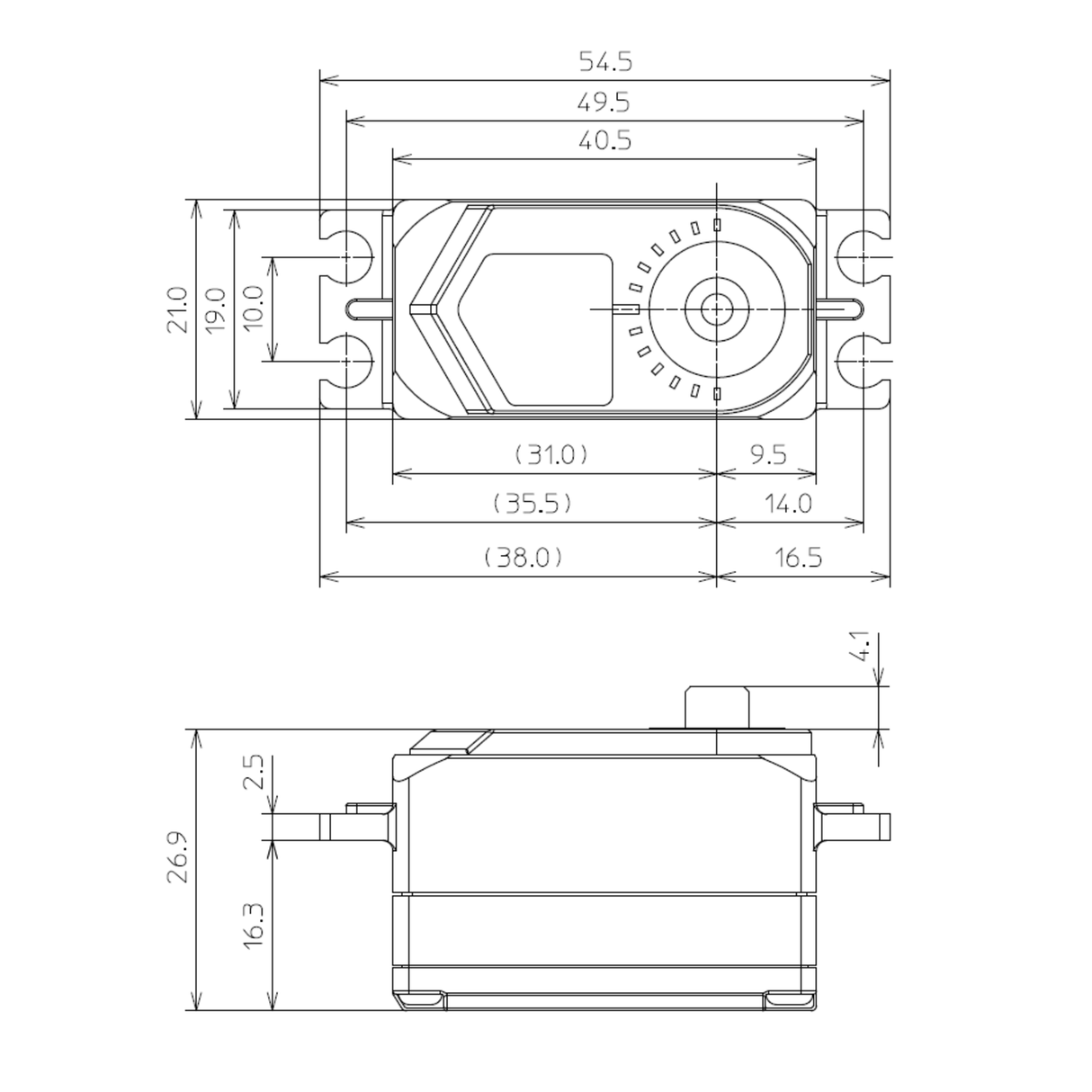

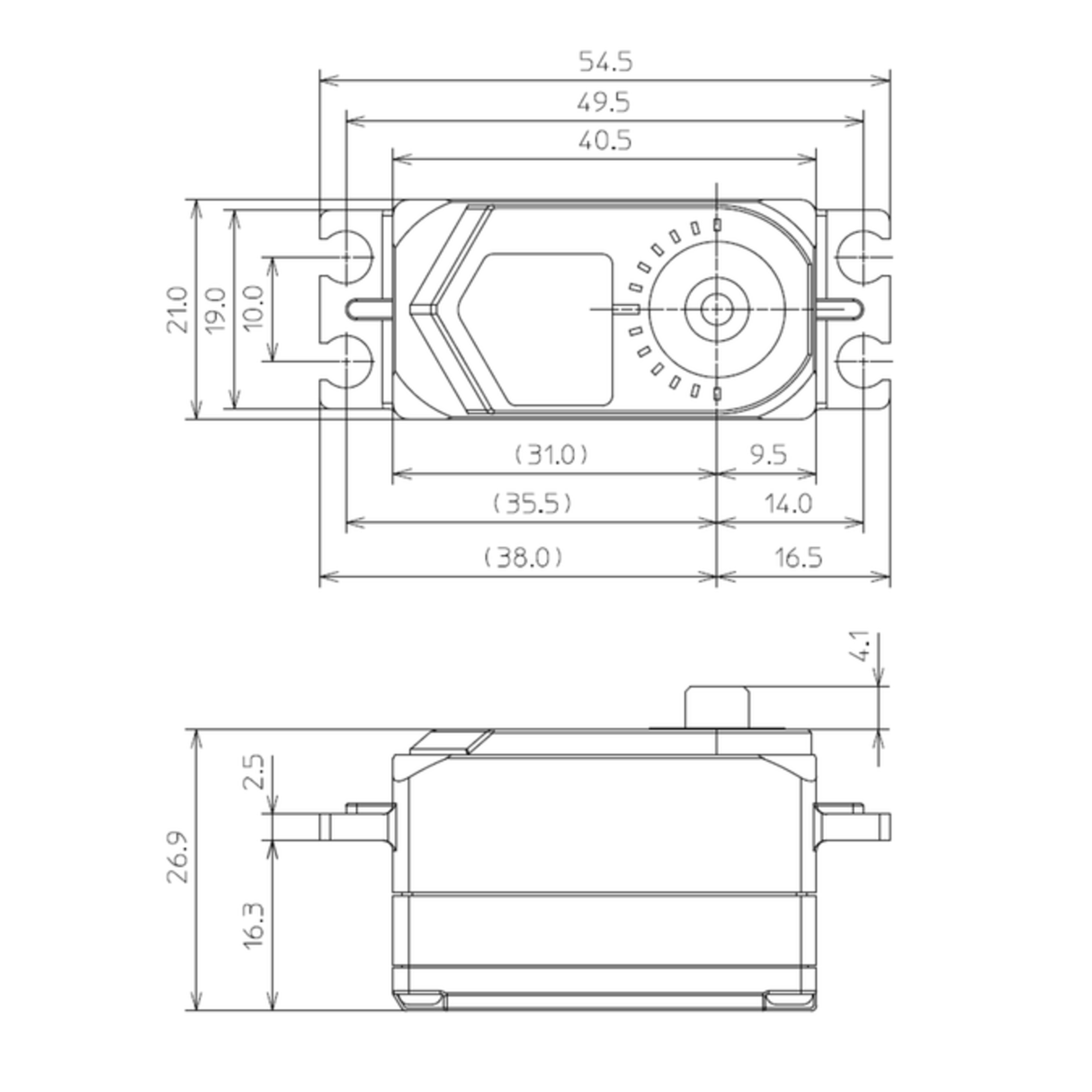

Size:
40.5 x 21.0 x 26.9 mm
1.59 x 0.83 x 1.06 in

Weight:
44 g
1.55 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

NO DRY BATTERY OR BEC USE
ONLY FOR RC CARS SMALLER THAN 15 SCALE

Contents

1x HPS-CT501 Low Profile Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Low Profile
Dimensions

40.5×21×26.9mm
Circuit

Digital
Weight

44 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

21
Max Speed (sec/60°)

0.06
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Dust/Water Resistance

Splashproof
Case

Resin case
Bearings

Triple Ball Bearing
Motor Detail

HPS motor
Gear Detail

Metal 1-3 gears. High-strength metal final gear
