1 9
SKU: FUT05102726-3

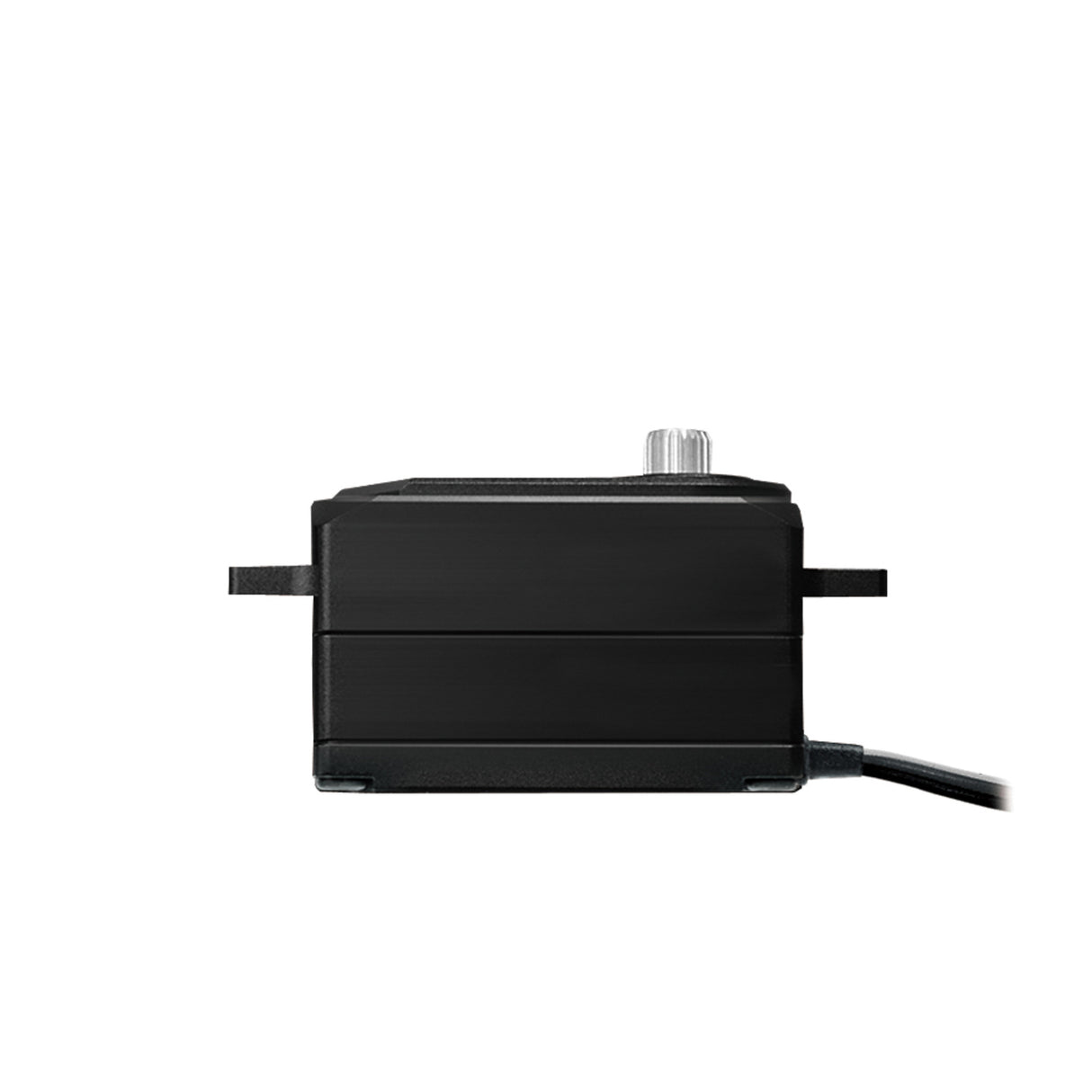

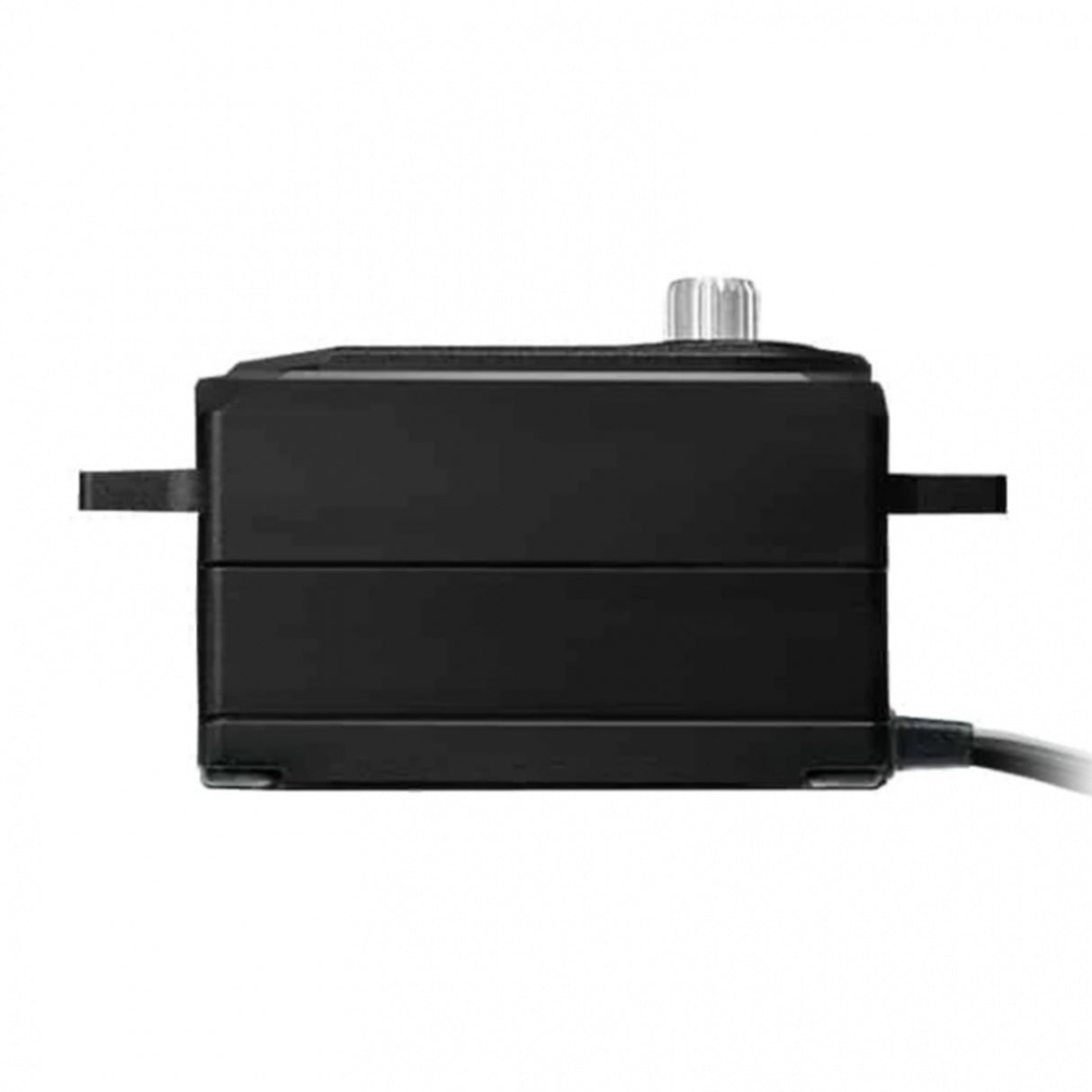

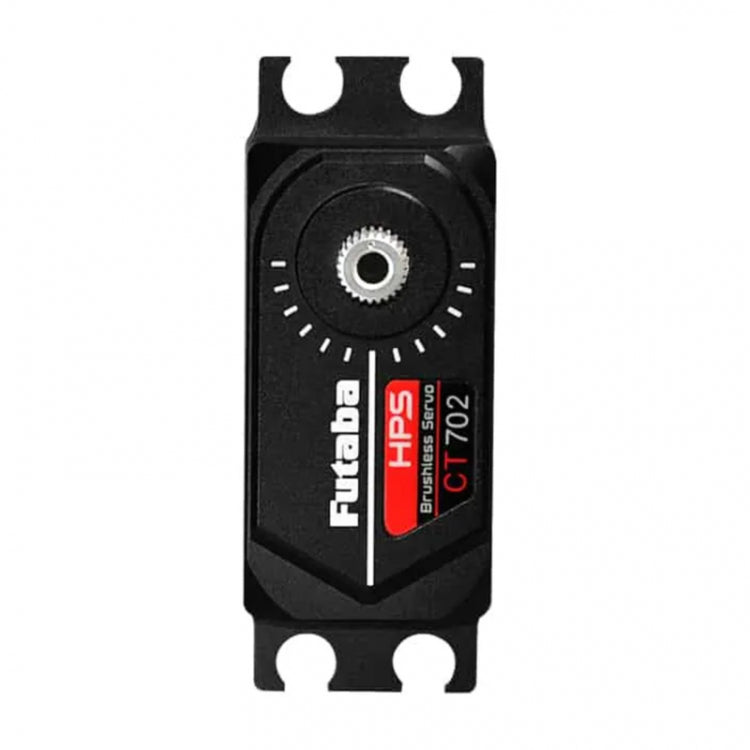

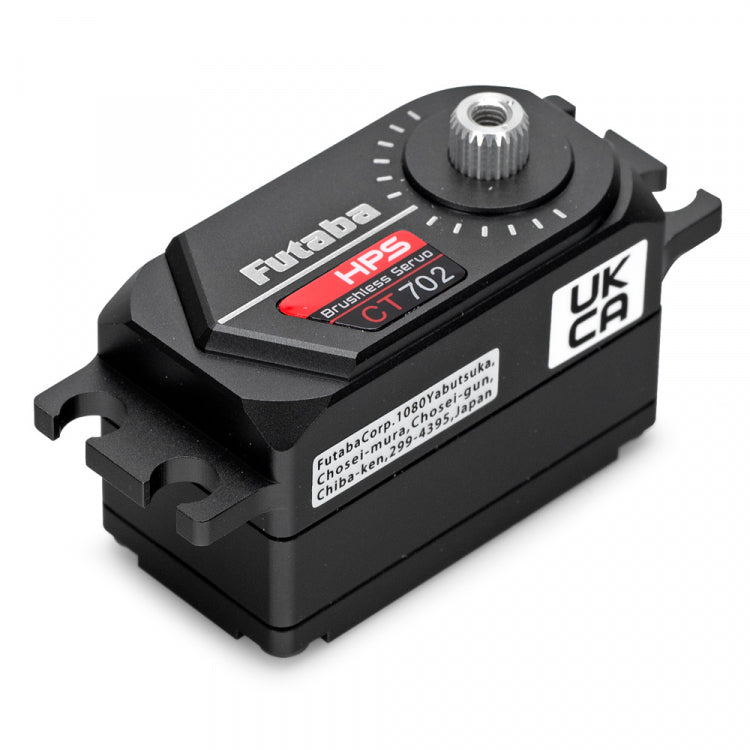

HPS-CT702 Low Profile Brushless Servo PWM/S.BUS 30.0kg 0.07s 4.8V - 7.4V

Max Torque Max Torque
30.0kg
Max Speed Max Speed
0.07s
Command Protocol Command Protocol
PWM S.BUS S.BUS2
Dimensions L×W×H
40.5×21×26.2mm
Weight Weight
53 g
Voltage Range Voltage
4.8V - 7.4V
Gears Gears
Metal
Spline Spline
25T (Ø6mm)
£22999
Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

HPS-CT702

HPS series low profile for Drift and 1/10 scale on/off road cars, is a high-performance brushless servo. Supports SR, UR mode and S.BUS 2.

HPS-CT702– S.Bus2 High-Voltage Low-Profile Surface Servo

High-Performance Servo with Brushless Motor

Speed:
0.07 sec/60° (7.4V)
0.08 sec/60° (6.0V)

Torque:
30.0kgf・cm (7.4V)
23.0kgf・cm (6.0V)

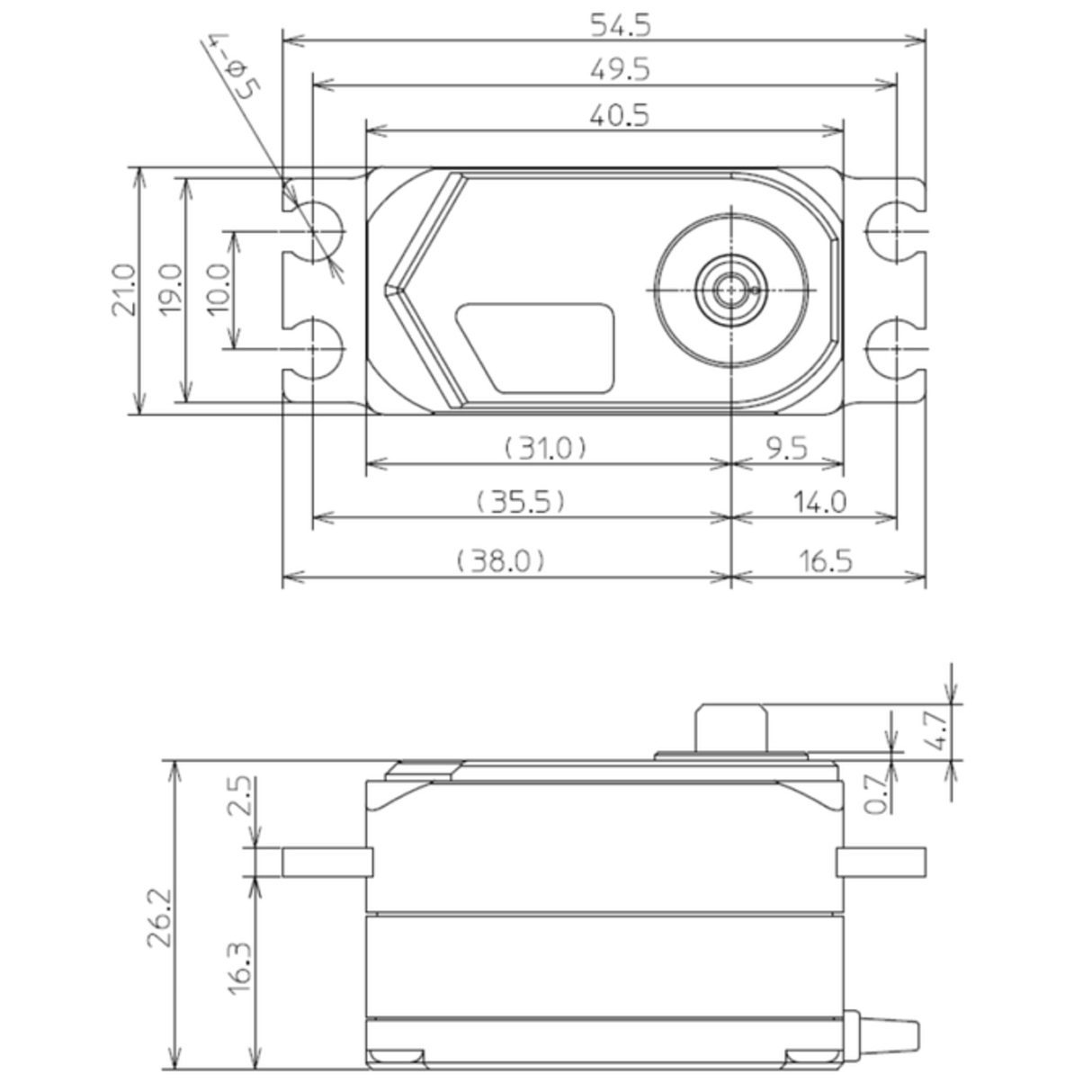

Dimensions:
40.5 x 21.0 x 26.2 mm

Weight:
53 g
1.86 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

ONLY FOR RC CARS SMALLER THAN 1/5 SCALE

Contents

  • 1x HPS-CT702 Low Profile Brushless Servo
  • Horns
  • Mounting Hardware
  • Command Protocol
    PWM, S.BUS, S.BUS2
  • Size
    Low Profile
  • Dimensions
    40.5×21×26.2mm
  • Circuit
    Digital
  • Weight
    53 g
  • Voltage Range
    4.8V - 7.4V
  • Max Torque (kg/cm)
    30
  • Max Speed (sec/60°)
    0.07
  • Spline
    25T (Ø6mm)
  • Motor
    Brushless
  • Gears
    Metal
  • Case
    Top/middle/bottom Aluminium case
  • Motor Detail
    HPS motor
  • Gear Detail
    Metal 1-3 gears. High strength metal final stage gear
