SKU: FUT05102729-3

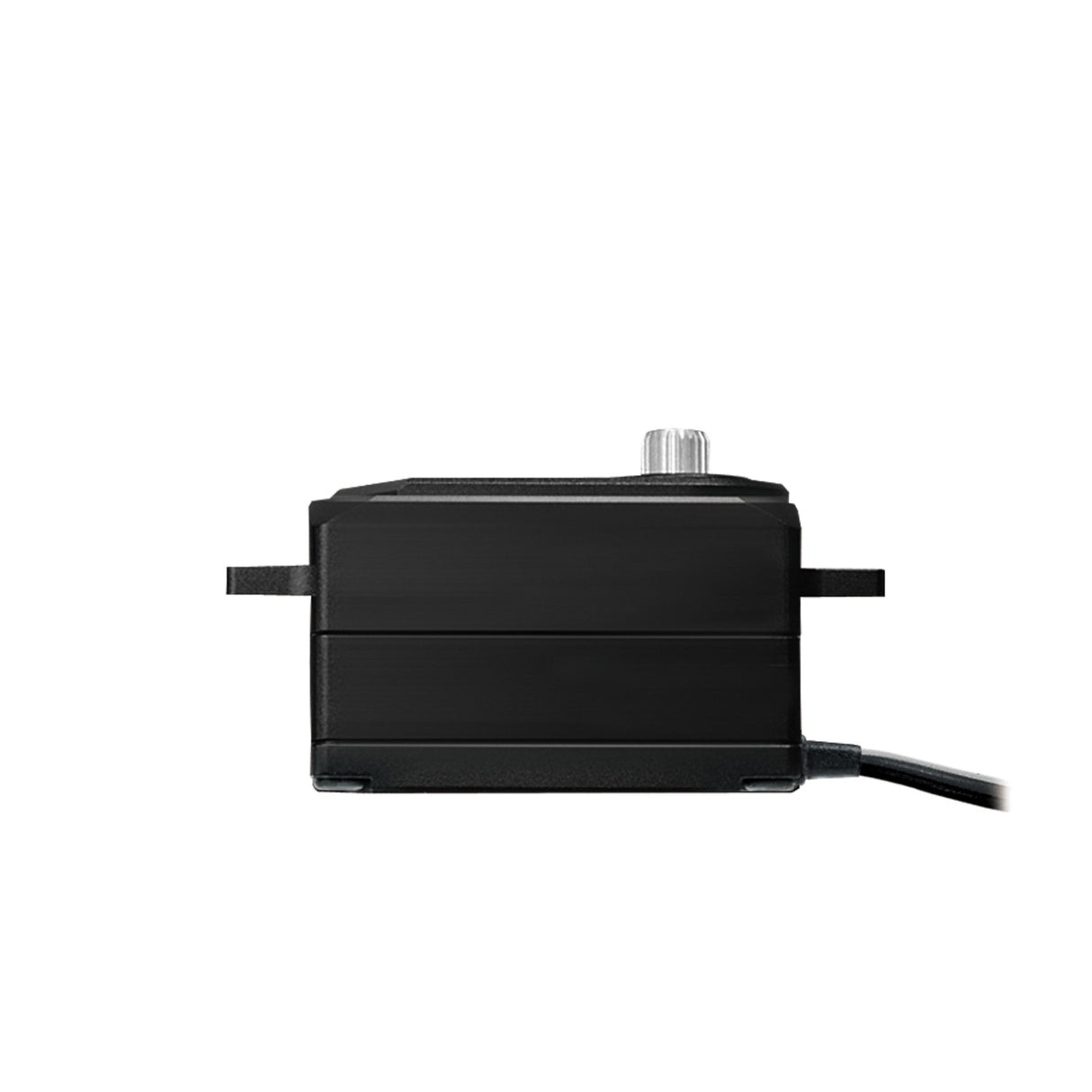

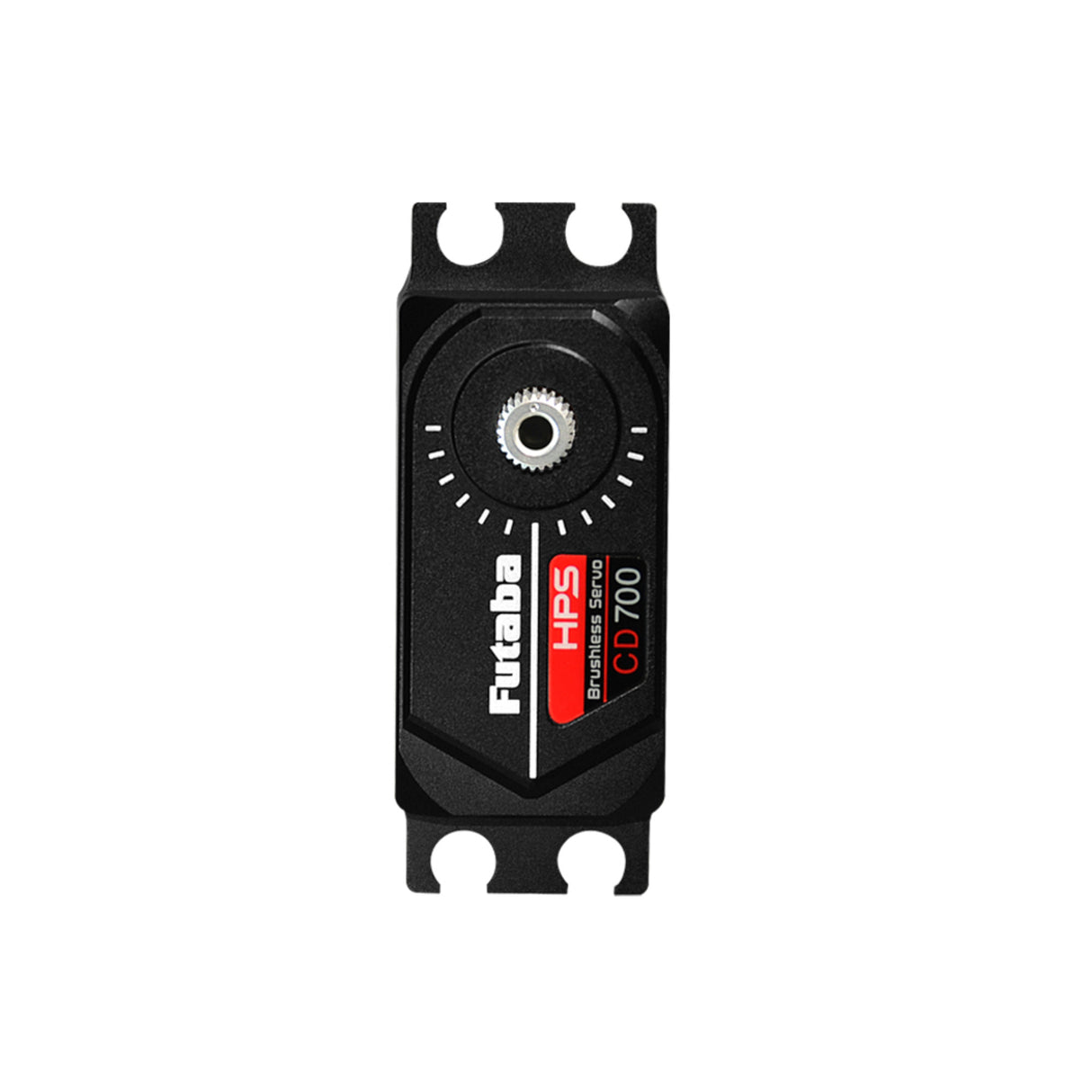

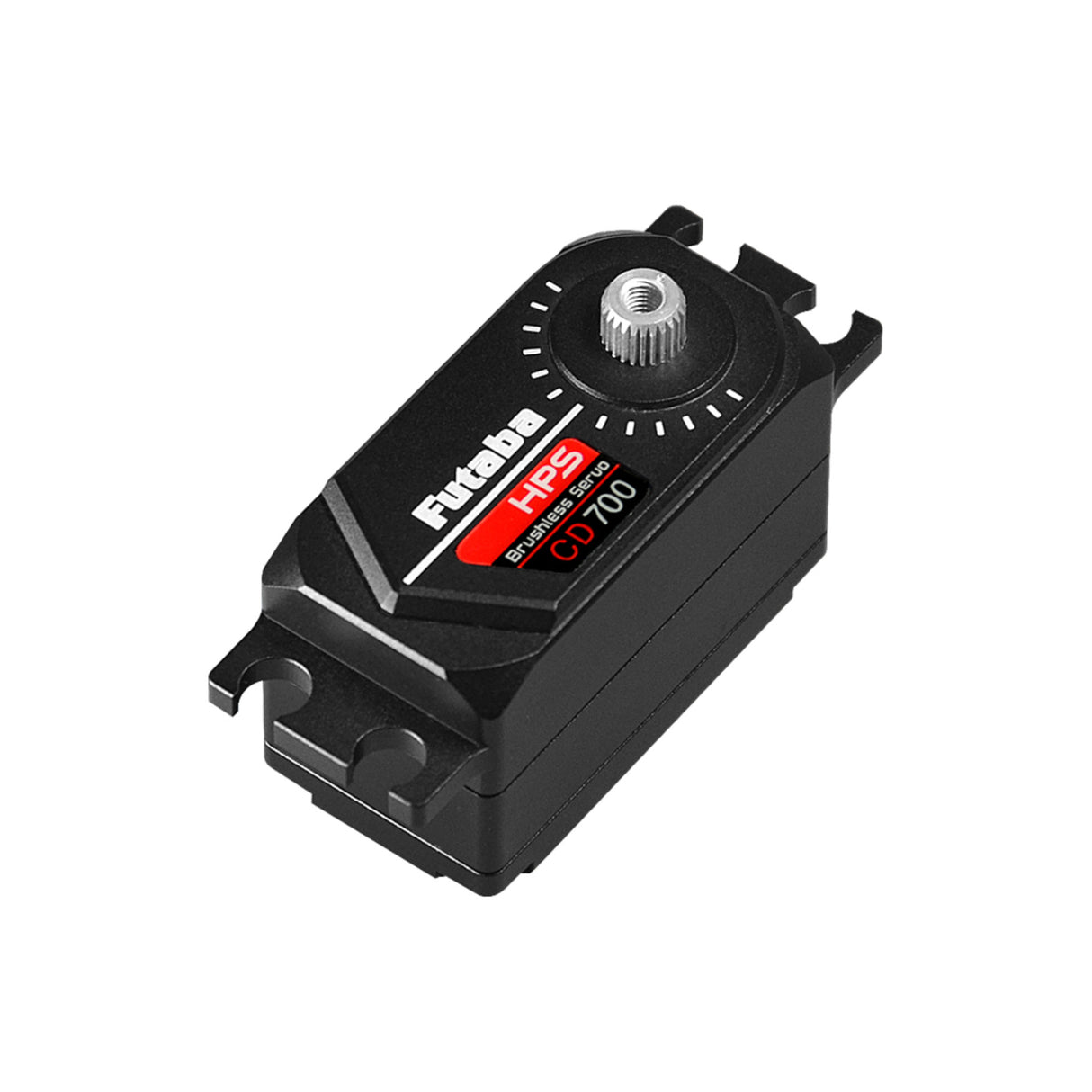

HPS-CD700 Low Profile Brushless Servo PWM/S.BUS2 9.6kg 0.045s 4.8V - 7.4V

Max Torque

17.0kg

Max Speed

0.045s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

40.5×21×26.2mm

Weight

53 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£229⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Low Profile Servos Super Response (SR) Servos for Cars

HPS-CD700

HPS series low profile for drift cars, is a high-performance brushless servo. Supports SR mode and S.BUS2.

HPS-CD700– S.Bus2 High-Voltage Low-Profile Surface Servo

Lowpro HPS servo for first car
Metal 1-3 gear
High-strength metal end gear
Black code
Top/middle/bottom aluminium case
S.BUS System
SR mode support (UR mode is not supported)

Speed:
0.045 sec/60° (7.4V)
0.055 sec/60° (6.0V)

Torque:
17.0kgf・cm (7.4V)
14.0kgf・cm (6.0V)

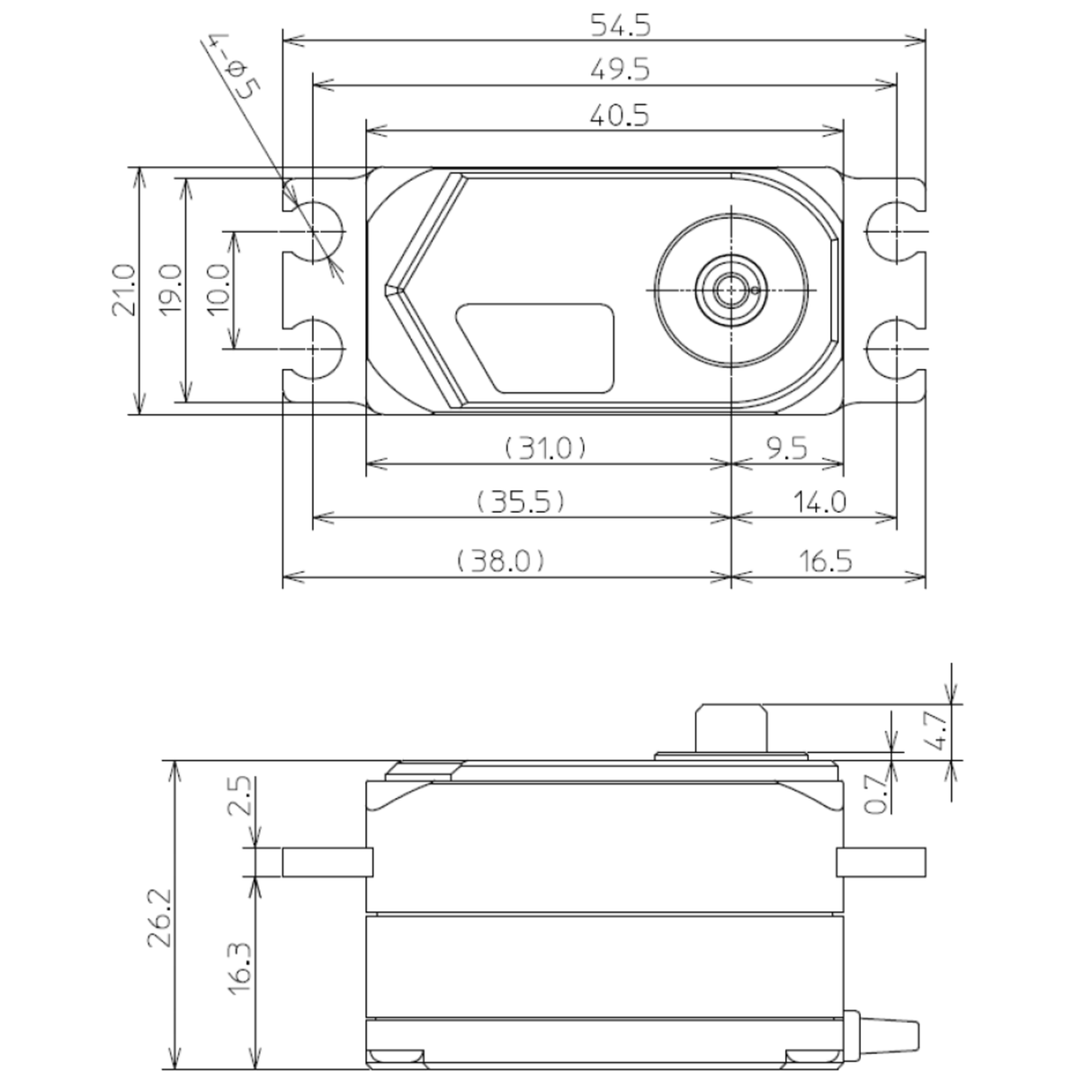

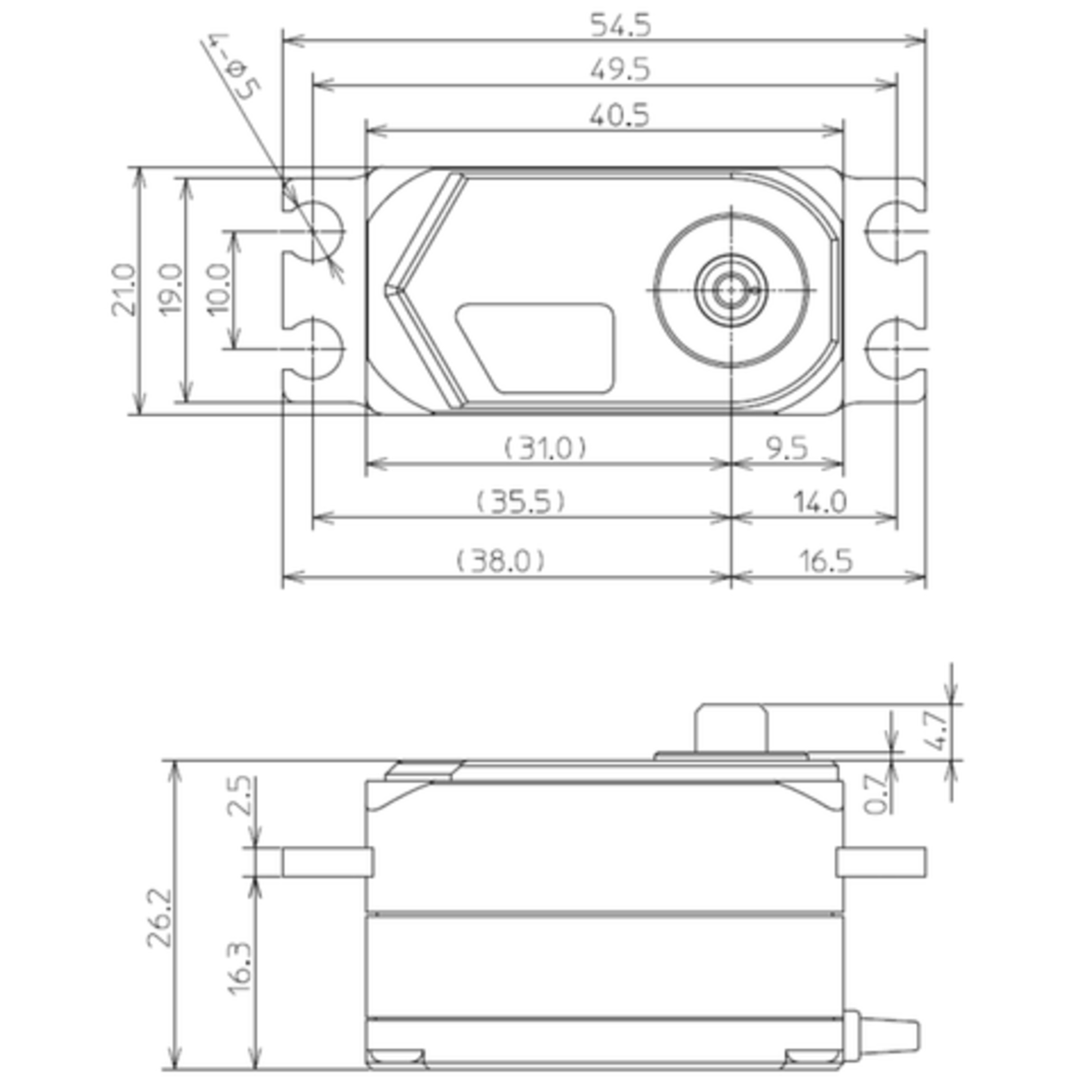

Dimensions:
40.5 x 21.0 x 26.2 mm
1.59 x 0.82 x 1.03 in

Weight:
53 g
1.86 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

ONLY FOR RC CARS 1/10 SCALE

Contents

1x HPS-CD700 Low Profile Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Low Profile
Dimensions

40.5×21×26.2mm
Circuit

Digital
Weight

53 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

17
Max Speed (sec/60°)

0.045
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

Top/middle/bottom Aluminium case
Motor Detail

HPS motor
Gear Detail

Metal 1-3 gears. High strength metal final stage gear
