SKU: FUT05102730-3

BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg 0.10s 4.8V - 7.4V

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

27.2×13×30.5mm

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£137⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Mini&Micro Servos

BLS-A600

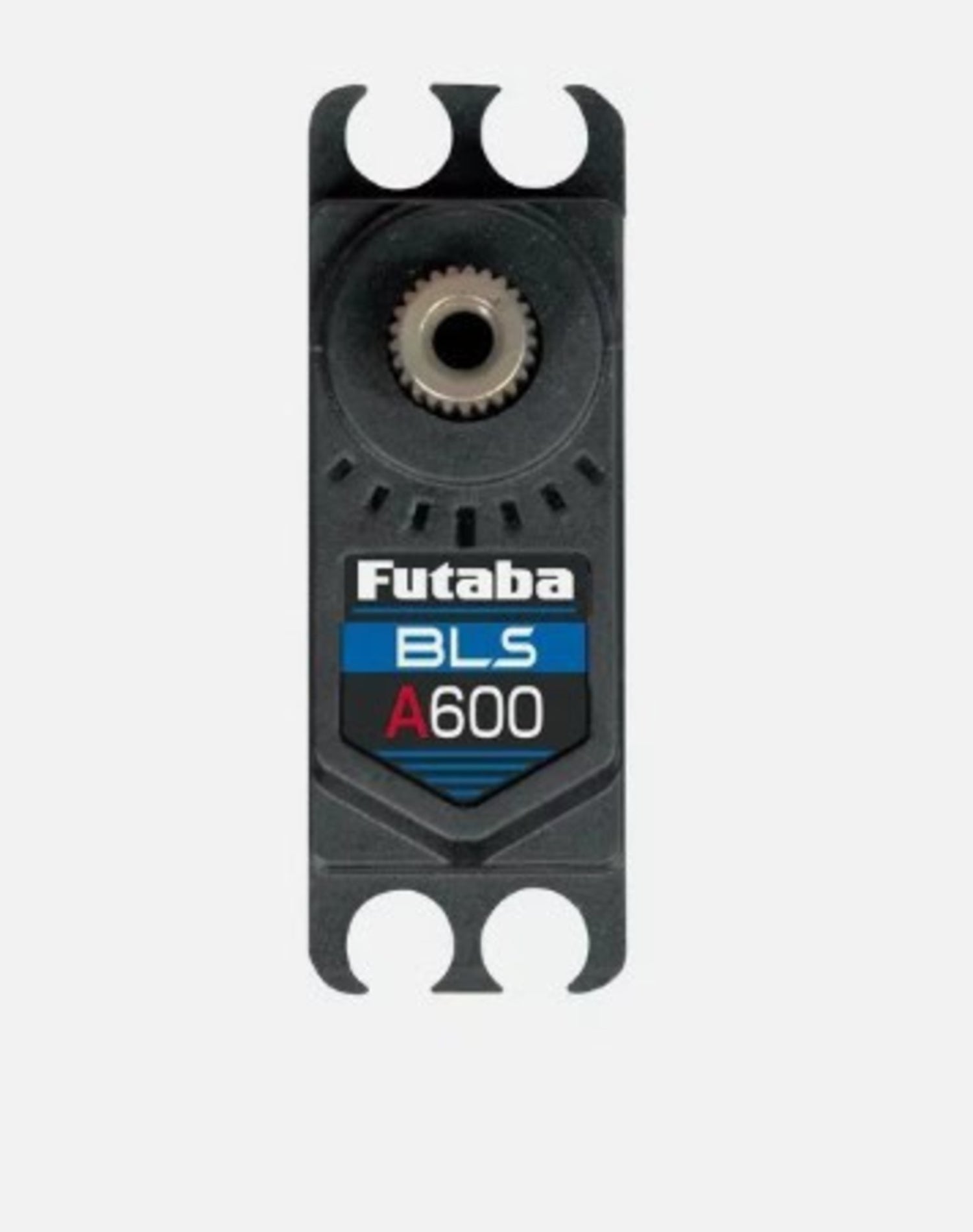

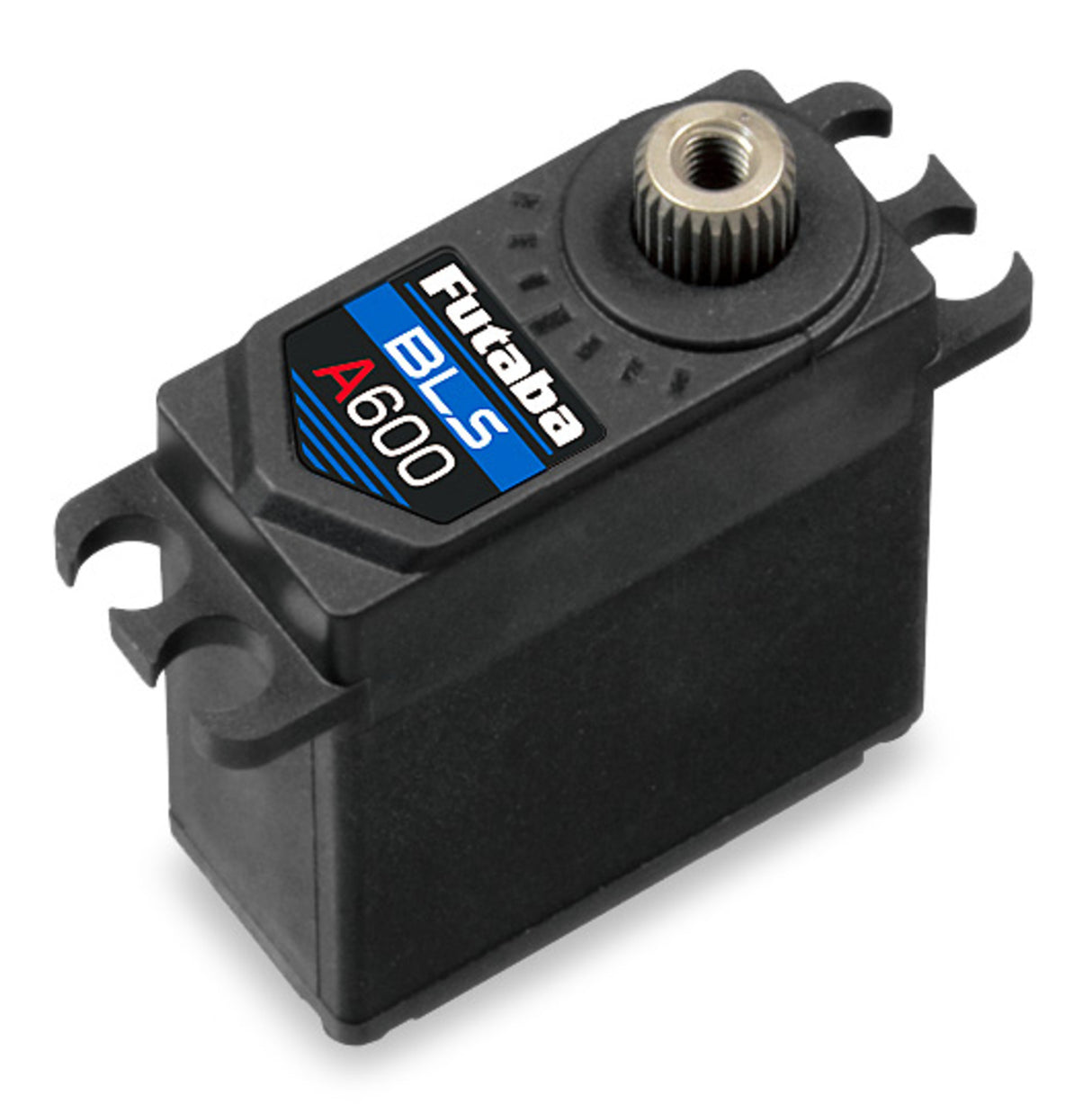

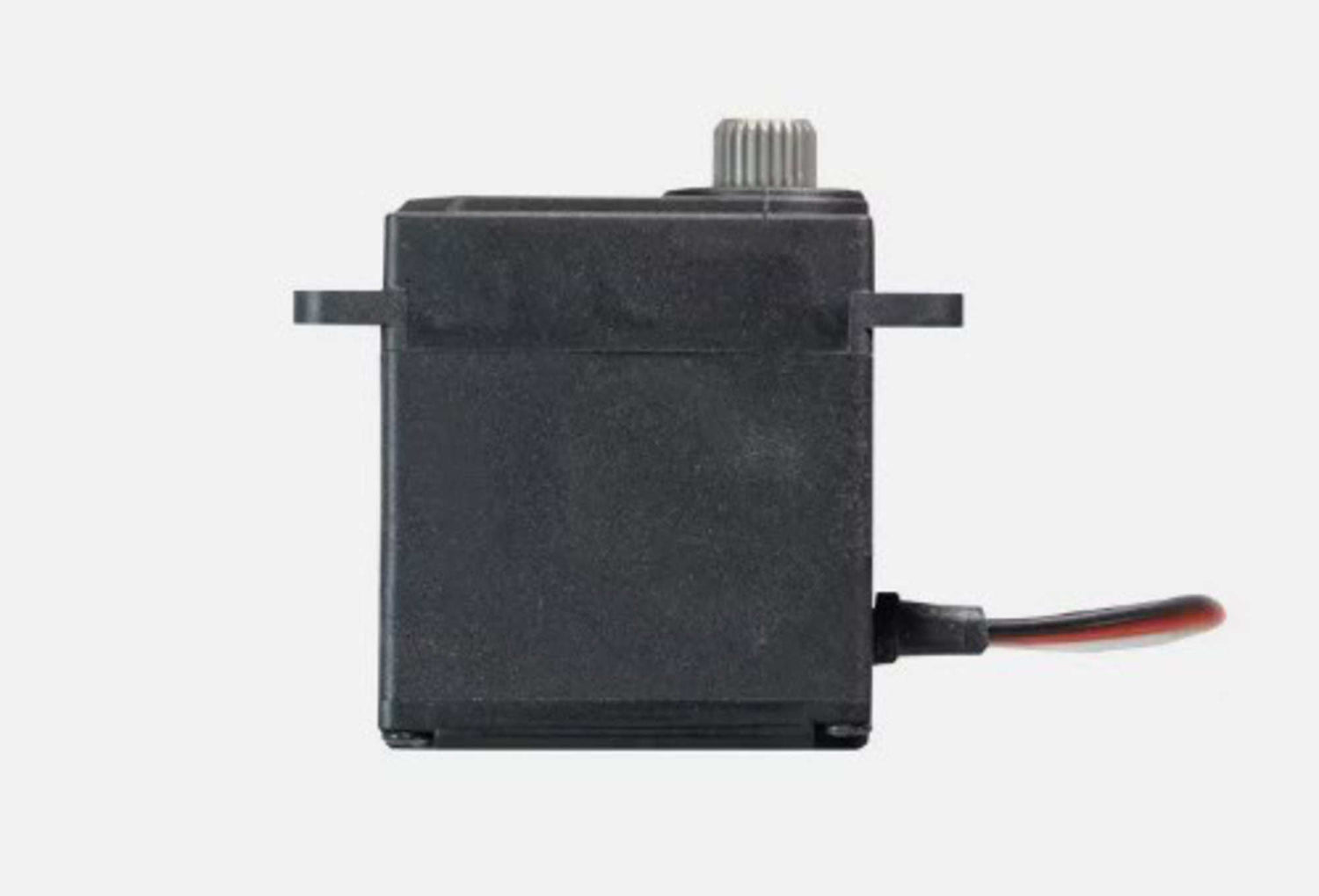

The BLS-A600 Mini Brushless Servo supports PWM/S.BUS2, delivering 7.6kgf·cm torque and 0.10s/60° speed. It has compact dimensions of 27.2×13.0×30.5mm and operates between 4.8V and 7.4V.

BLS-A600- S.Bus2 High-Voltage Mini Air Servo

Brushless Motor

Speed:
0.10 sec/60° (6.6V)
0.9 sec/60° (7.4V)

Torque:
6 kgf/cm (6.6V)
83.3 ozf/in (6.6V)
6.7 kgf/cm (7.4V)br>93 ozf/in (7.4V)

Size:
27.2 x 13 x 30.5 mm
1.07 x 0.51 x 1.2 in

Weight:
28 g
0.98 oz

Power Supply:
DC 6.0V - 7.4V

NO DRY BATTERY USE

Contents

1x BLS-A600 Mini Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Mini
Dimensions

27.2×13×30.5mm
Circuit

Digital
Voltage Range

4.8V - 7.4V
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

Resin case
Gear Detail

Metal 1-4 gears. Metal final gear
