SKU: FUT05102731-3

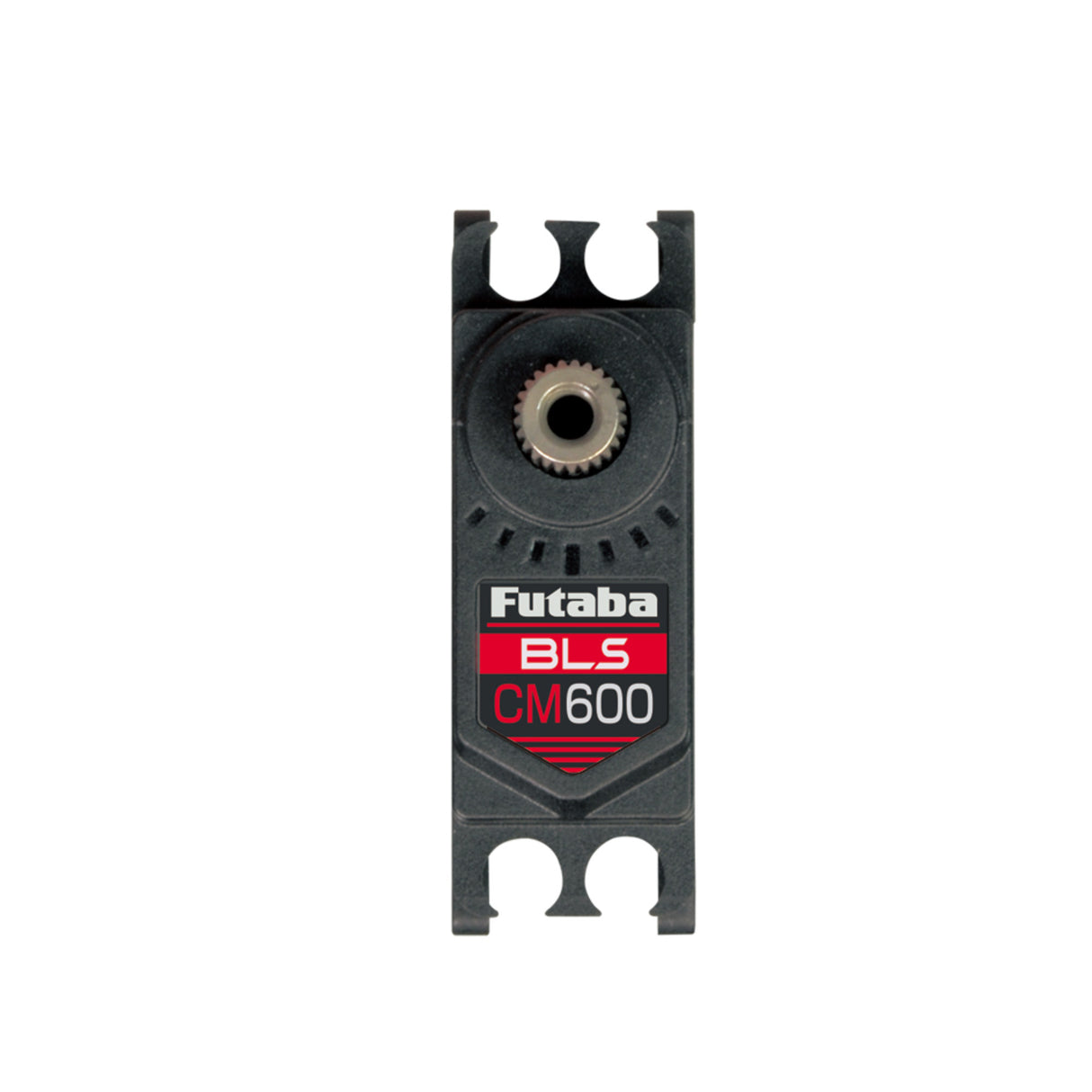

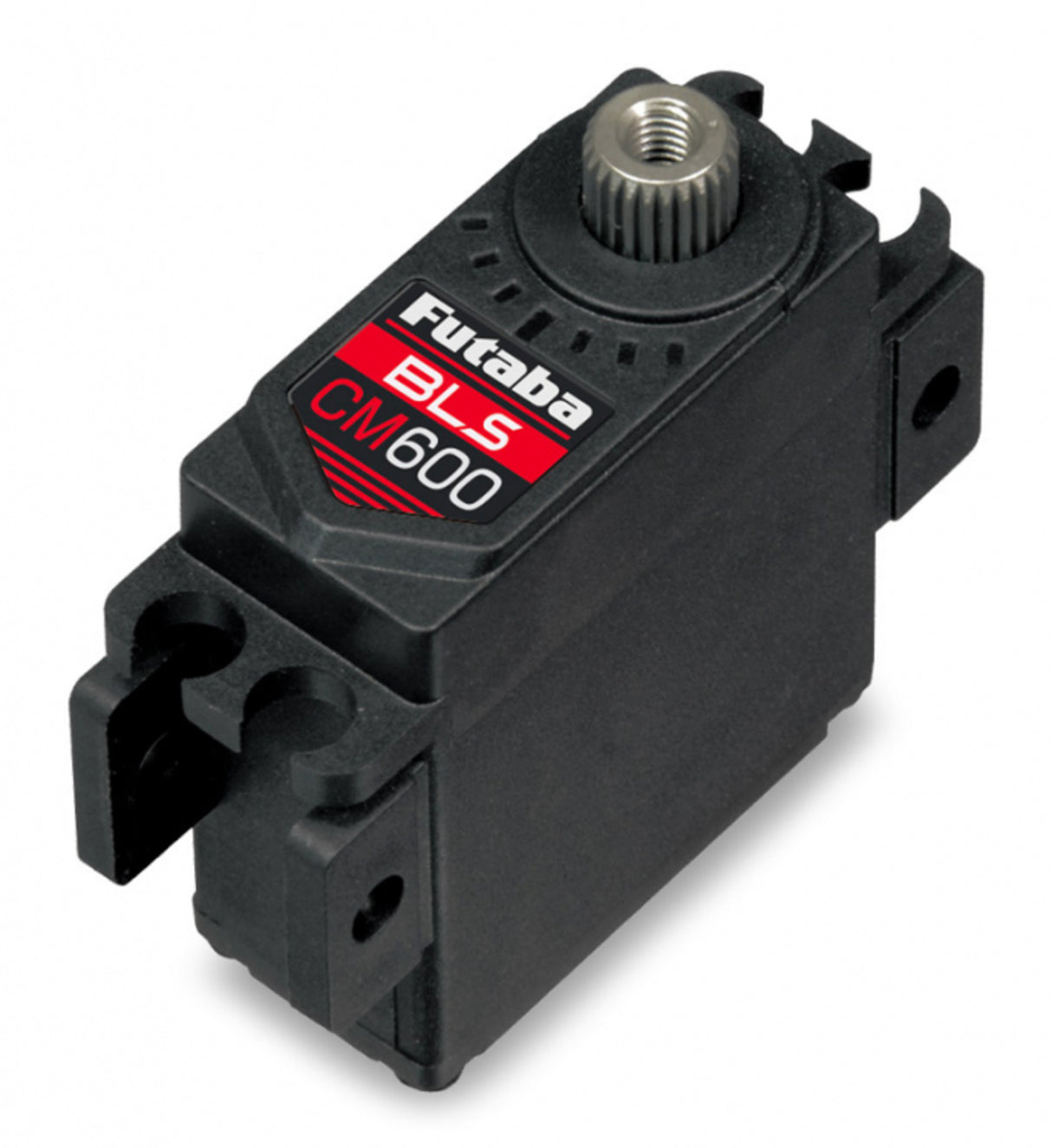

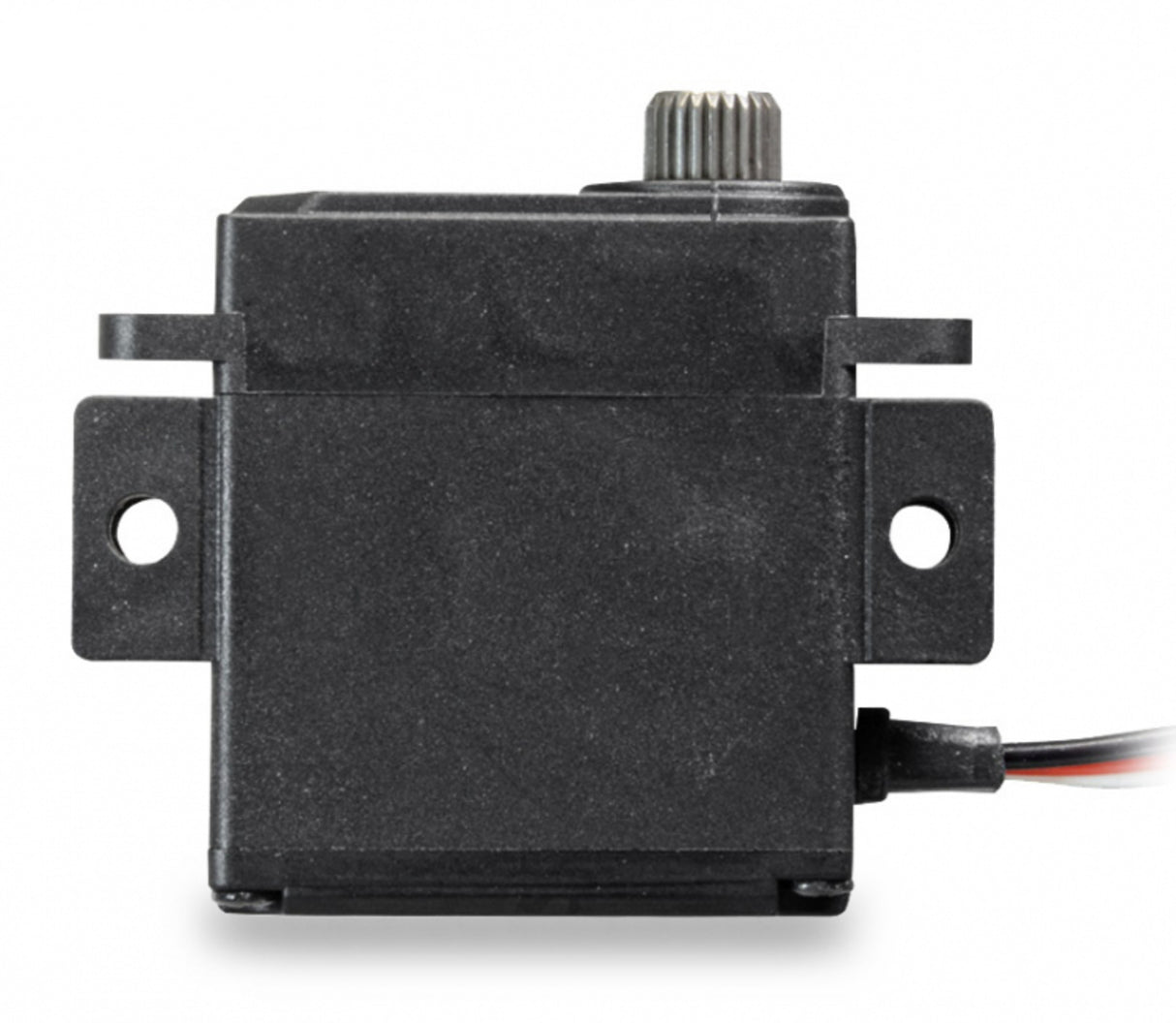

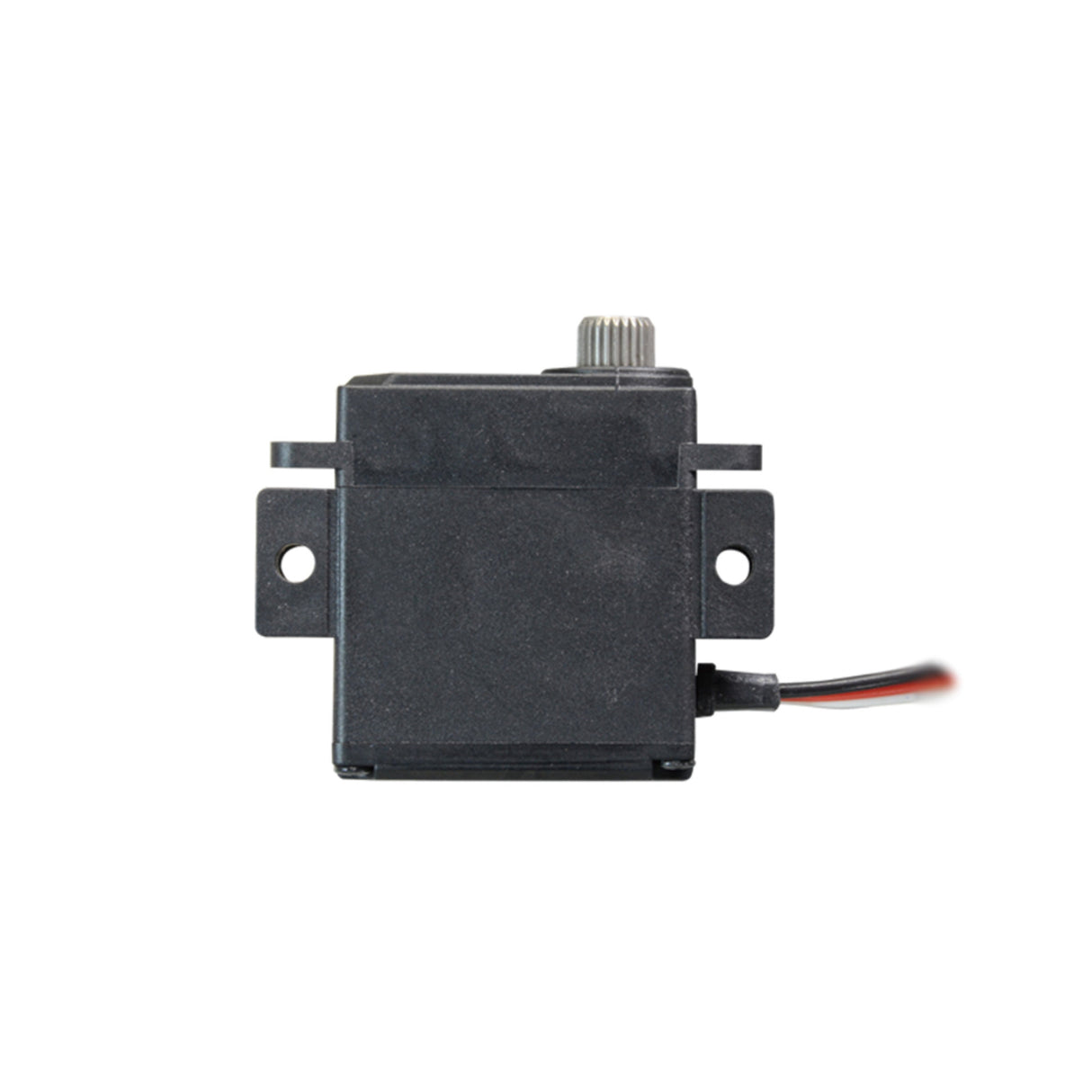

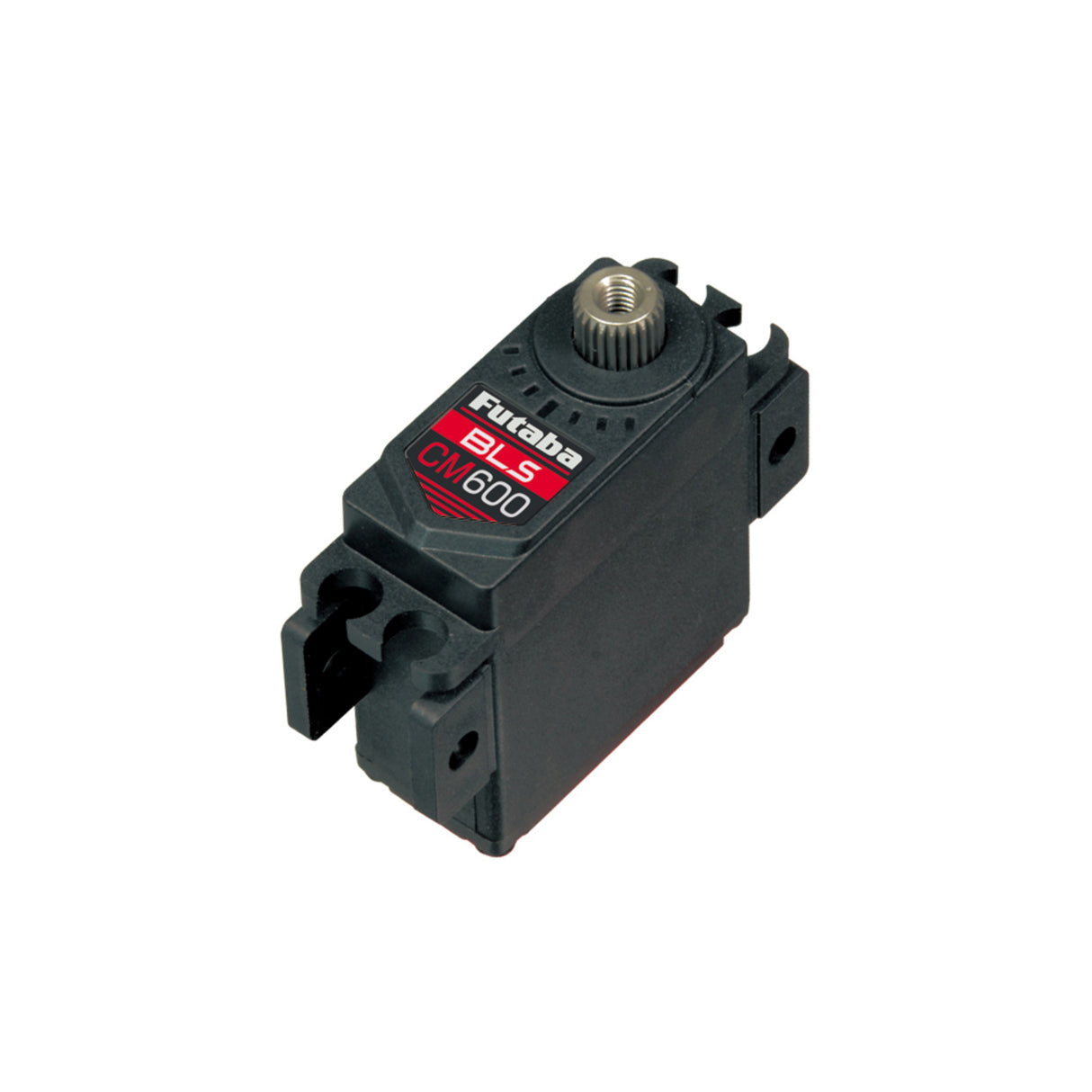

BLS-CM600 Mini Brushless Servo PWM/S.BUS2 6.5kg 0.08s 4.8V - 7.4V

Max Torque

6.7kg

Max Speed

0.09s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

L×W×H

27.2×13×30.5mm

Weight

28 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£137⁹⁹

Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Mini&Micro Servos Super Response (SR) Servos for Cars Ultra Response (UR) Servos for Cars

BLS-CM600

Mini brushless servo for 1/12 EP cars. Supports SR, UR mode and S.BUS2

BLS-CM600 – Mini Servo for Surface

Plastic Case/Plastic Gearing

Torque:
- 6.0V: 74.90 oz-in (5.4 kg-cm)
- 7.4V:93.00 oz-in (6.7 kg-cm)

Speed:
- 6.0V: 0.11 sec/60°
- 7.4V: 0.009 sec60°

Weight:
0.98 oz (28 g)

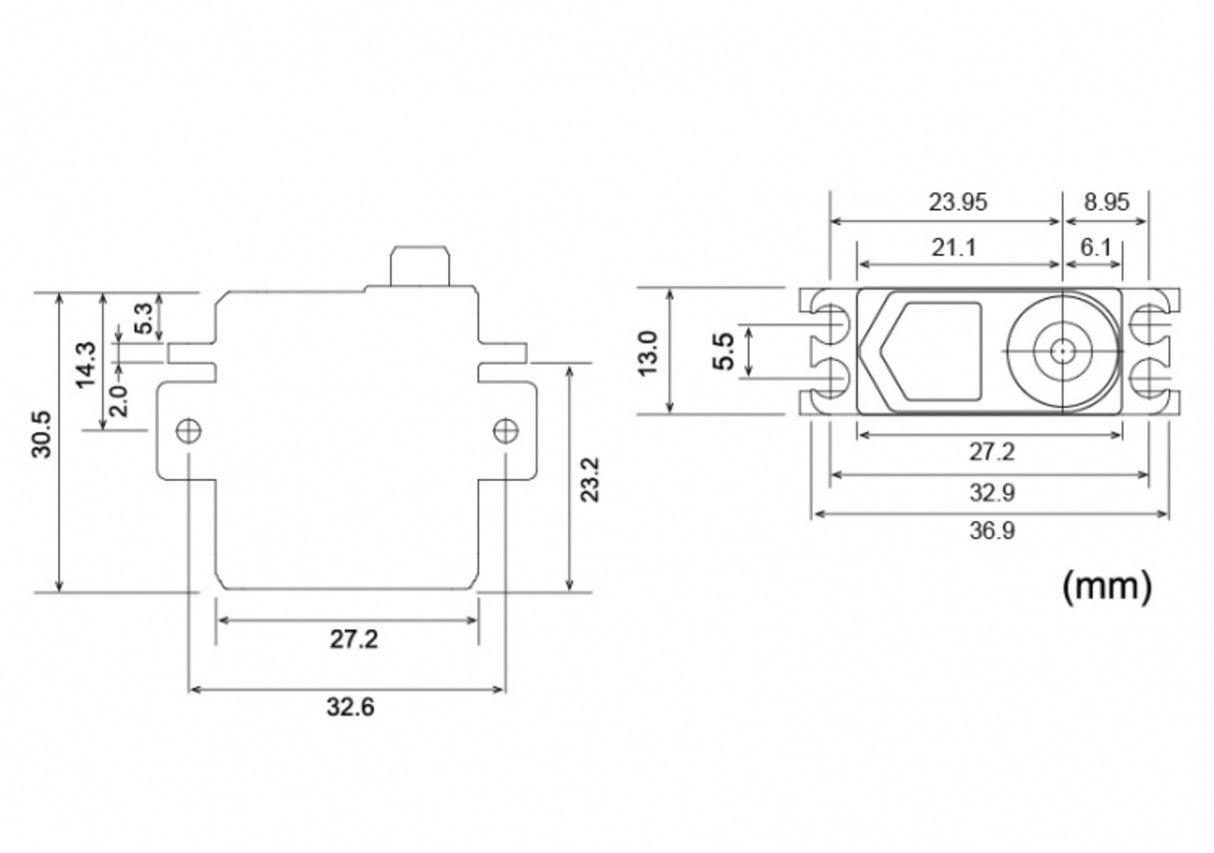

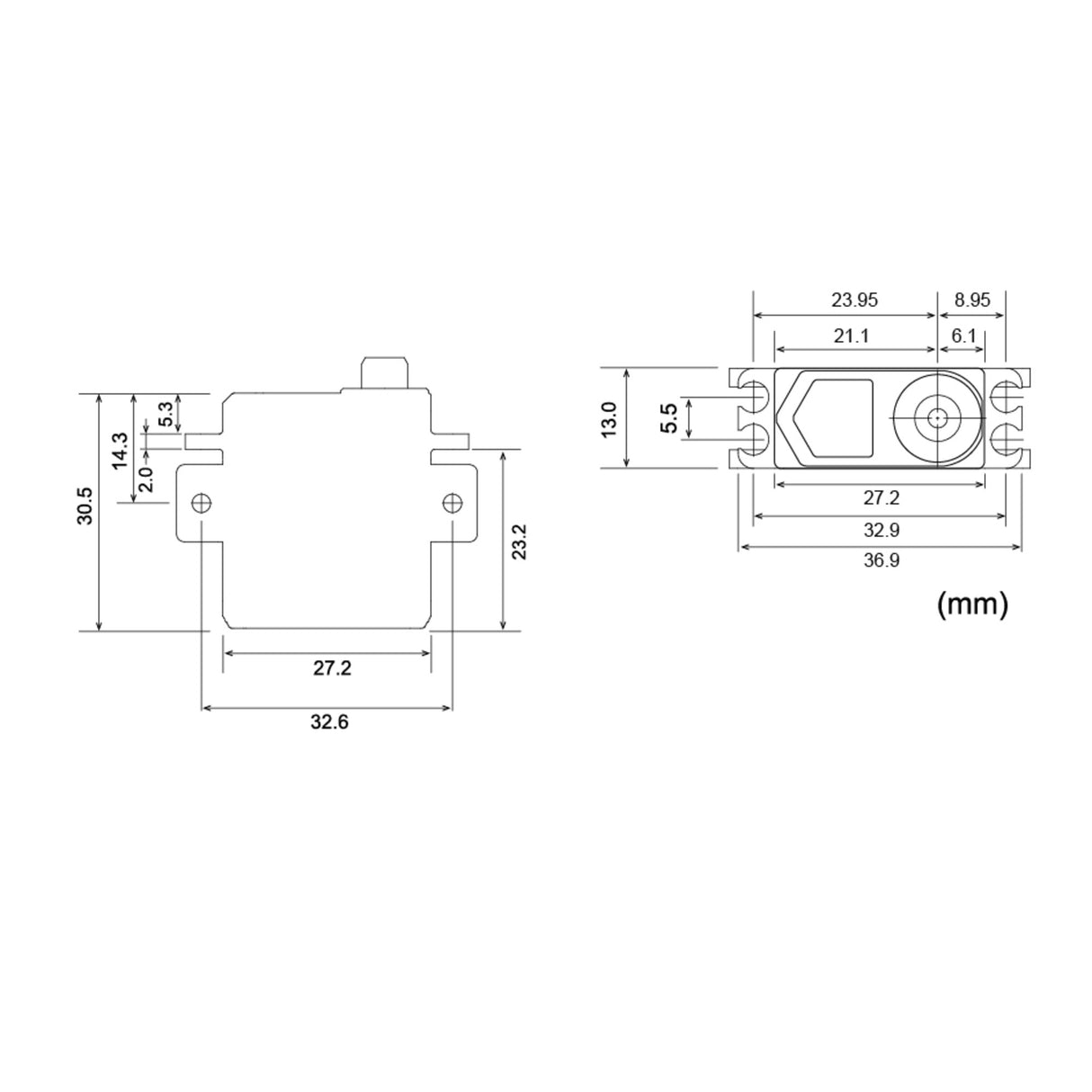

Dimensions (LxWxH):
1.07 x 0.51 x 1.20in. (27.2 x 13 x 30.5 mm)

Motor:
Brushless

Contents

1x BLS-CM600 Mini Brushless Servo
Horns
Mounting Hardware

Command Protocol

PWM, S.BUS, S.BUS2
Size

Mini
Dimensions

27.2×13×30.5mm
Circuit

Digital
Weight

28 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

6.7
Max Speed (sec/60°)

0.09
Spline

25T (Ø6mm)
Motor

Brushless
Gears

Metal
Case

Resin case
Bearings

Dual Ball Bearing
Gear Detail

Metal 1-4 gears. Metal final gear
