SKU: FUT05102732-3

S-A300 Standard Digital Servo PWM/S.BUS2 11kg 0.17s 4.8V - 7.4V

Max Torque

11.0kg

Max Speed

0.17s

Command Protocol

Command Protocol

PWM S.BUS S.BUS2

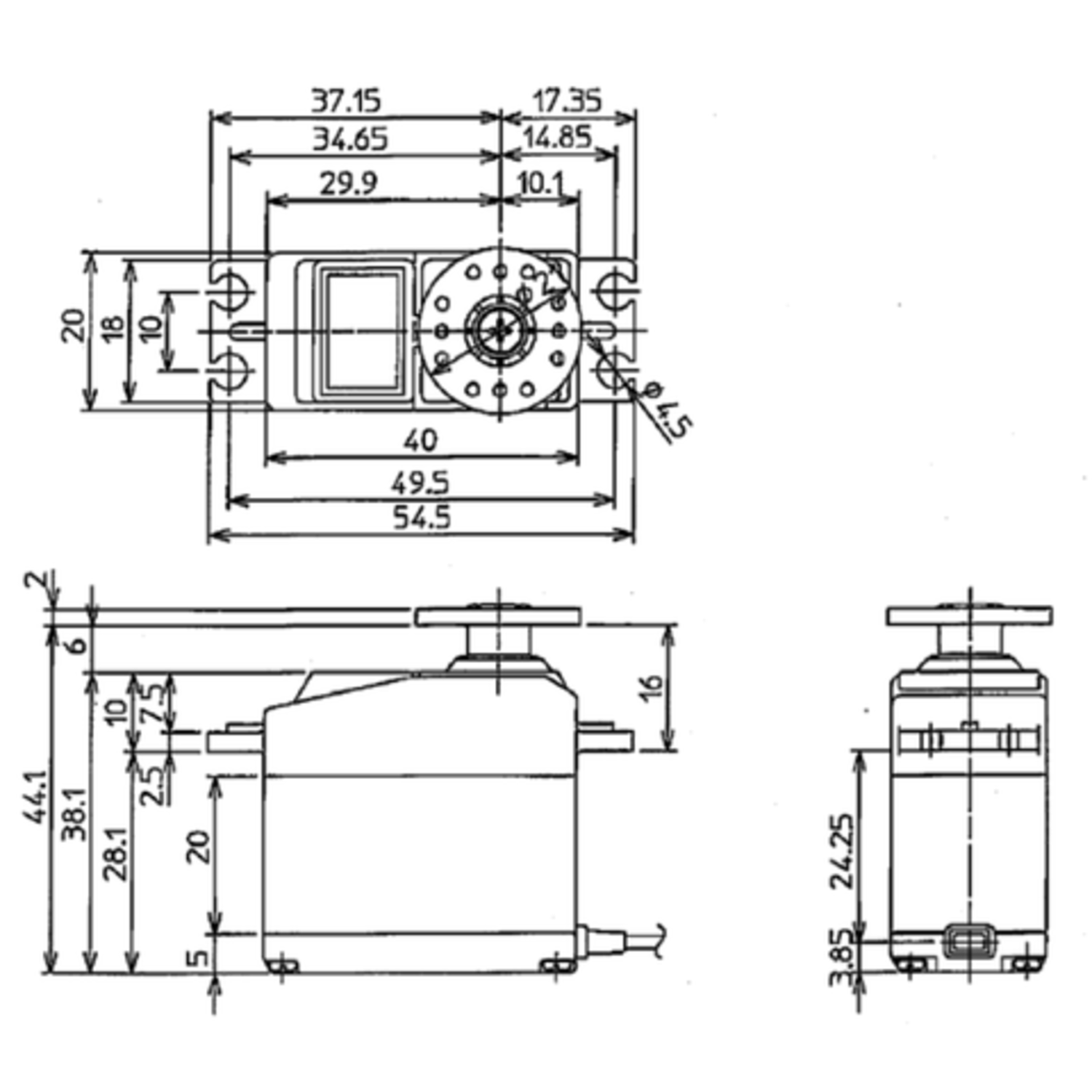

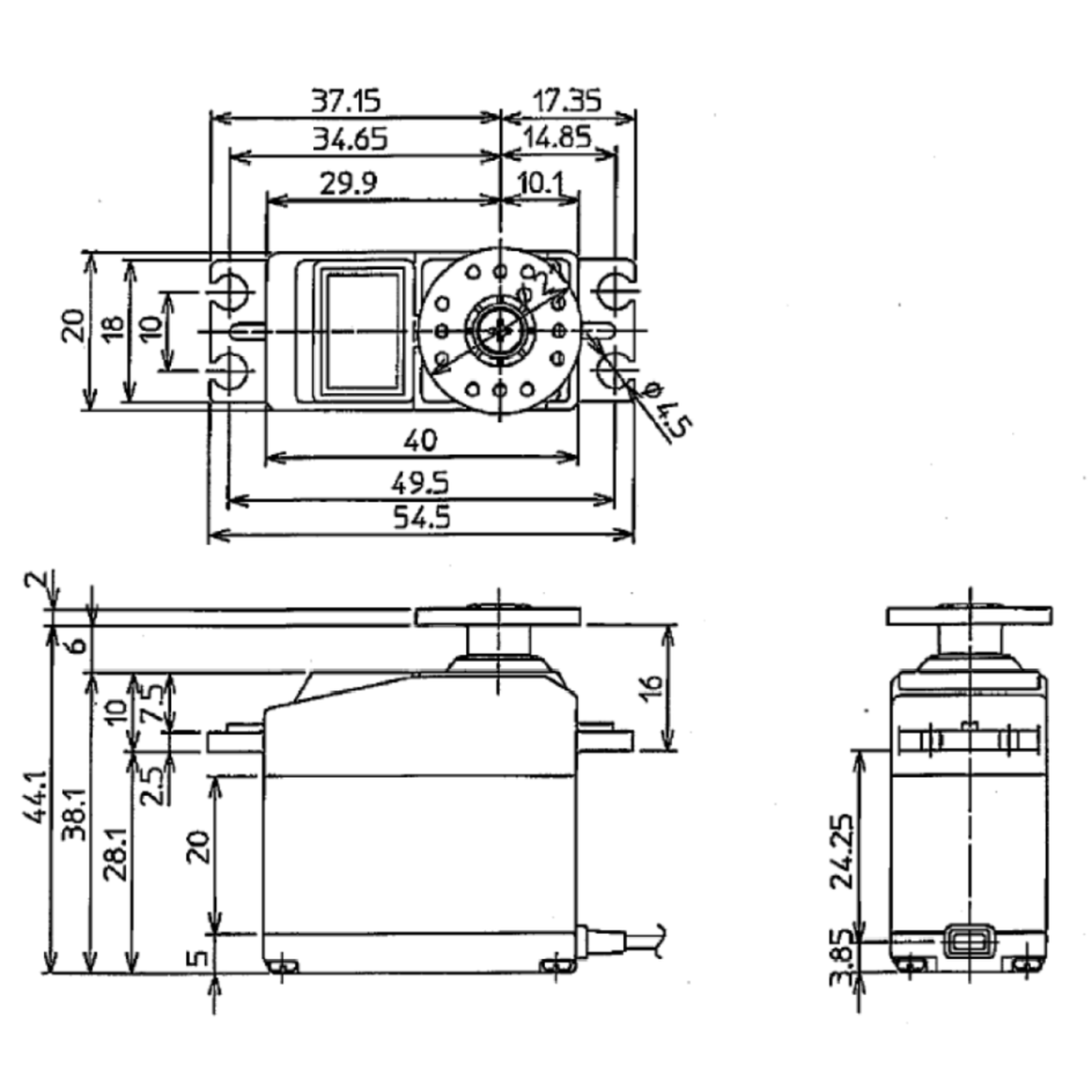

L×W×H

40×20×38.1mm

Weight

47 g

Voltage

4.8V - 7.4V

Gears

Metal

Spline

25T (Ø6mm)

£54⁹⁹

VAT included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

Explore more like this:

All Servos Compatible with PWM Compatible with S.BUS Compatible with S.BUS2 Standard Servos

S-A300

Digital coreless standard servo for aircraft. Supports S.BUS2

Command Protocol

PWM, S.BUS, S.BUS2
Size

Standard
Dimensions

40×20×38.1mm
Circuit

Digital
Weight

47 g
Voltage Range

4.8V - 7.4V
Max Torque (kg/cm)

11
Max Speed (sec/60°)

0.17
Spline

25T (Ø6mm)
Motor

Coreless
Gears

Metal
Gear Detail

Metal 2-3 stage gear. Aluminium final stage gear

S-A300 Standard Digital Servo PWM/S.BUS2 11kg 0.17s 4.8V - 7.4V

£54⁹⁹

Summary

Digital coreless standard servo for aircraft. Supports S.BUS2

Radio

N/A

Protocol

N/A

Command Protocol

PWM, S.BUS, S.BUS2

Incl. Battery

N/A

Incl. Receiver

N/A

Mode

N/A

Model Memory

N/A

Channels

N/A

Size

Standard

Dimensions (mm)

40×20×38.1mm

Circuit

Digital

Weight

47 g

Voltage Range

4.8V - 7.4V

Max Torque (kg/cm)

11

Max Speed (sec/60°)

0.17

Spline

25T (Ø6mm)

Motor

Coreless

Gears

Metal

Programmable

N/A

Dust/Water Resistance

N/A

Case

N/A

Bearings

N/A

Circuit Detail

N/A

Motor Detail

N/A

Gear Detail

Metal 2-3 stage gear. Aluminium final stage gear

Comes with

N/A
