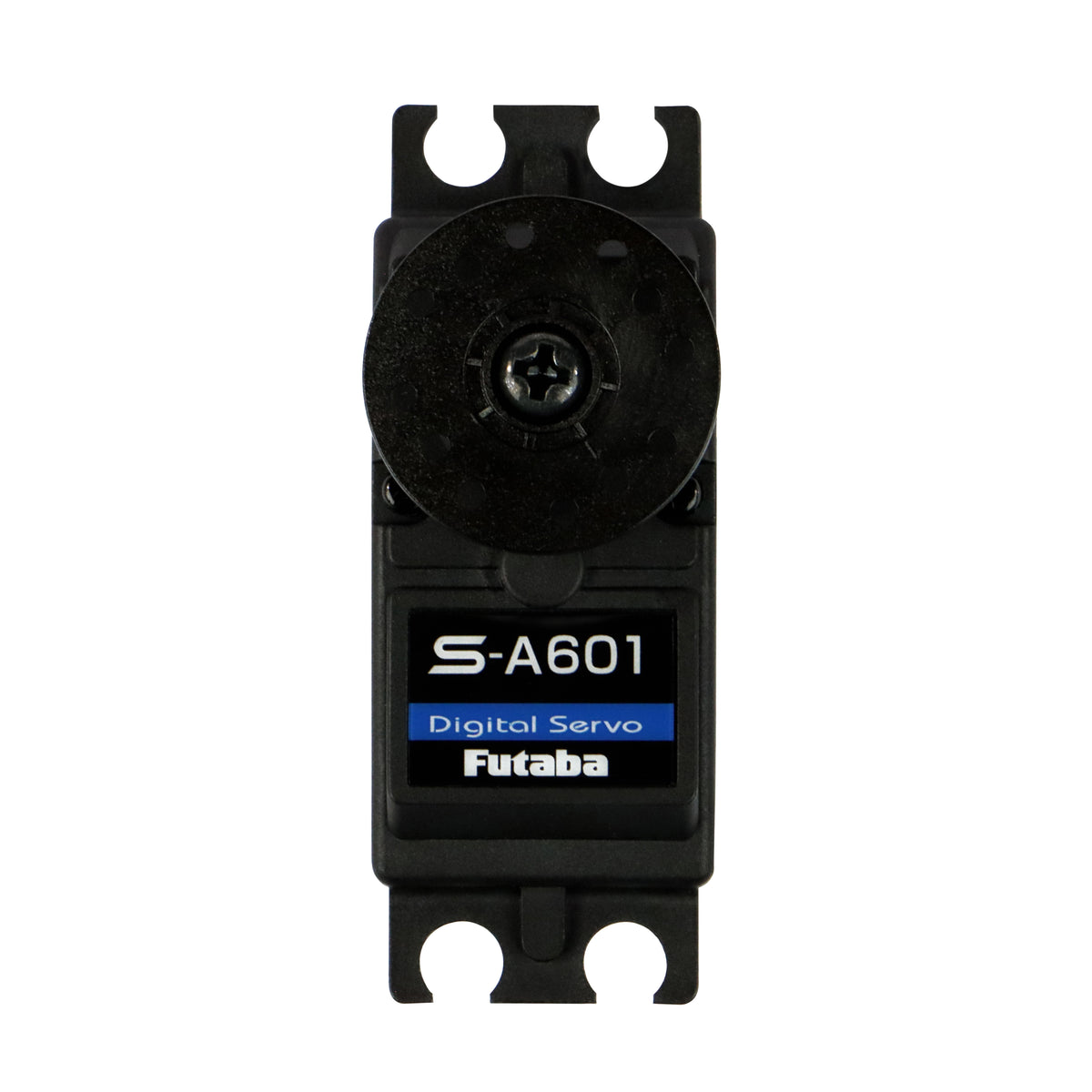

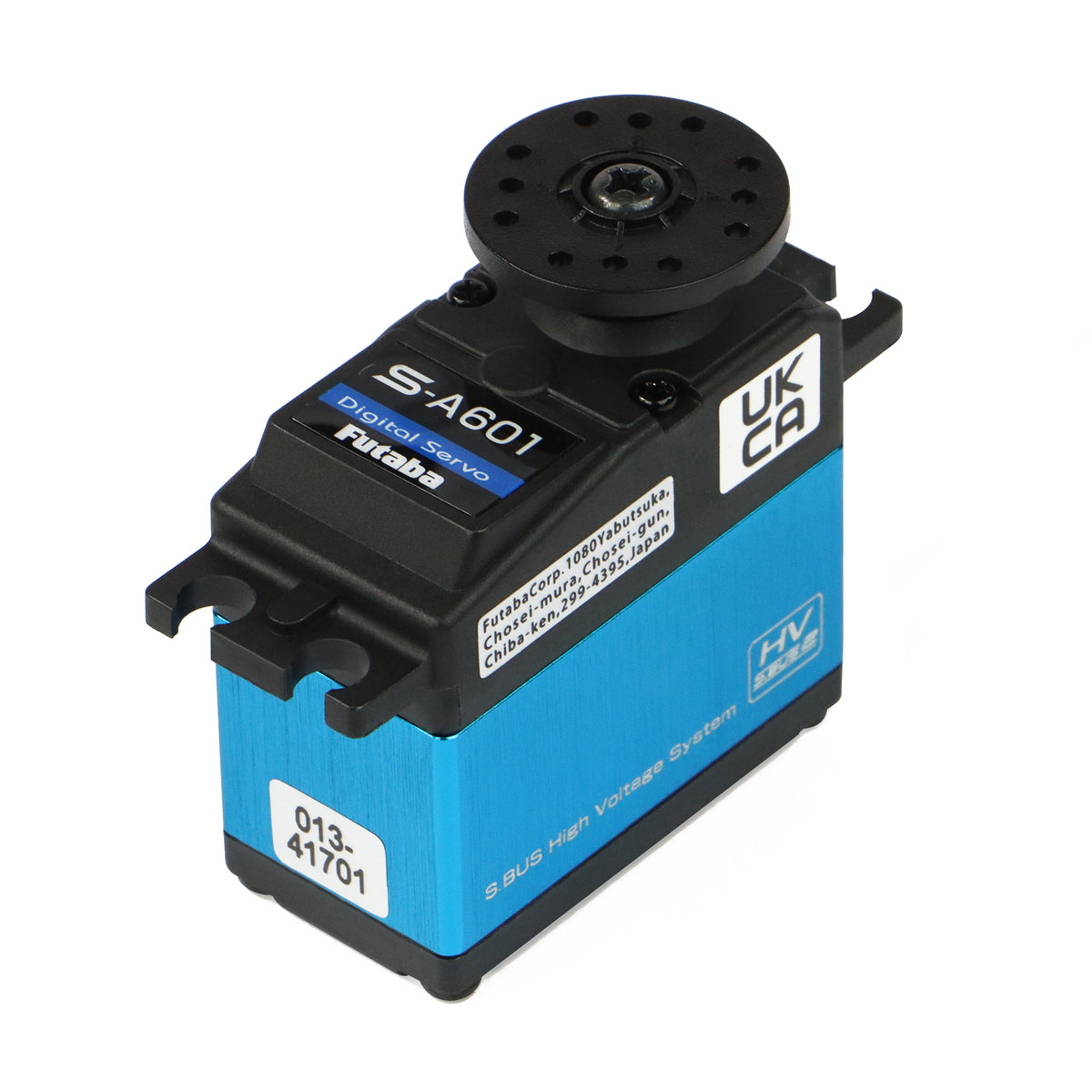

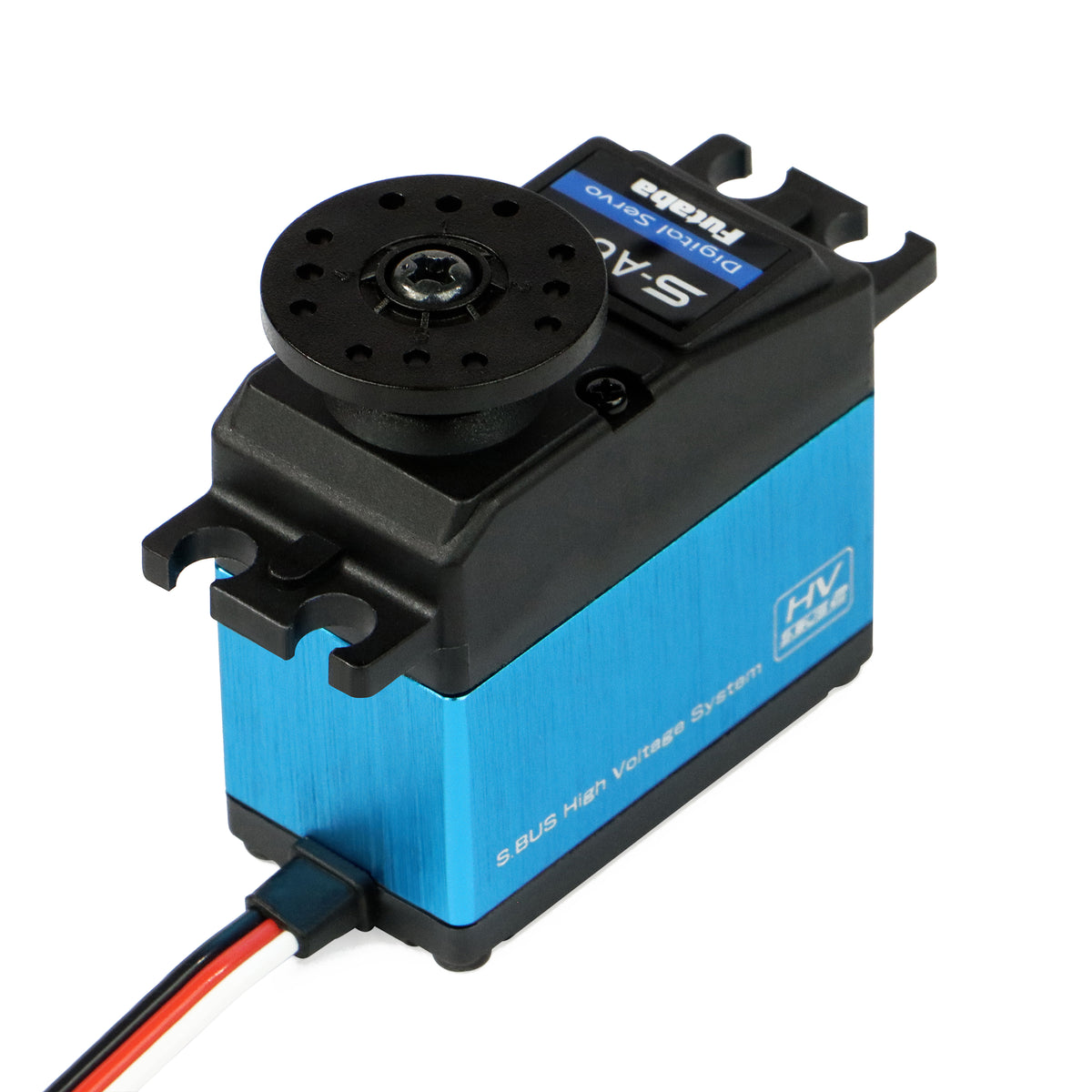

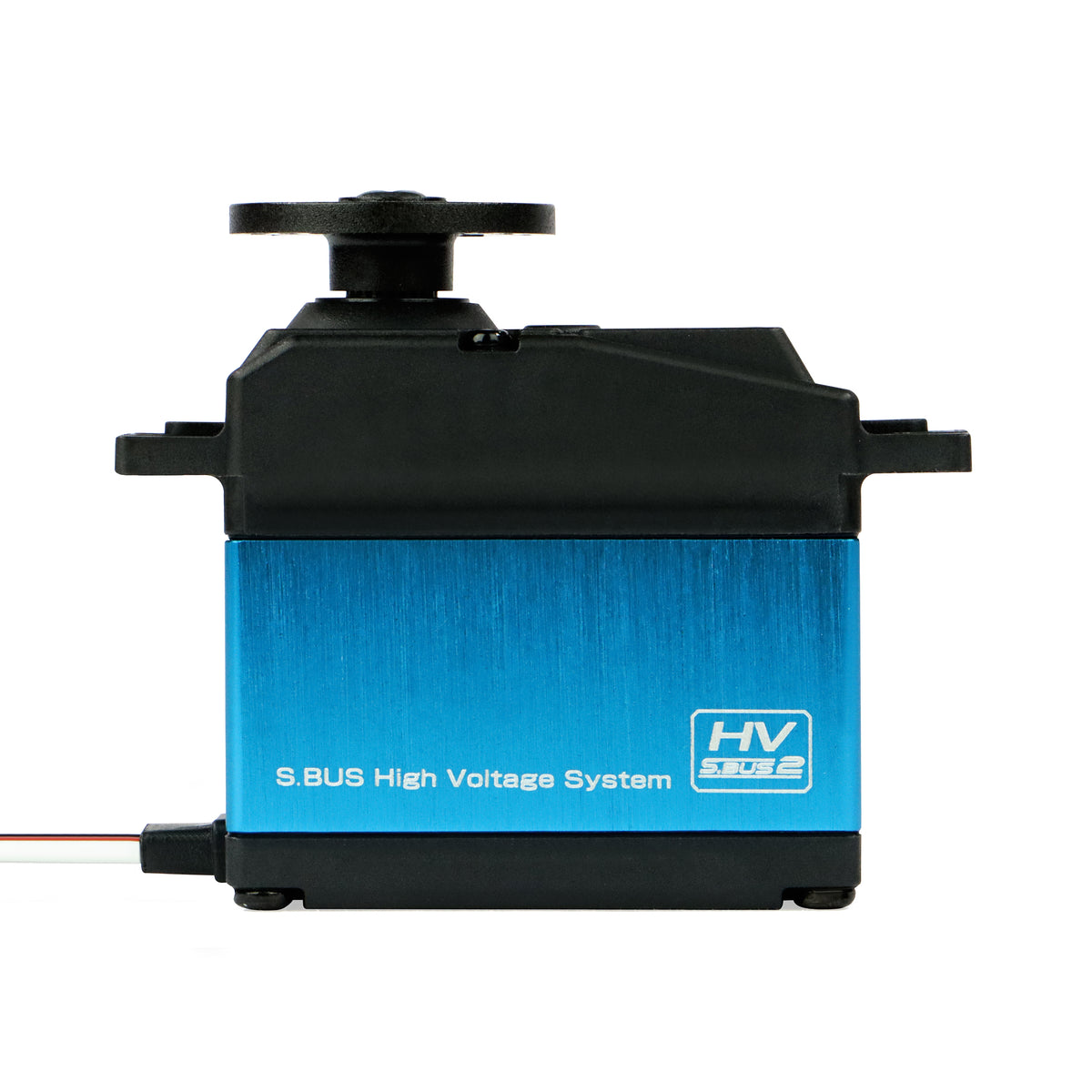

S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V

Directly replacing the hugely popular S9177SV for large-scale aircraft, the S-A601 delivers exceptional performance, offering the ideal blend of size, torque, cost and quality. It features dual ball bearings, metal gears and an anodised metal case centre.

With an incredible 41 kg.cm of torque at 7.4V the S-A601 offers, arguably, the perfect balance between, size, torque, cost and quality. Dual ball raced with metal gears and an anodised metal case centre, the 601 is programmable, supports S.Bus2 and features soft start technology. Favoured by pilots of large scale aircraft who demand a robust and responsive control system, the S-A601, with its S.Bus2 compatibility, allows easy programming, clean wiring integration and ultimate peace of mind.

Specification:

Speed at 6.6V (sec):	0.12
Speed at 7.4V (sec):	0.11
Torque at 6.6V (kg.cm):	36.8
Torque at 7.4V (kg.cm):	41.0
Spline (teeth):	25
Input Voltage (V):	4.8 to 7.4
