1 6
SKU: FUT05102761-3

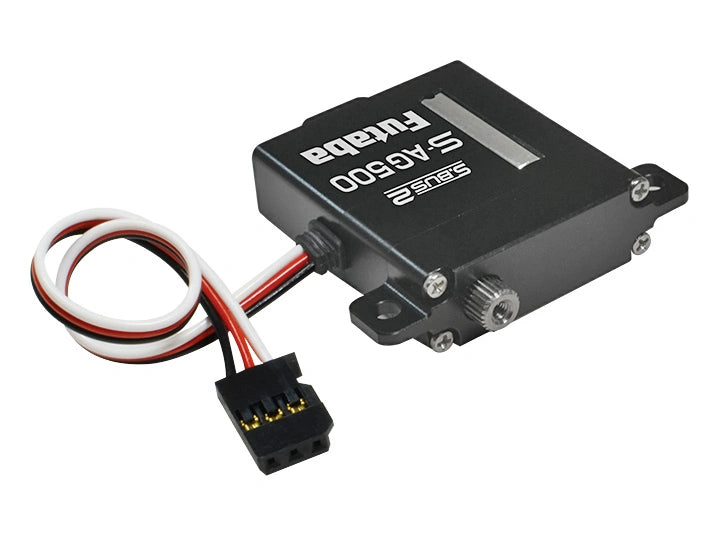

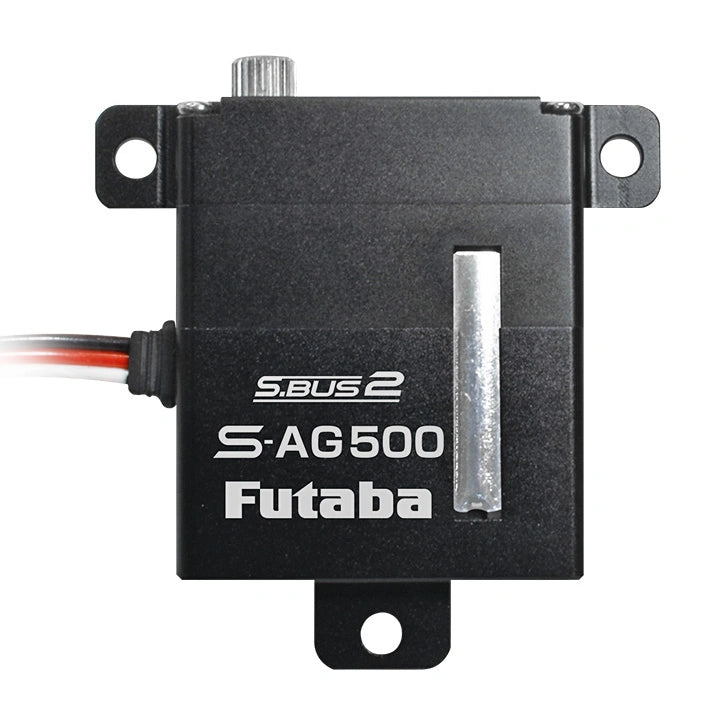

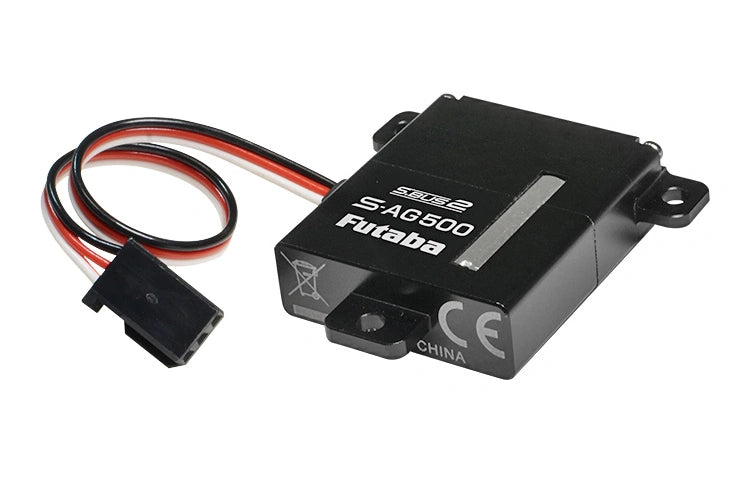

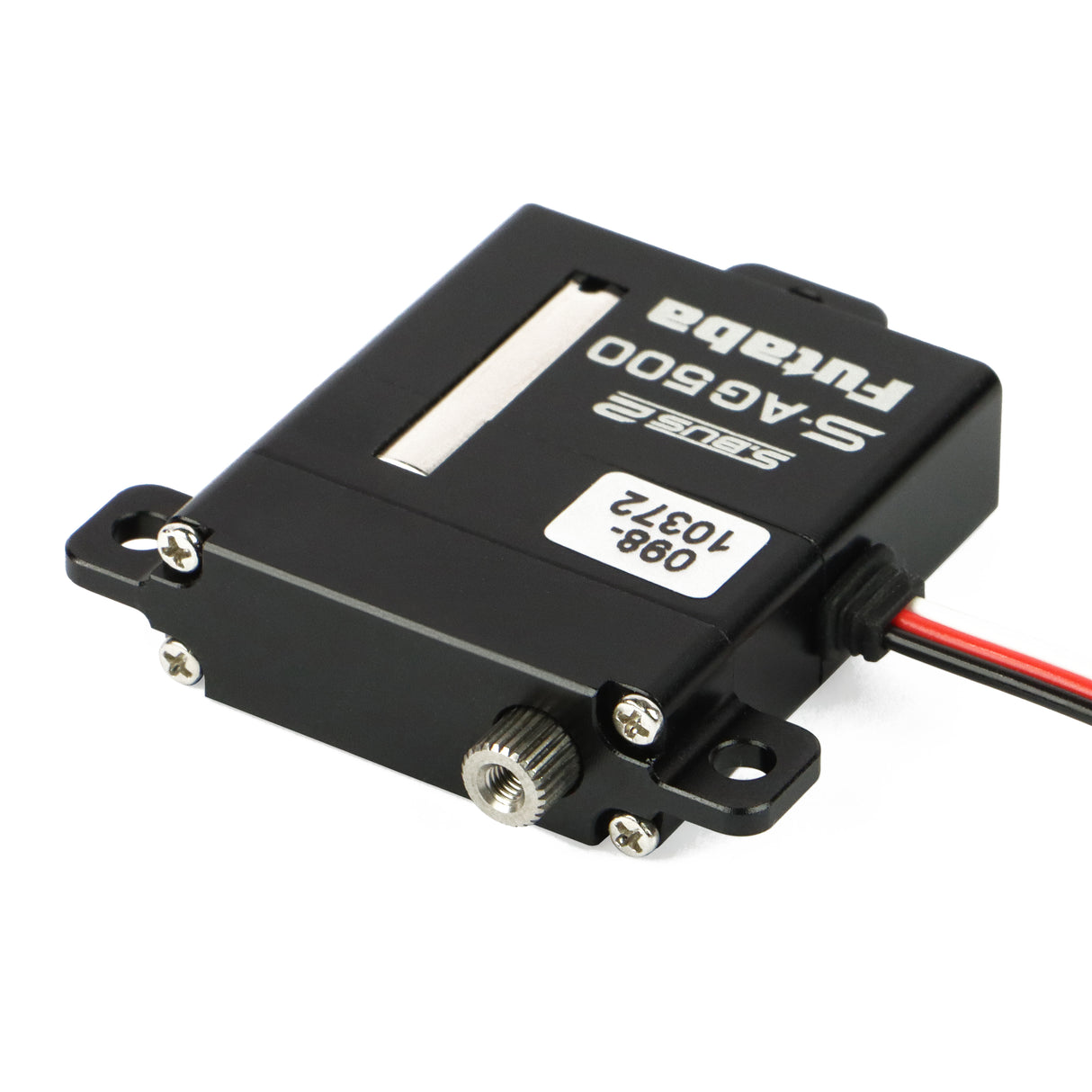

S-AG500 Corelss Slim Digital Servo PWM/S.Bus2 9.5kg 0.12s 6.0V - 7.4V

Max Torque Max Torque
9.5kg
Max Speed Max Speed
0.12s
Command Protocol Command Protocol
PWM S.BUS S.BUS2
Weight Weight
28 g
Voltage Range Voltage
6.0V - 7.4V
Gears Gears
Metal
Spline Spline
25T (Ø6mm)
£7499
Tax included

Your local stockist

Your local stockist will either already stock this product or will be able to get it delivered, usually by the next business day. Find your local Futaba stockist on LoveLocal.

S-AG500

An ideal blend of size, torque, cost and quality, Futaba's dual bearing, metal gear, slim wing servo is the solution to many a problem.

  • Command Protocol
    PWM, S.BUS, S.BUS2
  • Weight
    28 g
  • Voltage Range
    6.0V - 7.4V
  • Max Torque (kg/cm)
    9.5
  • Max Speed (sec/60°)
    0.12
  • Spline
    25T (Ø6mm)
  • Motor
    Coreless
  • Gears
    Metal
  • Programmable
    Yes
  • Case
    Aluminium
  • Bearings
    Dual Ball Bearing
  • Circuit Detail
    Digital
  • Motor Detail
    Coreless
  • Gear Detail
    Metal

Futaba's S-AG500 is a slim, coreless, digital servo designed for R/C aircraft and, specifically, thin wings and tight spaces. Offering an impressive balance between size, speed and torque, it punches well above its 28g weight with an impressively slender 10mm thickness, a speed of 0.12sec and a workmanlike torque of 9.5kg. Add metal gears, a durable aluminium case, S.Bus2 compatibility, dual ball bearings, plus a price that underpins affordability, and what you have here is nothing short of a very high-quality solution to many a problem.
